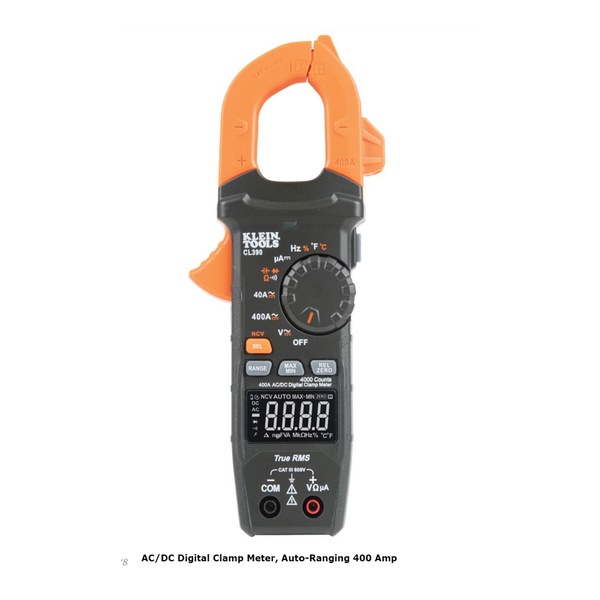

Klein Tools AC/DC Digital Clamp Meter 400 amp Auto Ranging
Klein Tools CL390 is an automatically ranging true root mean squared (TRMS) digital clamp meter.
It measures AC/DC current and NCVT via the clamp, as well as AC/DC voltage, DC microamps, resistance, continuity, frequency, capacitance and diodes via test leads, and temperature via a thermocouple probe.
It features a high visibility, reverse contrast LCD display that optimises visibility in both dark or bright ambient lighting.
Specifications
Type: AC/DC Current TRMS Clamp
Application: Measures both AC/DC current and NCVT via a clamp, as well as AC/DC voltage, DC microamp current, resistance, continuity, frequency, duty cycle, capacitance and tests diodes via the test leads, and temperature with a thermocouple
Special Features: Automatically Ranging True Root Mean Squared (TRMS) Measurement Technology for Accuracy; AC/DC Current Measurement; High Visibility Reverse Contrast LCD; NCVT
Material: ABS/Electronics
Batteries: 3 x AAA
Auto Shut Off: Yes
Jaw Size: 1.6" (4.1 cm)
Drop Protection: 6.6' (2 m)
Display: 4000 Count Reverse Contrast LCD
Functions: TRMS, AC/DC Current, NCVT, AC/DC Voltage, Resistance, DC Microamps, Frequency, Capacitance, Continuity, Duty Cycle, Diode Test and Temperature
Voltage: 600 V AC/DC
Frequency: 10 Hz to 60 kHz for 8 V to 220 V AC RMS
Current: 400 A AC/DC
Capacitance: 4000 F
Ohms (Resistance): 40 M
AC Voltage: 600 V
DC Voltage: 600 V
DC Polarity Indicator: Yes
DC Microamp: 200 A
Temperature Range: -40 F-1,832 F (-40 C-1,000 C)
Standard: CATIII 600V, Class 2, Double Insulation Safety Rating, CE Certified
Included: Clamp Meter; Carrying Case; Instructions; Test Leads; Thermocouple; Batteries
Overall Length: 8.45" (21.5 cm)
Overall Height: 1.5" (3.8 cm)
Overall Width: 3.5" (8.9 cm)
Weight: 11 oz (314 g)
Klein Tools AC/DC Digital Clamp Meter 400 amp Auto Ranging
Klein Tools AC/DC Digital Clamp Meter 400 amp Auto Ranging
Klein Tools CL390 is an automatically ranging true root mean squared (TRMS) digital clamp meter.
It measures AC/DC current and NCVT via the clamp, as well as AC/DC voltage, DC microamps, resistance, continuity, frequency, capacitance and diodes via test leads, and temperature via a thermocouple probe.
It features a high visibility, reverse contrast LCD display that optimises visibility in both dark or bright ambient lighting.
Specifications
Type: AC/DC Current TRMS Clamp
Application: Measures both AC/DC current and NCVT via a clamp, as well as AC/DC voltage, DC microamp current, resistance, continuity, frequency, duty cycle, capacitance and tests diodes via the test leads, and temperature with a thermocouple
Special Features: Automatically Ranging True Root Mean Squared (TRMS) Measurement Technology for Accuracy; AC/DC Current Measurement; High Visibility Reverse Contrast LCD; NCVT
Material: ABS/Electronics
Batteries: 3 x AAA
Auto Shut Off: Yes
Jaw Size: 1.6" (4.1 cm)
Drop Protection: 6.6' (2 m)
Display: 4000 Count Reverse Contrast LCD
Functions: TRMS, AC/DC Current, NCVT, AC/DC Voltage, Resistance, DC Microamps, Frequency, Capacitance, Continuity, Duty Cycle, Diode Test and Temperature
Voltage: 600 V AC/DC
Frequency: 10 Hz to 60 kHz for 8 V to 220 V AC RMS
Current: 400 A AC/DC
Capacitance: 4000 F
Ohms (Resistance): 40 M
AC Voltage: 600 V
DC Voltage: 600 V
DC Polarity Indicator: Yes
DC Microamp: 200 A
Temperature Range: -40 F-1,832 F (-40 C-1,000 C)
Standard: CATIII 600V, Class 2, Double Insulation Safety Rating, CE Certified
Included: Clamp Meter; Carrying Case; Instructions; Test Leads; Thermocouple; Batteries
Overall Length: 8.45" (21.5 cm)
Overall Height: 1.5" (3.8 cm)
Overall Width: 3.5" (8.9 cm)
Weight: 11 oz (314 g)
Non-contact voltage tester integrated into the clamp jaw
High-visibility reverse contrast LCD display for improved view ability in all ambient lighting conditions
Automatically ranging true root mean squared (TRMS) measurement technology for accuracy
Measures AC Current and NCVT via a clamp, as well as AC/DC voltage, resistance, frequency, DC micro-amp, capacitance, duty cycle, diode test and continuity via test-leads, and temperature with a thermocouple
Measures temperature with a K-Type thermocouple probe
Max/Min, Rel/Zero and Data Hold capability
Auto Power-Off after 10 minutes to conserve battery life
Includes a carrying case, test leads with CAT III/CAT IV safety caps, thermocouple, instructions and 3 x AAA batteries
Low-battery indicator and easily accessible battery compartment
Built to withstand a 6.6' (2 m) drop
CAT III 600 V, Class 2, Double insulation safety rating
Meets requirements for use in basic and controlled electromagnetic environments such as residential, office and light-industrial locations
