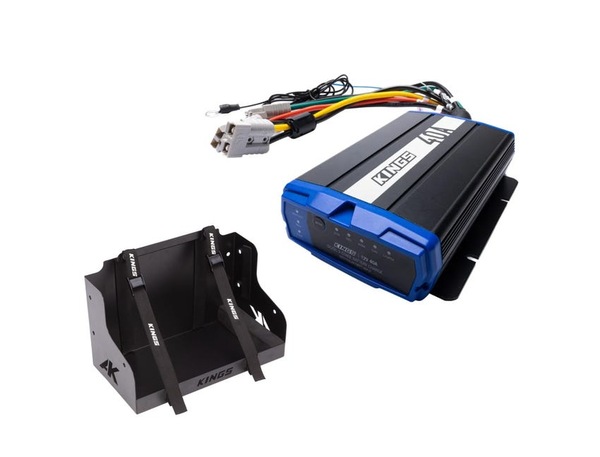

Kings 40A DCDC Charger MPPT Solar Regulator Lithium AGM+ Battery Tray Standard

Kings 40A DCDC Charger MPPT Solar Regulator Lithium AGM+ Battery Tray Standard

Price
$238.95
Collect 238 Everyday Rewards points
Log in to MyDeal to link your card
Shipping
$15.00 Australia-wide (per item)

24-48 hour dispatch
Quantity
Maximum item limit (50) has been reached.

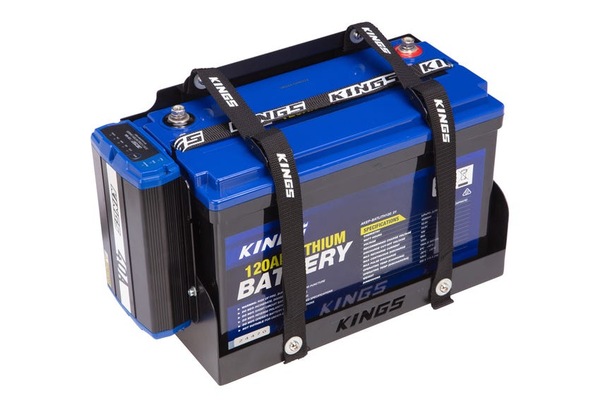

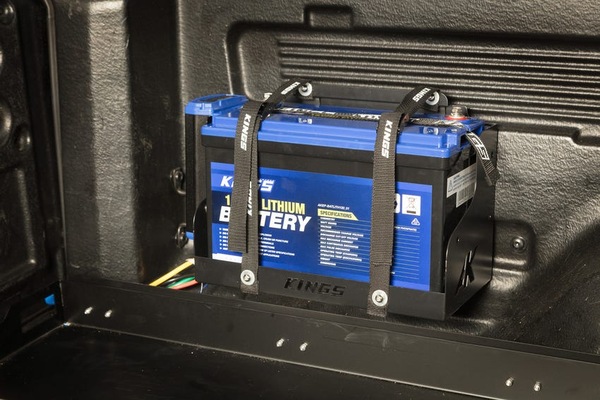

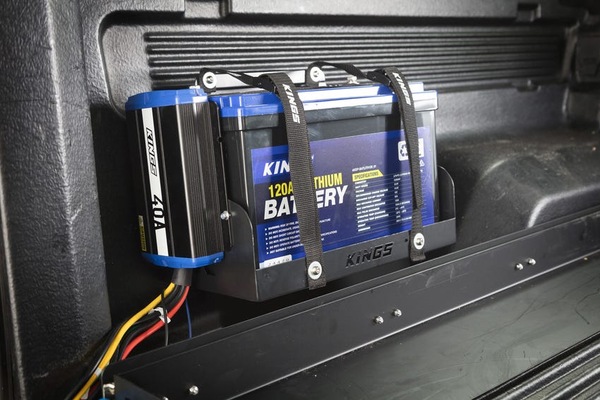

The Adventure Kings Battery Tray is designed to securely mount any standard sized Kings lithium or AGM battery up to 120Ah(up to 34 x 18 x 22cm). With the ability to securely mount your battery, you gain increased versatility in powering your equipment wherever your journey leads. Secure your battery to the wall or floor of your vehicle with ease using the Adventure Kings Battery Tray. The provided mounting hardware and pre-drilled holes ensure a safe set up,

• CHARGER, ISOLATOR + SOLAR REGULATOR ALL IN ONE CHARGING SOLUTION The Kings 40A DCDC Charger has a built in high-efficiency MPPT Solar Regulator that will track the maximum power point of a connected solar panel, so long as it has a minimum of 30W input. So you know you’re getting the most charge out of your panel no matter the conditions.

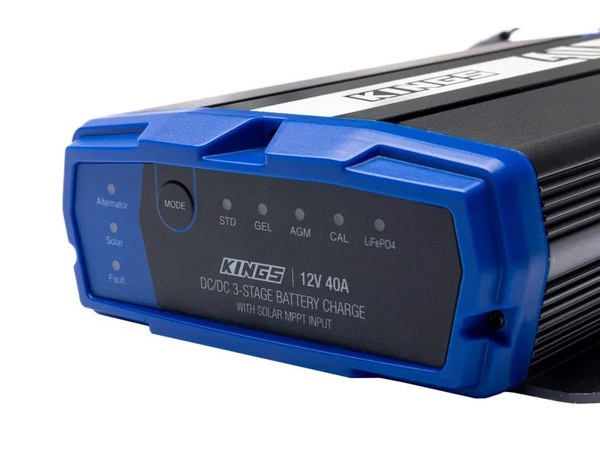

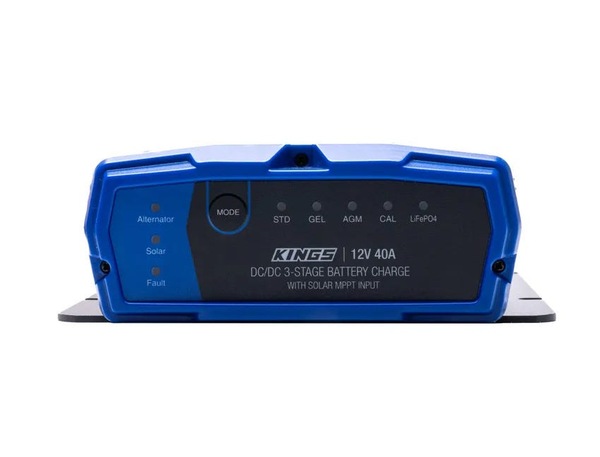

• With a specially programmed charge pattern specific to 12V Lithium (LiFePO4) batteries, plus the ability to easily switch to standard 12V lead acid, AGM, Gel or Calcium batteries with the press of a button, the Adventure Kings DCDC will work with just about any setup - and is easy to adapt to your future setups too! The Kings DC Charger also has an automatic lithium ‘wake’ feature where it will attempt to wake up or ‘jump start’ a lithium battery where the BMS has disconnected due to low voltage.

• BUILT IN MPPT SOLAR CONTROLLER WITH SOLAR PRIORITY CHARGING The Kings 40A DCDC Charger has built in high-efficiency MPPT Solar Regulator that will track the maximum power point of a connected solar panel, so long as it has a minimum of 30W input. So you know you’re getting the most charge out of your panel no matter the conditions.

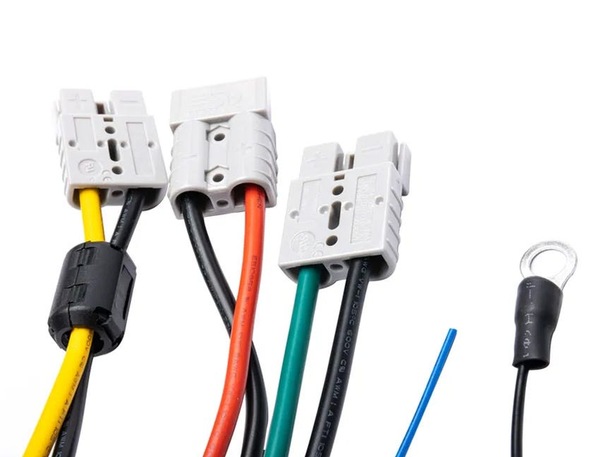

• Adventure Kings DC-DC Chargers can output their stated 40 Amps of charge even in extremely hot ambient temperatures of up to 50°C and internal temperatures around 80°C. There’s an internal temperature sensor that monitors the circuit board and electronics to protect and regulate the output of the automatic 5-stage current derating - plus there's the 2m long temp sensor with ring terminal, designed to mount to your battery highly accurate charge compensation.

BATTERY TRAY TO SUIT STANDARD BATTERY

SUITABLE FOR STANDARD BATTERY SIZES UP TO 120AH 34 x 18 x 22cm
designed to securely mount any standard sized Kings lithium or AGM battery up to 120Ah.


Maximum Battery Dimensions 34 x 18 x 22cm (LxWxH)
Tray Dimensions 34.5 x 18.5 x 24.3cm (LxWxH)
Material 1.2mm Powder Coated Steel
Accessories Foam Spacer Block for smaller batteries
DCDC Mounts Suits Adventure Kings 25A and 40A DCDC
Included Hardware X4 M8 mounting bolts and Nyloc nuts
X4 M4 DCDC Charger mounting bolts and nuts

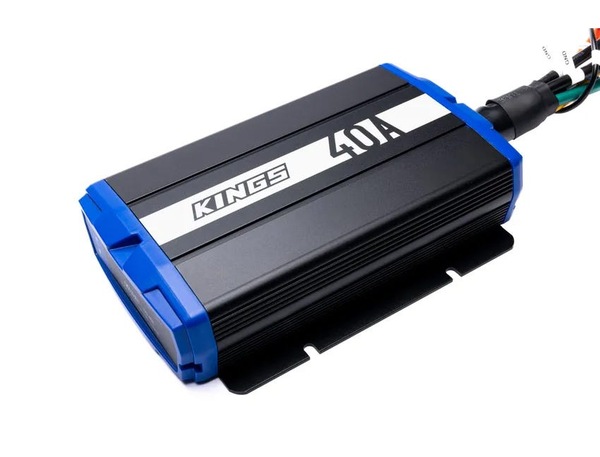

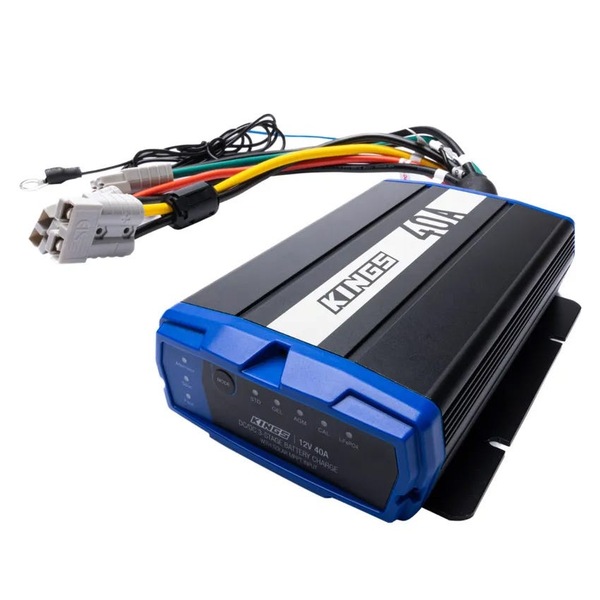

KINGS 40A DCDC CHARGER





The Kings 40A DCDC Charger has built in high-efficiency MPPT Solar Regulator


Max. Continuous Charging Current 40A
Max. Output Power 500W
Max. Input Current 47A
Vehicle Input Working Voltage Range (12V) 11.8 - 18V
Vehicle Input Working Voltage Range (24V) 23.6 - 32V
Min. Input start-up Voltage - Vehicle 10V to recognise battery (12V to start charging)
Solar Input Range 10 - 32V (Minimum 12V to start)
Vehicle Input Working Voltage Range (Ign wire NOT fitted) 12.8 - 18V
Min. Input start-up Voltage - Vehicle (Ign Wire NOT fitted) 13.8V
Min. Aux Battery Voltage (Lithium) 0V (Wake Function)
Min. Aux Battery Voltage (Lead Acid) 4V
Idle Current Draw 15mA
Operating Temperature -20°C to 80°C (with automatic 5-stage current derating)
Dimensions (LxWxH) 191mm x 131mm x 47mm
Weight ~1.3kg
Temperature Compensation Yes ±18mV/°C
Temperature Sensor(s) Yes, internal + external
Housing Powder coated aluminium
Battery Chemistry Selection Yes – Lithium (LiFePO4), AGM, wet lead acid, gel, calcium
Fuses required Yes – not supplied (50A Suggested)
IP Rating IP66
Built-in Protections Yes - Over Voltage, Reverse Polarity, Over-Temperature Protection

MPN: SC-CO-DC40A-TRAYSTD
