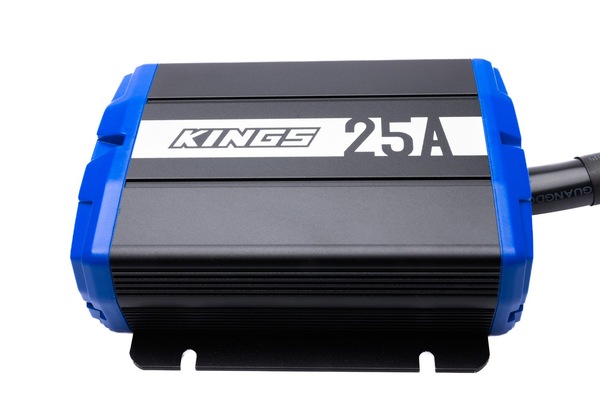

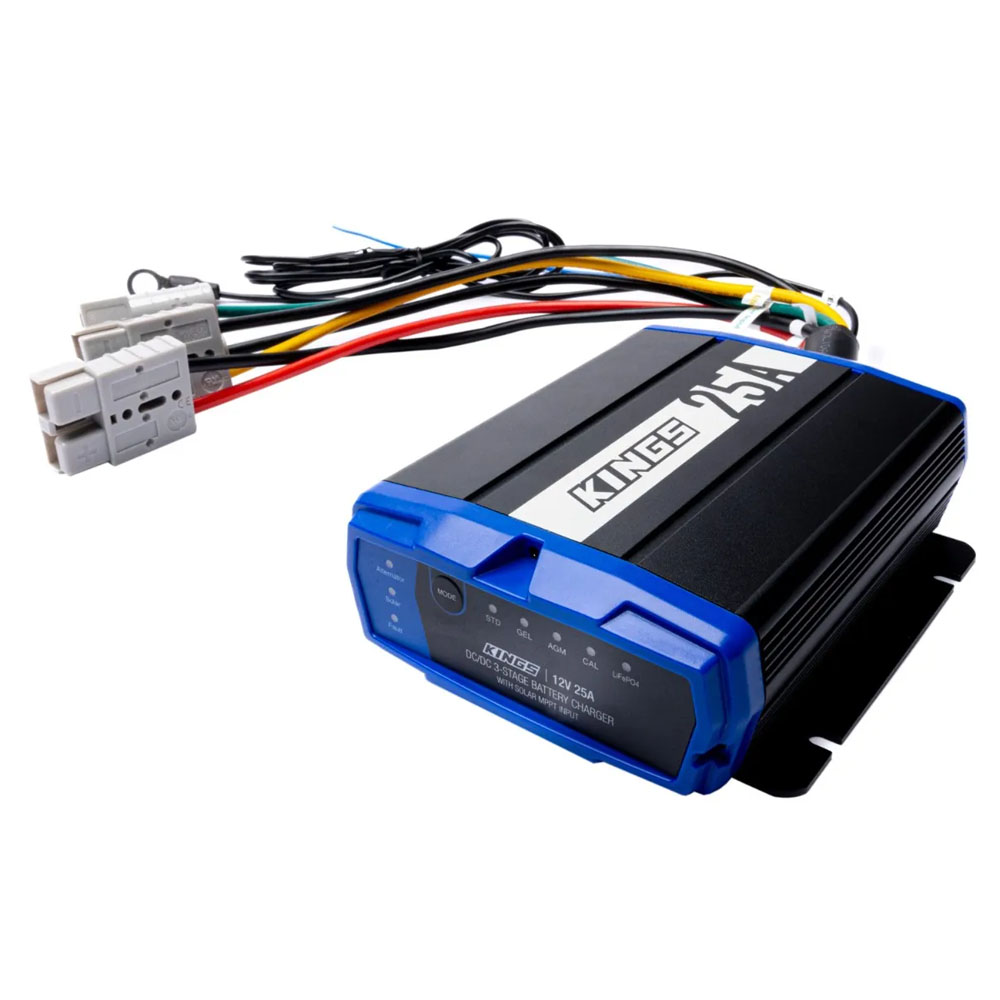

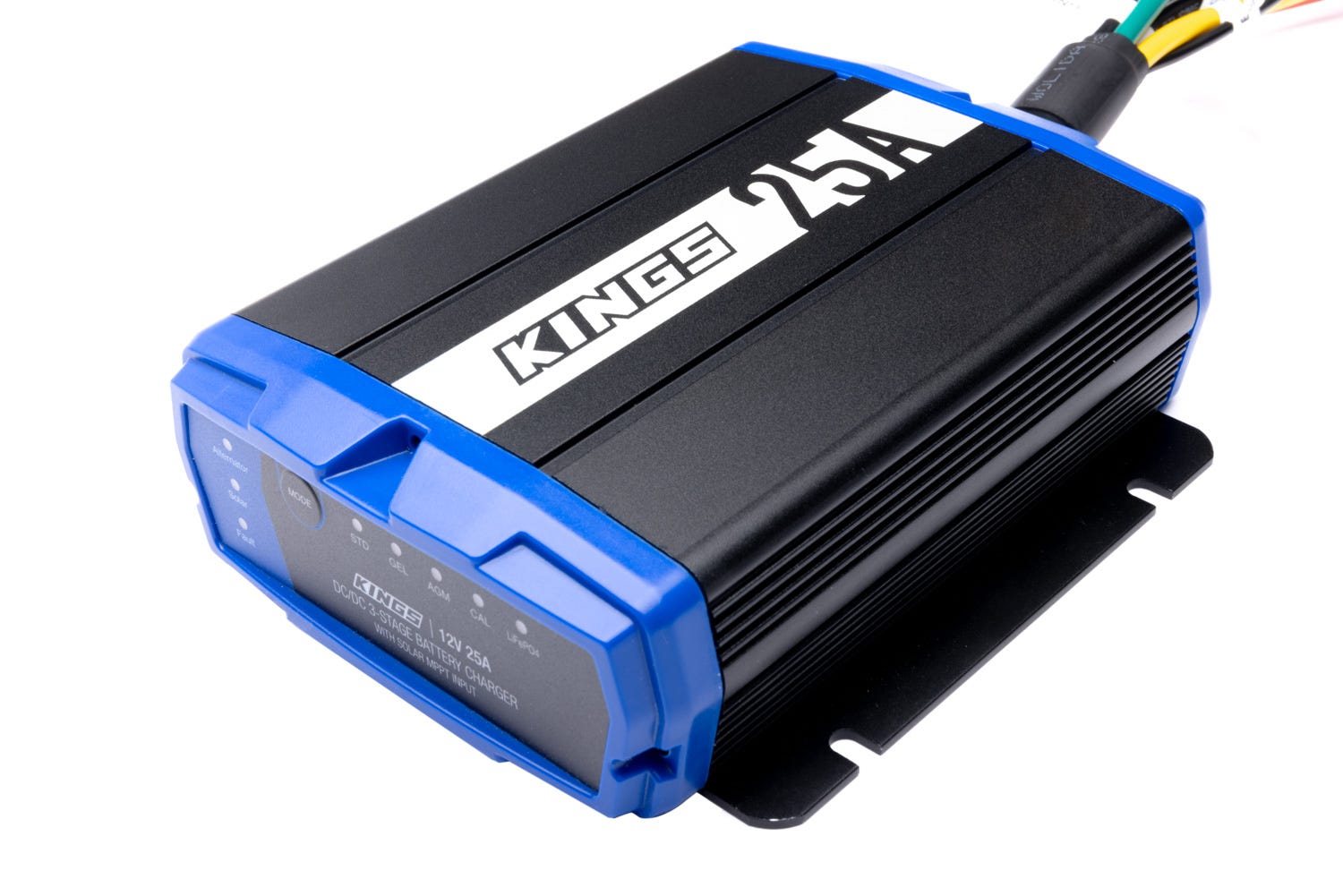

Kings 25A DCDC Charger - Quick Connect Plugs - MPPT Solar Regulator- Lithium Compatible - 12/24V Input - IP66 Rating
2x

Kings 25A DCDC Charger - Quick Connect Plugs - MPPT Solar Regulator- Lithium Compatible - 12/24V Input - IP66 Rating

Price
$129
Collect 258 Everyday Rewards points
2x points on every order when you spend $100+
Ends 11:59pm 26/03/2025. Exclusions & T&Cs apply
Log in to MyDeal to link your card
Shipping
$10.00 Australia-wide (per item)

24-48 hour dispatch
Quantity
Maximum item limit (47) has been reached.

25 Amp Multi-Stage Battery Charger. With a specially programmed charge pattern specific to 12V Lithium (LiFePO4) batteries, plus the ability to easily switch to standard 12V lead acid, AGM, Gel or Calcium batteries with the press of a button, the Adventure Kings DCDC will work with just about any setup - and is easy to adapt to your future setups too! The Kings DC Charger also has an automatic lithium ‘wake’ feature where it will attempt to wake up or ‘jump start’ a lithium battery where the BMS has disconnected due to low voltage.

• Built-in MPPT Solar Regulator with Solar Priority Charging. The Kings 25A DCDC Charger has a built in high-efficiency MPPT Solar Regulator that will track the maximum power point of a connected solar panel, so long as it has a minimum of 15W input. So you know you’re getting the most charge out of your panel no matter the conditions.

• Push Button Battery Type Selection for Lithium or AGM. With a specially programmed charge pattern specific to 12V Lithium (LiFePO4) batteries, plus the ability to easily switch to standard 12V lead acid, AGM, Gel or Calcium batteries with the press of a button, the Adventure Kings DCDC will work with just about any setup - and is easy to adapt to your future setups too! The Kings DC Charger also has an automatic lithium ‘wake’ feature where it will attempt to wake up or ‘jump start’ a lithium battery where the BMS has disconnected due to low voltage.

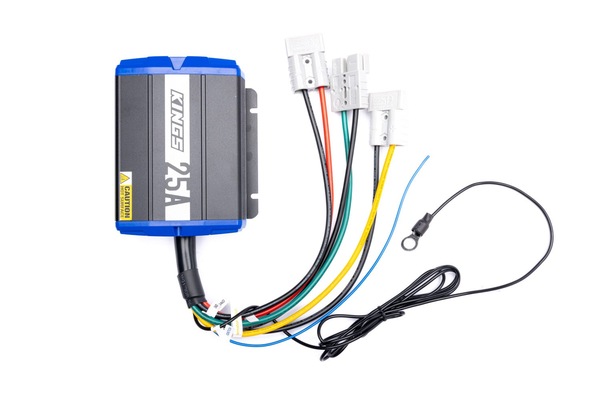

• Quick Connect Plugs make wiring / install fast and easy. Connecting your DCDC charger has never been easier - simply connect up the input from your starter battery, the output to your auxiliary battery and then connect solar panel in seconds all thanks to the quick connect plugs. The 25A Charger along with a Kings 50A Wiring Kit is the perfect combo for an easy plug and play install!

• 12/24V input ideal for 4WDs, Caravans, Boats, Trucks, Camper Trailers, Campervans & More!

Kings 25A DCDC Charger

MPPT Solar Regulator| Lithium Compatible | 12/24V Input | IP66 Rating


The best way to have a dual battery system in your vehicle.
The DCDC Charger has built in MPPT Solar Regulator that will track the maximum power point of a connected solar panel, at a minimum of 15W input.
At night the charger will pull only from your alternator.
When you turn off your vehicle, the DCDC will automatically swap over to solar charging.
If you're driving in the sun with both alternator and solar input, the DCDC will automatically prioritise solar input once it reaches the changeover threshold of 200W of solar power input.

Max. Continuous Charging Current 25A
Max. Output Power 300W
Max. Input Current 27A
Vehicle Input Working Voltage Range (12V) 11.8 - 18V
Vehicle Input Working Voltage Range (24V) 23.6 - 32V
Min. Input start-up Voltage - Vehicle 10V to recognise battery (12V to start charging)
Solar Input Range 10 - 32V
Vehicle Input Working Voltage Range (Ign wire NOT fitted) 12.8 - 16V
Min. Input start-up Voltage - Vehicle (Ign Wire NOT fitted) 13.8V
Min. Aux Battery Voltage (Lithium) 0V (Wake Function)
Min. Aux Battery Voltage (Lead Acid) 4V
Idle Current Draw 15mA
Operating Temperature -20°C to 80°C

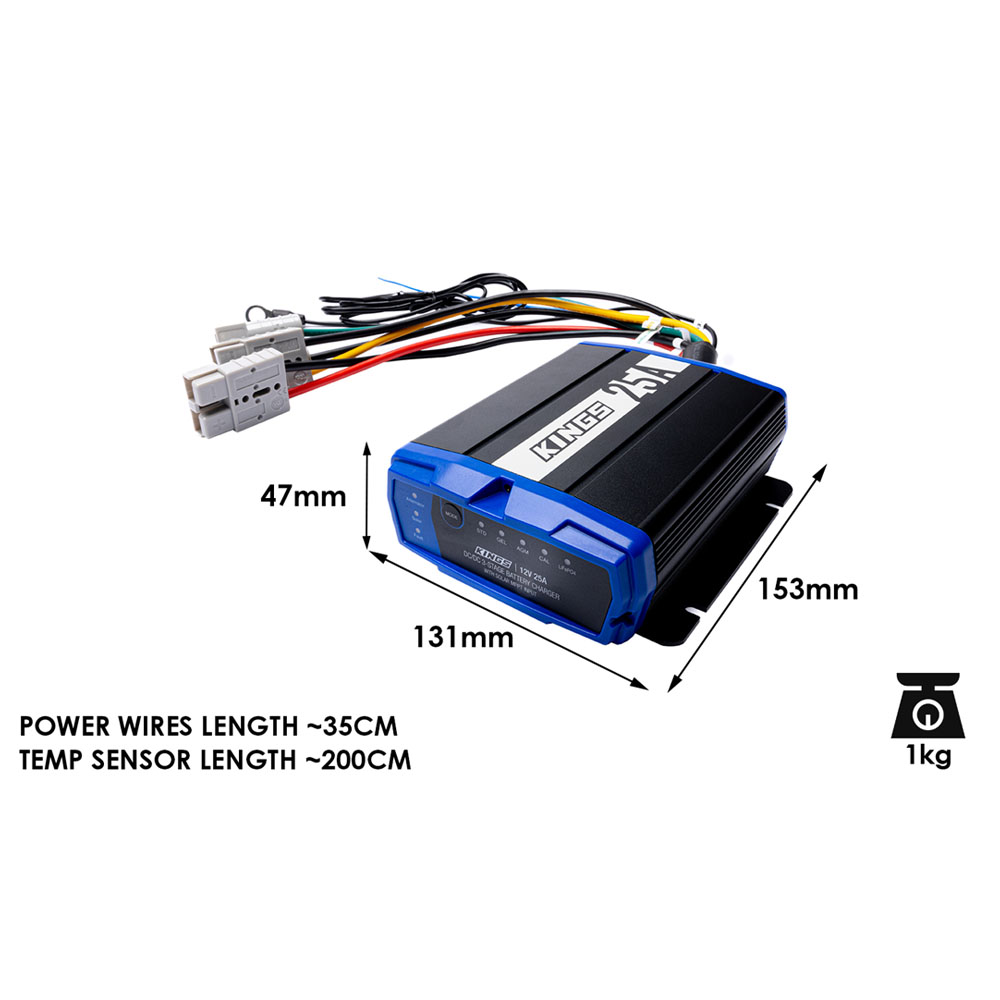

Dimensions (LxWxH) 151mm x 121mm x 44mm
Weight ~1kg
Temperature Compensation Yes ±18mV/°C
Temperature Sensor(s) Yes, internal + external with M8 ring terminal for accurate battery temperature
Housing Powder coated aluminium

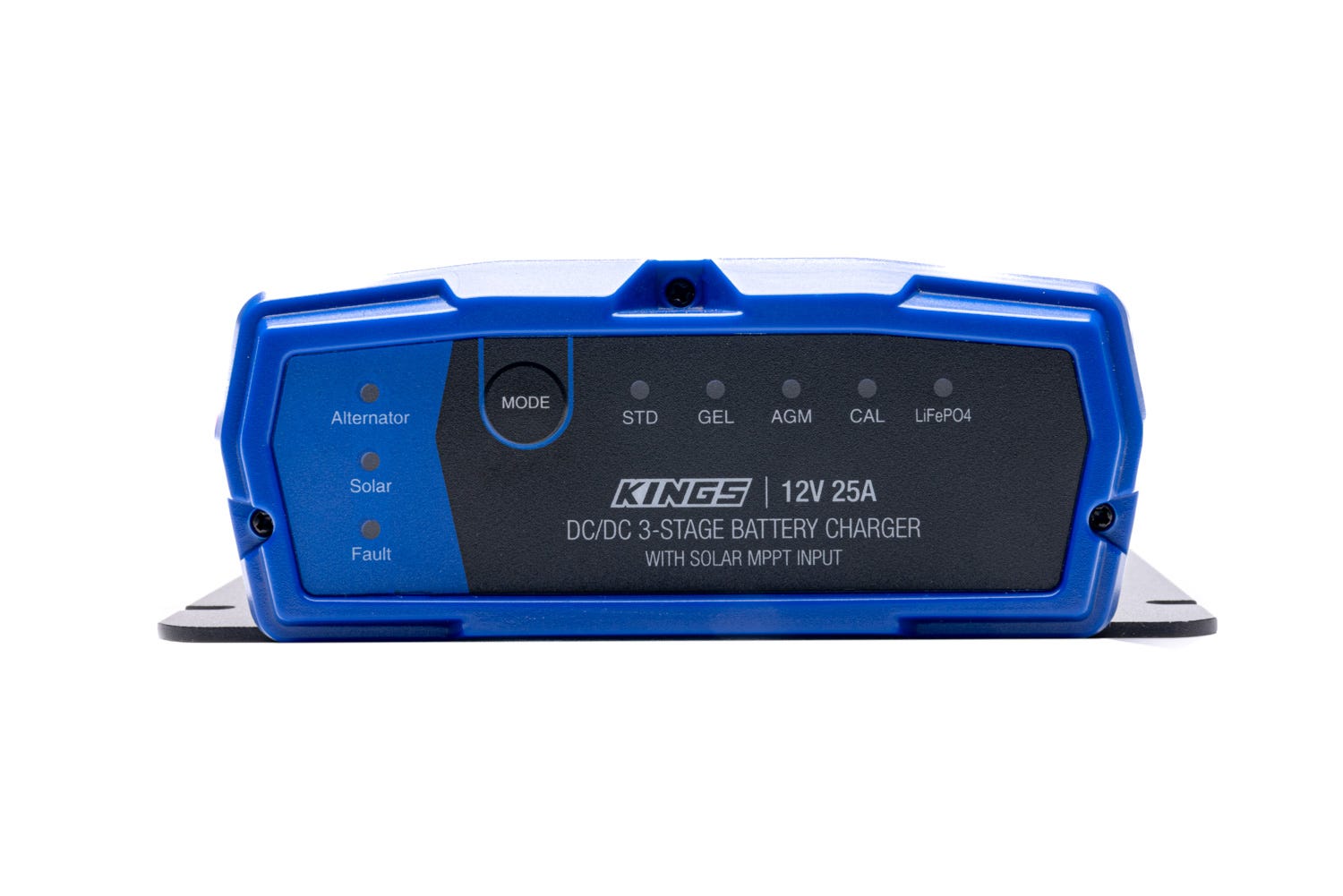

LED Indicator lights Yes – for connection, charging status and errors
Battery Chemistry Selection Yes – Lithium (LiFePO4), AGM, wet lead acid, gel, calcium
Fuses required Yes – not supplied (50A Suggested)
IP Rating IP66
Built-in Protections Yes - Over Voltage, Reverse Polarity, Over-Temperature Protection

GTIN: 660989714116
