Kingray MHU35FS 35dB LTE 4G Filtering UHF Weatherproof Masthead Amplifier
3x

Kingray MHU35FS 35dB LTE 4G Filtering UHF Weatherproof Masthead Amplifier

Hurry! 4 items left!
Price
$109.89
Collect 327 Everyday Rewards points
Score 3x points on every order
Ends 11:59pm 03/12/2024. Exclusions & T&Cs apply
Log in to MyDeal to link your card
Shipping
Free Shipping

Quantity
Maximum item limit (4) has been reached.


UHF Masthead Amplifier with 35dB Gain, Fully Shielded Housing, Separate or Combined input with 4G/LTE filtering

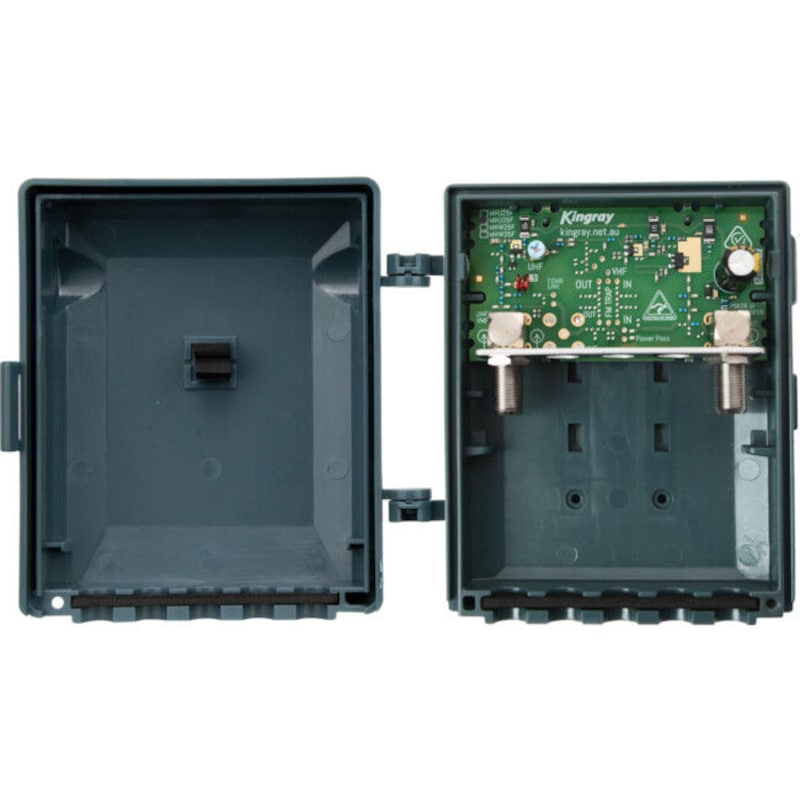

  • The MHU35FS is a UHF TV masthead amplifier, enclosed in a fully shield die-cast housing, with the capability to diplex VHF TV signals, either from combined or separate VHF and UHF antennas.
  • The Kingray Masthead range includes both wideband and VHF or UHF only models & with UHF frequencies above 694 MHz filtered, 4G/LTE transmissions are filtered out.
  • In addition to the 4G/LTE filtering, most wideband models include low band filtering to eliminate all services below 174 MHz. This amplifier also has the ability to allow FM radio signals to be passed through.
  • The masthead is powered remotely via a Kingray PSK06 or PSK08 series power supply (sold separately).

Features

  • Frequency Range 174-230 MHz & 520-694 MHz
  • 35dB UHF Maximum Gain
  • 15dB Gain Control for UHF
  • Separate VHF & UHF Inputs or Combined Input
  • UHF Amplifier with VHF Diplexing
  • FM Radio 88-108 MHz Pass Through Selectable
  • 4G/LTE Filtering
  • Fully Shielded Die-cast Housing
  • Weatherproof Housing
  • High Output Figure of 108dB IMR3 (DIN45004B)
  • Connectors: F-Type
  • Power Consumption: 80mA
  • Suitable Power Supply: PSK06 Series or PSK08 Series

Specifications:

  • The NEW Kingray Edge series of masthead amplifiers hasbeen engineered to provide a future proof solution with switchable LTE/4G filtering to maximise interference rejection.
  • The Edge series features links allowing the amplifier to be configured to best suit the installation now and in the future.
  • The range includes both wideband and UHF only models used to amplify the whole UHF band or alternatively by re-positioning the links, all services above 694 MHz are filtered, blocking future LTE transmissions.
  • In addition to LTE filtering some wideband models in the Edge series include user selectable low band filtering to eliminate all services below 174 MHz.
  • The Edge series is designed to meet the needs of the television reception industry now and into the future.

Model

Inputs

Termination

Shielded

Band

Max.
Gain

Gain
controls

Pager
filter

FM
filter

Band 1
VHF filter

LTE
filter

MHW25GE

1

S&S



VHF/UHF

25

1





MHW25F

2

F



VHF/UHF

25

2

MHW25FS

2

F

VHF/UHF

25

2

MHW25FE

1

F



VHF/UHF

25

1



MHW25FSE

1

F

VHF/UHF

25

1



MHW35G

2

S&S



VHF/UHF

35

2

MHW35F

2

F



VHF/UHF

35

2

MHW35FS

2

F

VHF/UHF

35

2

MHW43FS

2

F

VHF/UHF

43

2

MHU25GE

2

S&S



UHF

25

1







MHU25F

2

F



UHF

25

1







MHU25FS

2

F

UHF

25

1







MHU35G

2

S&S



UHF

35

1







MHU35F

2

F



UHF

35

1







MHU35FS

2

F

UHF

35

1







MHU43FS

2

F

UHF

43

1








GTIN: 9319493230612
