The MHW35F is a VHF/UHF masthead amplifier with the capability to amplify signals either from a combined or separate VHF or UHF antenna; it has F connections is sheilded and is part of the Kingray Edge Series range.
The Kingray Edge series has been engineered to provide a future proof solution with LTE/4G filtering to maximise interference rejection.
The range includes both wideband and UHF only models, allservices above 694 MHz are filtered, rejecting LTE transmissions.
In addition to LTE filtering most wideband models in the Edge series include low band filtering to eliminate all services below 174 MHz
The Edge series is designed to meet the needs of the television reception industry now and well into the future.

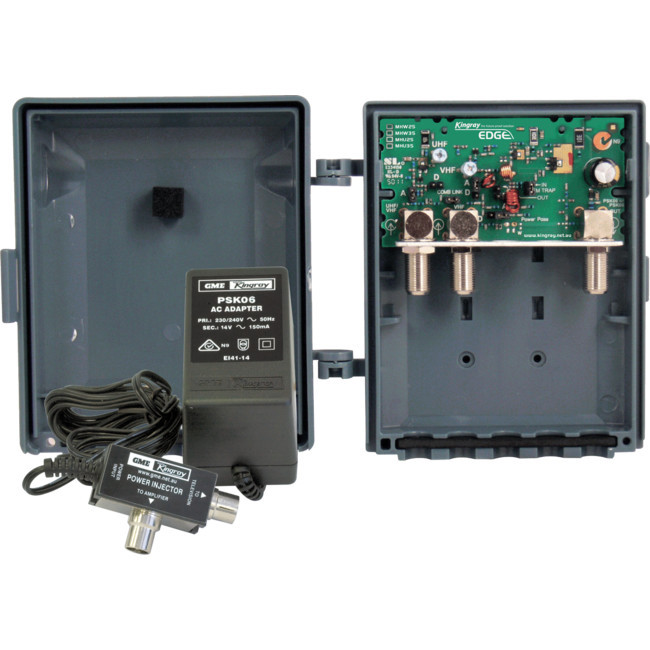

In the Box
PRODUCT SPECIFICATIONS
ELECTRICAL SPECIFICATION
Frequency Range VHF: 174 - 230 MHz, UHF: 520 - 694 MHz Maximum Gain VHF: 22-26 dB, UHF: 35 dB Gain Control Range VHF: Tilt Control 16-12 dB, UHF 15 dB Maximum Output Level 108dBuV @ - 60 dB IMR (DIN45004B) Noise Figure VHF: < 3 dB, UHF: < 2.5 dB LTE Filter -25dB @ 750MHz Low Band Filter -30 dB Pager Filter -25 dB @ 148 MHz and 158 MHz FM Filter -25 dB @ 88 - 108 MHzMECHANICAL SPECIFICATION
Input Connector F type Output Connector F typePOWER SUPPLY
Suitable plug pack PSK06/08, PSK06/08F, KPS06/08, KPS06/08F Power Consumption 80 mAOrders will be shipped within 2-5 business days and It will be delivered within 10-15 days.
