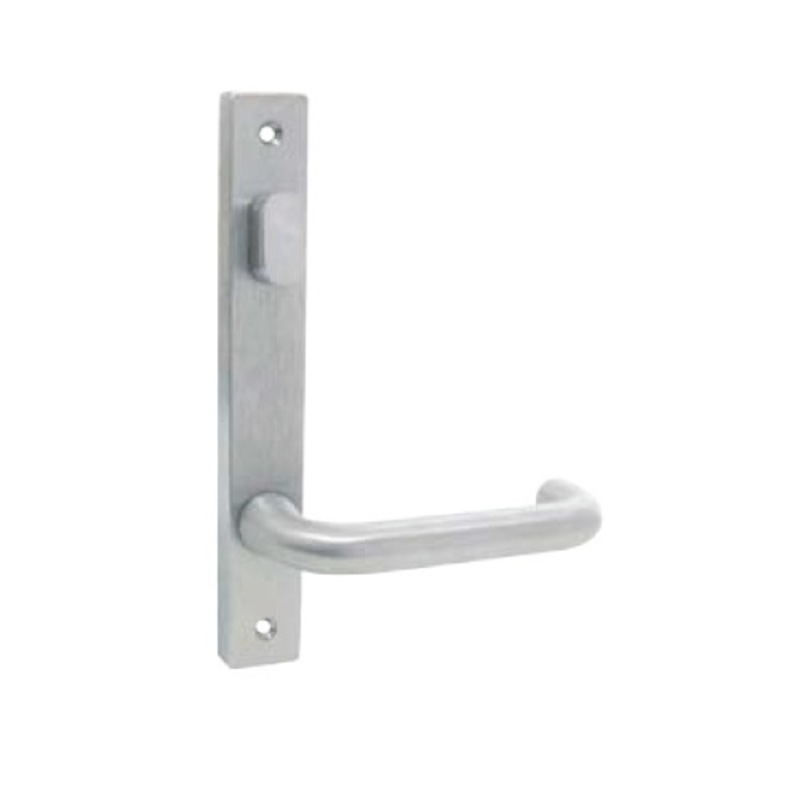

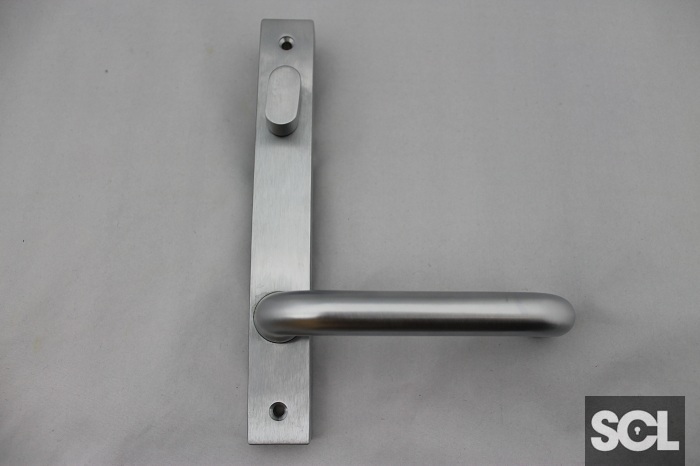

Kaba N600 Narrow Style Plate w/ Turn & Lever Satin Chrome Plate N613V25SCP

Kaba N600 Series Narrow Style Squared Edge Plate Furniture w/ Turn & 25 Lever
N613V-25SCP

The Kaba N600 series narrow style square end solid forged brass door furniture is designed for use with contemporary Australian style short backset mortice locks and latches.

Features:

• Stainless Steel drive plate, an integrated precision ground 12mm bush that provides enhanced handle support plus a lever torsion spring to eliminate handle sag
• Fixing: Plates are 12mm thick and are designed to fit back to back with either concealed or visible fixing to outside plate. Tiebolt M5 fixing screws have a cross-recessed head
• Handing: Plates and knobs are non-handed with levers reversible on site in most cases
• Door Thickness: Supplied to suit door thickness 32mm to 50mm.
• Disabled access AS1428.1 compliant lever
• Successfully tested up to 4 hours (depending on type of doorset) on fire door assemblies in accordance with Australian Standard AS 1905.1- 2005, Part 1: Fire Resistant Doorsets (only when used in conjunction with the M Series mortice lock).

Specifications:

• Height: 185mm
• Wide: 26mm
• Thick: 12mm
• Finish: Satin Chrome Plate
