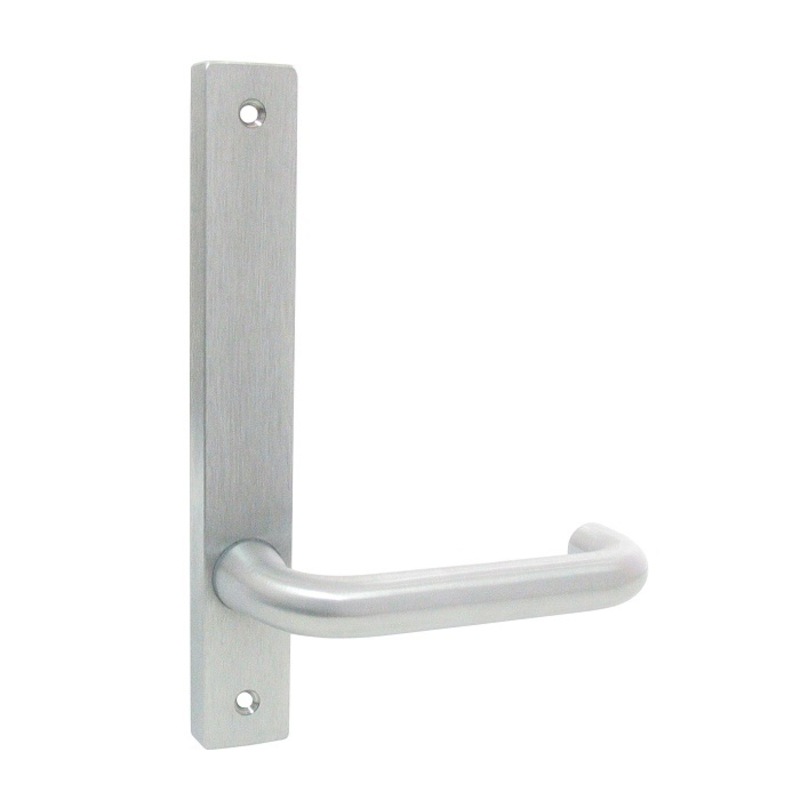

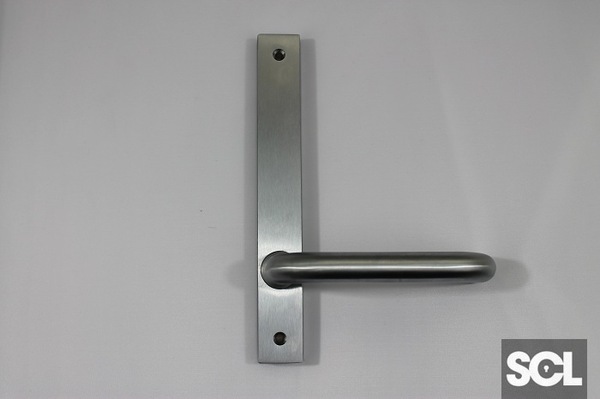

Kaba Door Handle N600 Narrow Style Plate w/ 25 Lever Satin Chrome Plate N602V25S

Kaba N600 Series Narrow Style Squared Edge Plate Furniture w/ 25 Lever
N602V25SCP

Door Lever can be found on all types of doors including exterior doors of internal doors, residential and commercial buildings

Door Lever Function - Lever design provides an easier grip when opening a door and it prevents your hand from slipping

• The Kaba N600 series narrow style square end solid forged brass door furniture is designed for use with contemporary Australian style short backset mortice locks and latches.

Features:

• Rectangular narrow stile interior square end plain plate
• 25 series lever
• Disabled access AS1428.1 compliant lever
• Visible fixing
• External plates supplied with fixing screws
• Plates are designed to fit back to back
• Fire rated
• Reversible handing

Specifications:

• Door Thickness: 32mm - 50mm
• Height: 185mm
• Wide: 26mm
• Thick: 12mm
• Screw Fixing Centres: 158.8mm
• Finish: Satin Chrome Plate

Compliance:

• This product comprises a BCA AS1428.1 -2009 compliant lever and has been Successfully tested up to 4 hours (depending on type of doorset) on fire door assemblies in accordance with Australian Standard AS 1905.1- 2005, Part 1: Fire Resistant Doorsets (only when used in conjunction with the M Series mortice lock)
