The new Kordz PRS4 Series 48Gbps Active Optical HDMI Cables are designed to meet the high demands and rigour of professional integration.
They're constructed to be compact, robust and flexible, while supporting the full features and benefits of the latest HDMI technologies at 48Gbps when using 4K HFR or 8K devices.
Colour Formats: RGB 4:4:4 / Y’C
BC
R 4:2:2 / Y’C
BC
R 4:2:0
Content Protection: Up to HDCP 2.3 supported
Audio Sample Rate / Channel: Up to 192KHz
Audio Sample Size: Up to 24 bits
Audio Channels: Up to 32 channels
Audio Formats Supported: DTS Master, DTS:X, Dolby TrueHD, Dolby Atmos
Auxiliary HDMI Features Supported: Consumer Electronic Control (CEC), Auto Lip-Sync Correction, Ethernet channel, Audio Return Channel (ARC), Enhanced Audio Return Channel (eARC), High Dynamic Range (HDR), Dynamic HDR, Variable Refresh Rate (VRR), Quick Media Switching (QMS), Quick Frame Transport (QFT), Auto Low Latency Mode (ALLM), Display Stream Compression (DSC), Source-Based Tone Mapping (SBTM)
_
Technical info
HDMI CERTIFICATION_10.0m – 20.0m ACTIVE OPTICAL
HDMI CTS Certification: Ultra High Speed HDMI® Cable
DPL Labs Certified Data Rate: 12.0Gbpsc, 48Gbps agg
Supported Data Rate: =12.0Gbpsc, 48Gbps agg (8K UHD)
Supported HDMI Clock: 1200MHz

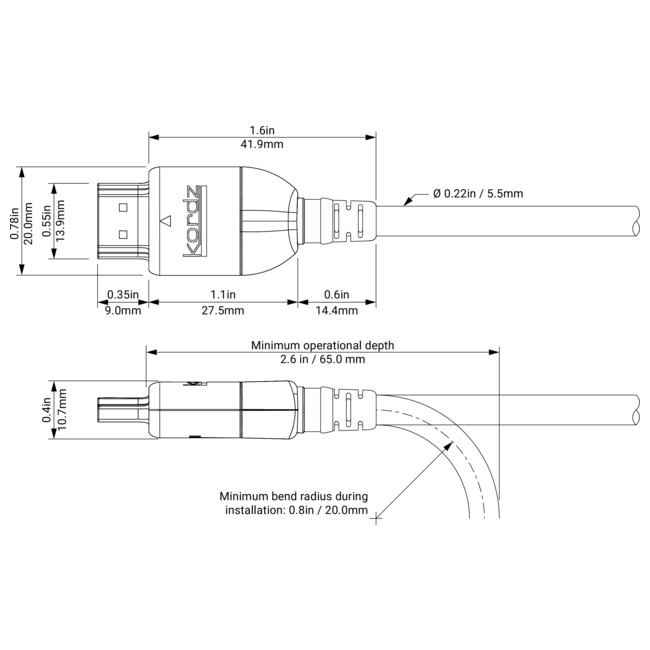

MECHANICAL
Cable Diameter: 5.5mm±0.30mm / 8.5mm±0.30mm
Mounting Length: 41.9mm/1.96″
Cable Bend Radius: 20.0mm/0.78″ – 25.0mm/ 0.98″
Retention Force (nom): 20N (approx. 2kg / 4.4lbs) +10/-5%
CONSTRUCTION
FRL/TMDS Conductors : OM2 (50/125µm) optical fibre
Conductors: Bare copper, 32-26AWG
Shielding Overall: Al-PET (nom. 25% overlapping, Al side face out) Tinned copper wire braiding(16/13/0.08mm), with nom. 85% coverage
Cable Jacket Material: LSZH rated composite
HDMI Connector Shell: Anti-fatigue die cast Zn alloy, 1µ” 24K Gold plated
HDMI Connector Pins: Solid OFC, 15µ” 24K Gold plated
Active Technology: Directional, In-shell Optical Light Engine
HDMI Backshells: ABS front shell with PVC injection moulded boot and strain relief
_
Warranty
The Kordz PRS4 Active Optical HDMI Cable is backed by our 2 Year Product Guarantee.
_
Length options
_
_
Weight: 0.625
