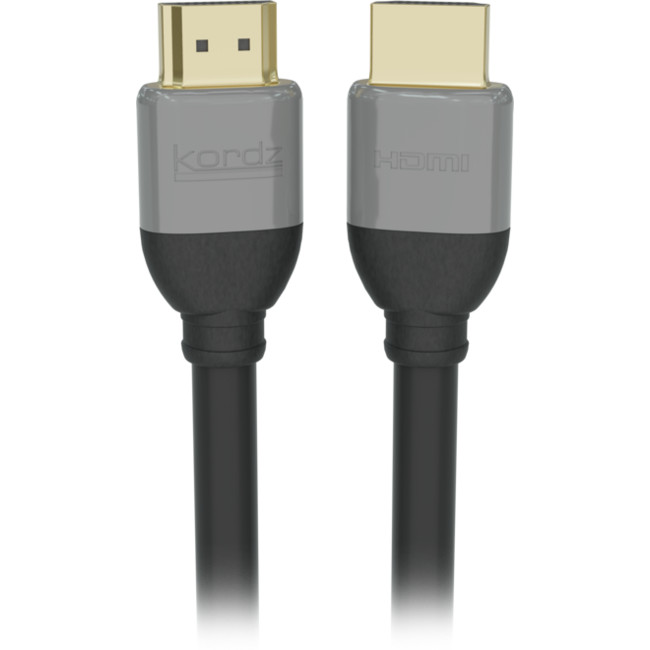

The new Kordz PRS4Series 48Gbps Passive Ultra High Speed Certified HDMI Cables are designed to meet the high demands and rigour of professional integration.
They're constructed to be compact, robust and flexible, while supporting the full features and benefits of the latest HDMI technologies at 48Gbps when using 4K HFR or 8K devices.
Video Format: 8K/4K/1080p, 120fps/60fps, Dynamic HDR
Data Rate: 10.2Gbps/ 18Gbps/ 48Gbps
Control Signal: HDCP 2.2/EDID/ CEC/ DDC
Audio Support: DTS Master, DTS:X, Dolby TrueHD, Dolby Atmos
480i/p, 576i/p:≤ 540Mbpsc/1.62Gbps, 270MHz
720p/1080i: 742.5Mbpsc/2.22Gbps, 371.25MHz
1080p: 8-bit RGB/YCbCr 4:4:4, 10/12-bit 4:2:2 or 4:2:0:
23.98/24/29.97/30: 742.5Mbpsc/2.22Gbps, 371.25MHz
50/59.94/60: 1.485Gbpsc/4.455Gbps, 742.5MHz
3D-24/30: 1.485Gbpsc/4.455Gbps, 742.5MHz
3D-50/60: 2.97Gbpsc/8.91Gbps, 1.485GHz
1080p: 10/12/16-bit RGB/YCbCr 4:4:4
_
HDMI CTS Certification: Ultra High Speed HDMI® Cable
Certified Data Rate: ≥12.0Gbpsc, 48Gbps agg (8K UHD)
Supported HDMI Clock: 1200MHz

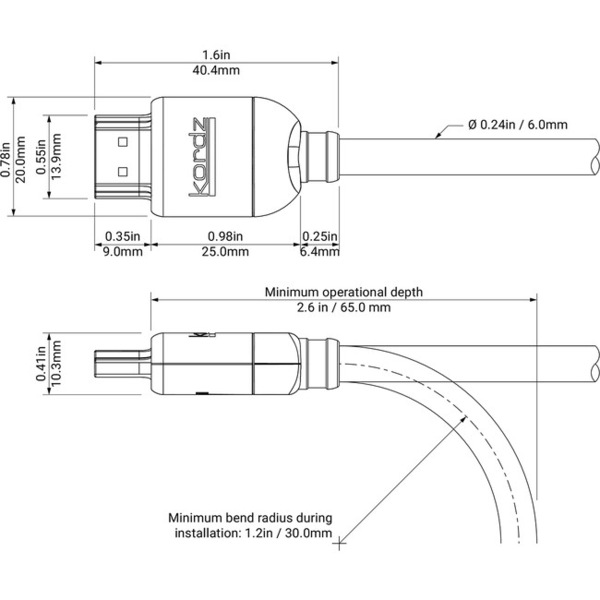

Cable Diameter: 0.5m - 3.0m: 30 AWG 6.0mm / 0.24in Ø | 4.0m - 5.0m: 26 AWG, 8.0mm | 0.31in Ø
Mounting Length: 0.5m - 3.0m: 30AWG, 60.5mm/2.38" | 5m: 28 AWG, 67.5mm/2.66"
Cable Bend Radius: 0.5m - 3.0m: 30 AWG, 36.0mm/1.42" | 5m: 28 AWG, 48.0mm/1.89"
Retention Force (nominal): 20N (approx. 2kg / 4.4lbs) +10/-5%
Primary Conductors: Solid 30-26 AWG OFC, length dependent
Insulation on TMDS: Polyethelyene / Polypropylene, length dependent
Insulation on 4C + HEAC Pairs: Polyethelyene / Polypropylene, length dependent
Shielding on TMDS Pairs: AL/Mylar, 100% Coverage with 25% Overlapping
Shielding Overall: AL/Mylar, 125% Coverage + Tinned copper braid, min 85% coverage
Cable Jacket: UL CMG fire-rated PVC composite materials
HDMI Connector Shell: Anti-fatigue die cast Zn alloy, 1µ" 24K Gold plated
HDMI Connector Pins: Solid OFC, 15µ" 24K Gold plated
Termination: High Frequency Soldering
HDMI Backshell: ABS front shell with PVC injection moulded boot and strain relief
_
| 0.5m / 1.6ft |
| 1.0m / 3.3ft |
| 1.5m / 4.9ft |
| 2.0m / 6.6ft |
| 3.0m / 9.8ft |
| 4.0m / 13.1ft |
| 5.0m / 16.4ft |
