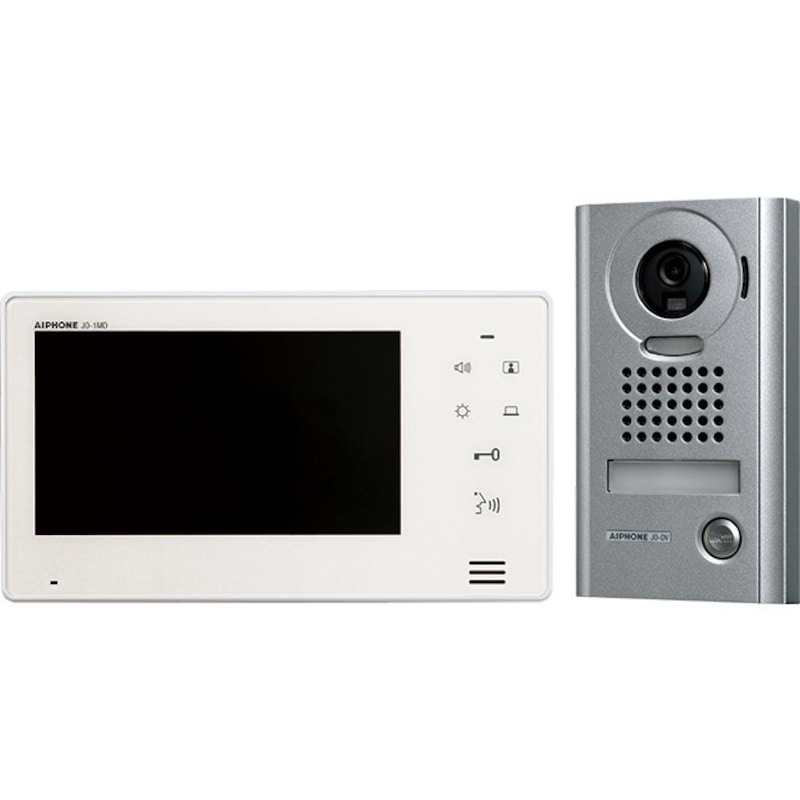

THE AIPHONE JOS1V KIT ICLUDES 1 X JO1MD MASTER MONITOR, 1 X JODV VANDAL RESISTANT SURFACE MOUNT DOOR STATION AND 18 VOLT POWER SUPPLY
The JO series is a stylish design 7" screen that delivers high quality images. The JO Series can accommodate one door and up to two inside stations.
Easy to identify and use touch buttons makes it simple tooperate allowing identification and communication withvisitors at locked doors.
Door / gate release button allows you to accept your visitor with out leaving the screen.
The JO series is equiped with an advanced light adjustment feature to compensate for varying light levels
The JOS1V includes:
1 x JODV metal vandal resistant surface mount door station
1 x JO1MD master station
1 x 18 volt power supply
OPTIONAL:
1 x JO1FD Expansion monitor
FEATURES:
Ready to install box sets include one door station, one inside station, and power supply.
other Kits available
JOS1F - Includes 1 x JODVF door station and 1 x JO1MD master station and 1 x 18 volt power supply
JOS1A - Includes 1 x JODA door station and 1 x JO1MD master station and 1 x 18 volt power supply
SPECIFICATIONS:
JO-1MD Master Station | |
|
18 Volts DC |
|
( Standby ) 24 mA ( Max ) 410 mA |
|
Hands-free: Auto-voice actuation |
PTT: Press-to-talk, release to listen | |
|
0 - 40oC ( 32oF - 104oF) |
|
7 inch color LCD screen |
|
Wall mount |
|
3 gang box |
|
Flame resistant ABS resin |
|
White |
|
130 (H) x 230 (W) x 21 (D) (mm) |
|
5-1/8 (H) x 9-1/16 (W) x 13/16 (D) (inches) |
|
Approx. 470g (1.04 lbs.) |
JO-DA/JO-DV/JO-DVF (Video door station) | |
|
1/4 - inch color CMOS |
|
-20 - 60oC (-4oF - 140oF) |
|
Approx. 5 lux at 50 cm (1'6'') distance |
|
129 (H) x 97 (W) x 36 (D) (mm) 5-3/32 (H) x 3-27/32 (W) x 1-13/32 (D) (inches) |
|
173 (H) x 98 (W) x 27 (D) (mm) 6-13/16 (H) x 3-7/8 (W) x 1-3/8 (D) (inches) |
|
209 (H) x 135 (W) x exposed area 3.5 (D) (mm) 8-1/4 (H) x 5-5/16 (W) x 5/16 (D) (inches) |
|
180 (H) x 110 (W) x 45 (D) (mm) 7-3/32 (H) X 4-3/8 (W) X 1-25/32 (D) (inches) |
|
Approx. 200 g (0.44 lbs.) |
|
Approx. 650 g (1.43 lbs.) |
|
Approx. 580 g (1.27 lbs.) |
|
Approx. 550 g (1.2 lbs.) |
|
IP54 (JO-DA / JO-DV / JO-DVF) |
|
IK08 (JO-DV) IK07 (JO-DVF) |
