JimiLab VL103M LTE Vehicle Tracker, LTE & GSM Network;Driving Behavior Analysis (Basic);Ignition Detection; 9-90V Rated Voltage; Remote Cut-off (Fuel/Power); Multiple Alerts; [VL103M]

JimiLab VL103M LTE Vehicle Tracker, LTE & GSM Network;Driving Behavior Analysis (Basic);Ignition Detection; 9-90V Rated Voltage; Remote Cut-off (Fuel/Power); Multiple Alerts; [VL103M]

Hurry! 16 items left!

Price	$120.47
	Collect 120 Everyday Rewards points Log in to MyDeal to link your card
Shipping	Unable to calculate delivery for , please Contact Us Delivery unavailable to Change
	24-48 hour dispatch See delivery details

Quantity

Add to wishlist

JimiLab VL103M LTE Vehicle Tracker, LTE & GSM Network;Driving Behavior Analysis (Basic);Ignition Detection; 9-90V Rated Voltage; Remote Cut-off (Fuel/Power); Multiple Alerts;

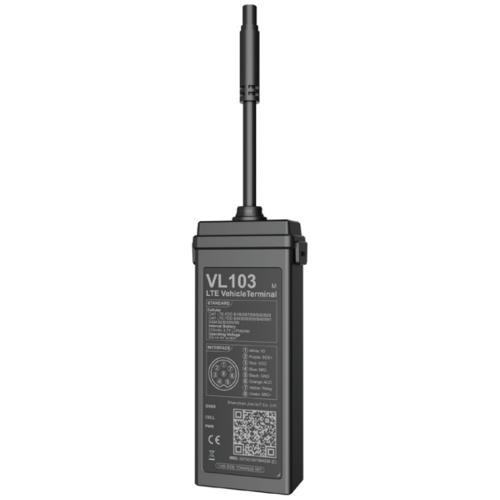

Compact in size, yet packed with various features, the VL103M is a powerful GPS tracker designed to handle industrial and commercial fleet applications ranging from rental agencies and public transportation to freight transport and beyond. The device also features an external buzzer/horn alarm that makes it easy to locate your car in case you can't find it, further adding to the security of your fleet. In addition to these features, remote listen-in and the suite of event-triggered alerts will make the VL103M a valuable part of your fleet management strategy.
Product is including the tracking platform of 10 years subscriptions. Contact IPC@pbtech.co.nz, to register account for free software and APP.
GPS & BDS & LBS Positioning
A synergy of multiple positioning systems ensures that locations are accurately displayed on the cloud platform.
Low Voltage Alert
You'll be alerted via SMS when the motorcycle battery voltage is lower than the threshold.
Remote Listen-In
Inconspicuous mic allows for remote audio monitoring of the environment around the device.
External Buzzer/Horn Supported
Warn the driver once the tracker detects speeding or fatigue driving, and it also supports audible/light warnings to search for vehicles.
Multiple Alerts
Instant alerts for atypical events such as abnormal vibration, speeding, geo-fence entry/exit, etc.
IP66 Dust & Water Resistance
Rugged design ensures continued optimal performance, even in the toughest conditions.

GNSS
Positioning system
GPS+BDS+LBS
Positioning accuracy
<2.5m CEP
Tracking sensitivity
-165dBm
Acquisition sensitivity
-148dBm
TTFF (open sky)
Avg. hot start <=1sec
Avg. cold start <=32sec
Cellular
Communication network
LTE Cat 1/GSM
Frequency
VL103M (L)
LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B28
GSM: B2/B3/B5/B8
VL103M (E)
LTE-FDD: B1/B3/B7/B8/B20/B28
LTE-TDD: B34/B38/B39/B40/B41
GSM: B2/B3/B5/B8
Power
Battery
270mAh/3.7V industrial-grade Li-Polymer battery
Input voltage
9-90VDC
Interface
LED indication
GNSS (Blue), Cellular (Yellow), Power (Red)
SIM
Micro-SIM
Data storage
16+16Mb
Digital inputs
ACC, SOS
Digital outputs
Relay, IO for buzzer/horn output
Physical specification
Dimensions
92.0 x 40.0 x 20.0mm
Weight
55g
Operating environment
Operating temperature
-20°C to +70°C
IP rating
IP66
Feature
Sensors
Accelerometer
Scenarios
Vibrating alert, Speeding alert, SOS call, Tamper alert, Cover removal alert, Geo-fence entry/exit alert, Vehicle battery detection
* We reserve the right to the final interpretation of this page. All information is for reference only and is subject to change without further notice.
- MPN: VL103M

MPN: VL103M
