ION F11 850VA 480W Line Interactive UPS Backup Power 2 x Australian Outlets

Product Overview

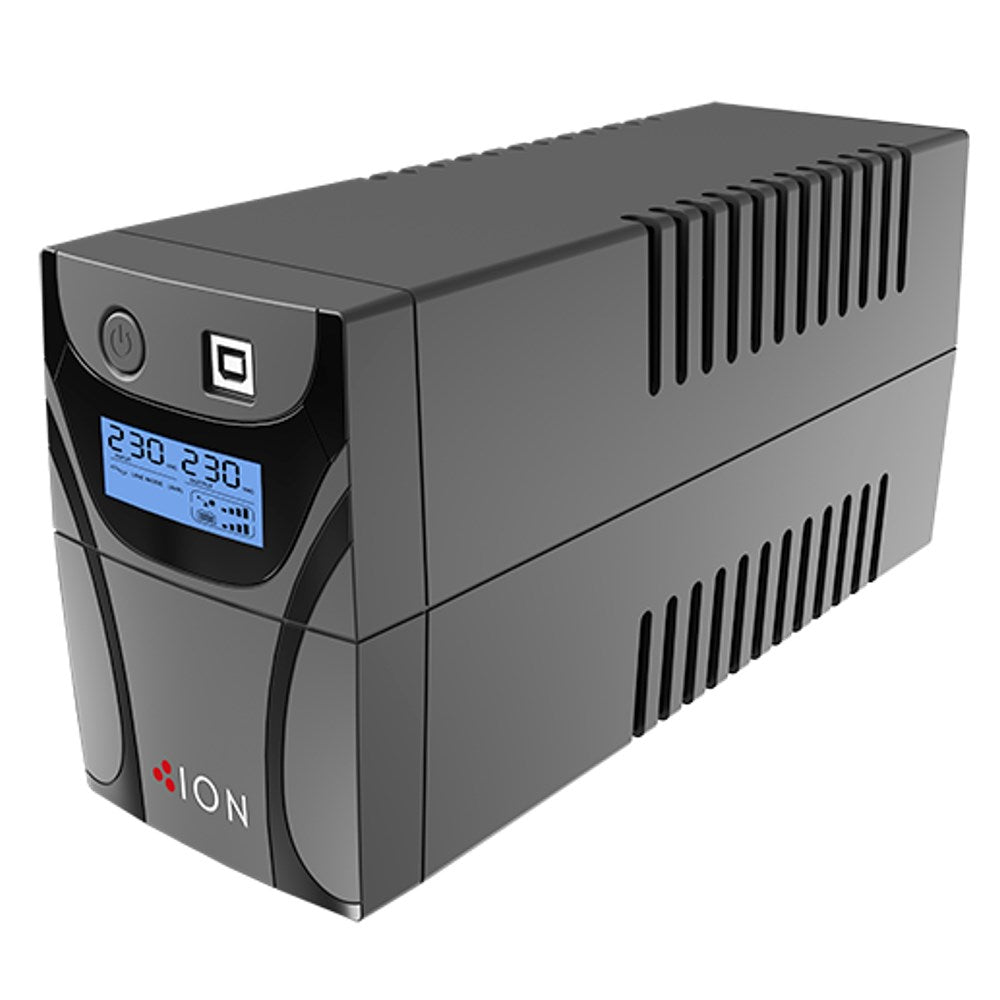

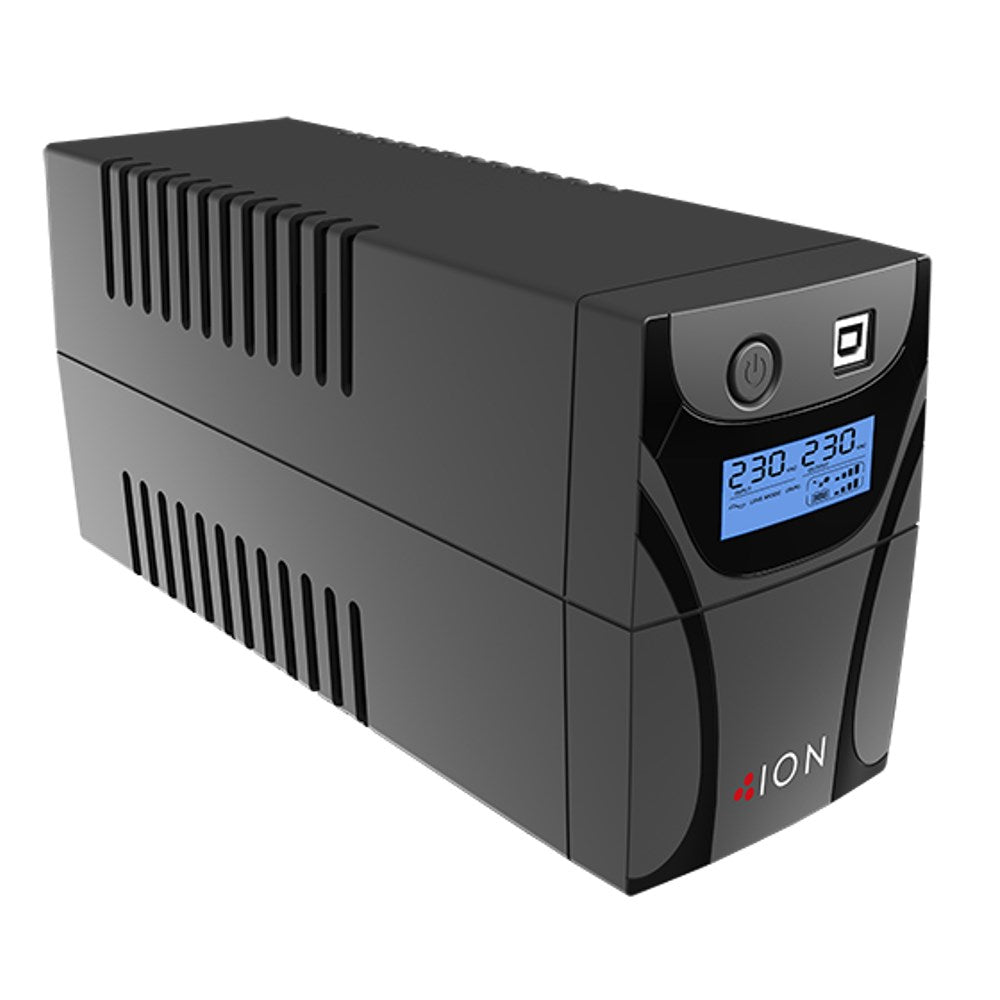

ION F11 is a compact line interactive UPS that offers protection from power surges and failures in the home, office or small business. Ideally suited to protecting computers and POS devices the ION F11 provides clean, reliable power supply. Presented in a stylishly engineered unit, it is compact to fit in tight spaces and provides multiple power receptacles, HID, SLS, USB communications port.

ION F11 Features:

• 3 Year Advanced Replacement Warranty
• HID (Human Interface Device) No software installation required

• SLS / Small Load Sensing

• LCD display

• Boost and Buck Automatic Voltage regulation stabilises fluctuating power

• Easy battery replacement

• USB connection for local interface and communications

• Free software for real time monitoring and safe shutdown of connected equipment

• Auto-charge even when UPS is off

• Auto-restart in AC power recovery

• Modem/phone line surge protection

• Discharge, overcharge and overload protection


Specifications:

Output

• Output Power Capacity 480W/850VA
• Max Configurable Power 480W/850VA

• Nominal Output Voltage 230V

• Output Voltage Distortion Less than 5% at full load

• Output Frequency 47 - 53 Hz for 50 Hz nominal, 57 - 63 Hz for 60 Hz nominal

• Topology Line Interactive

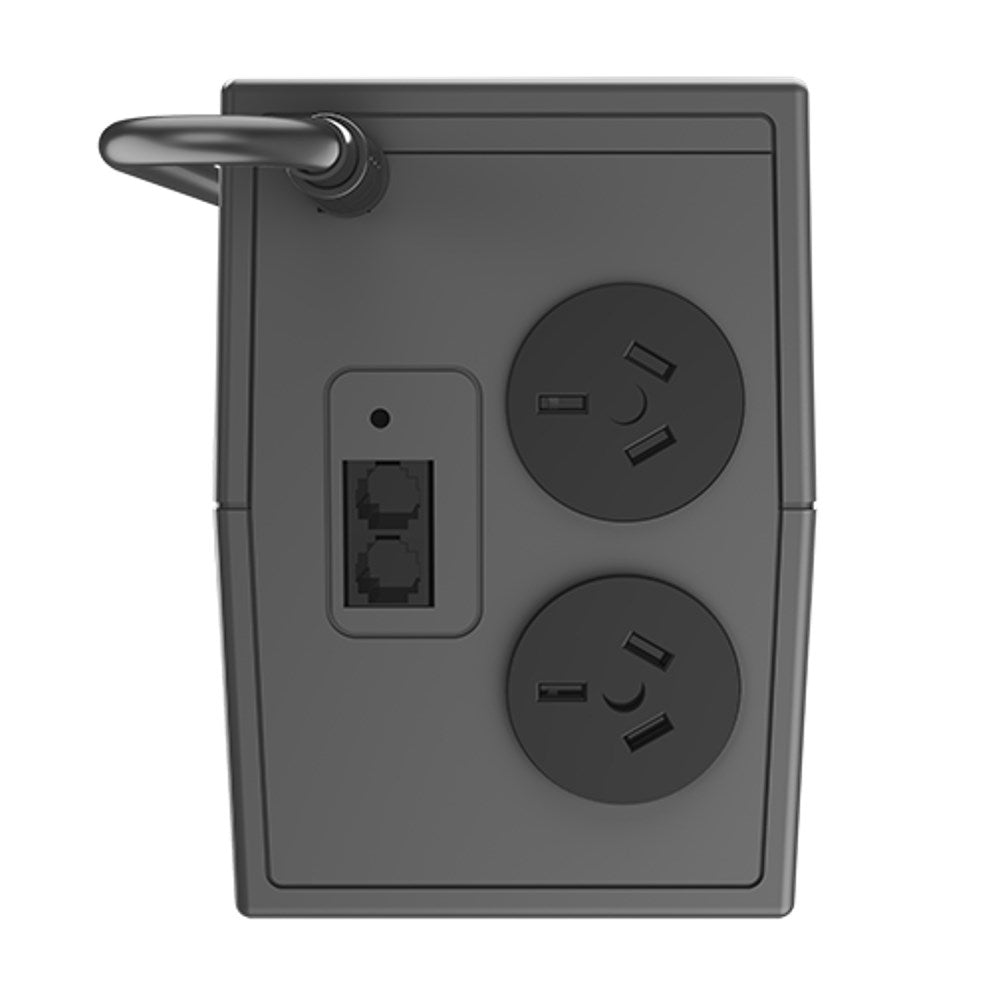

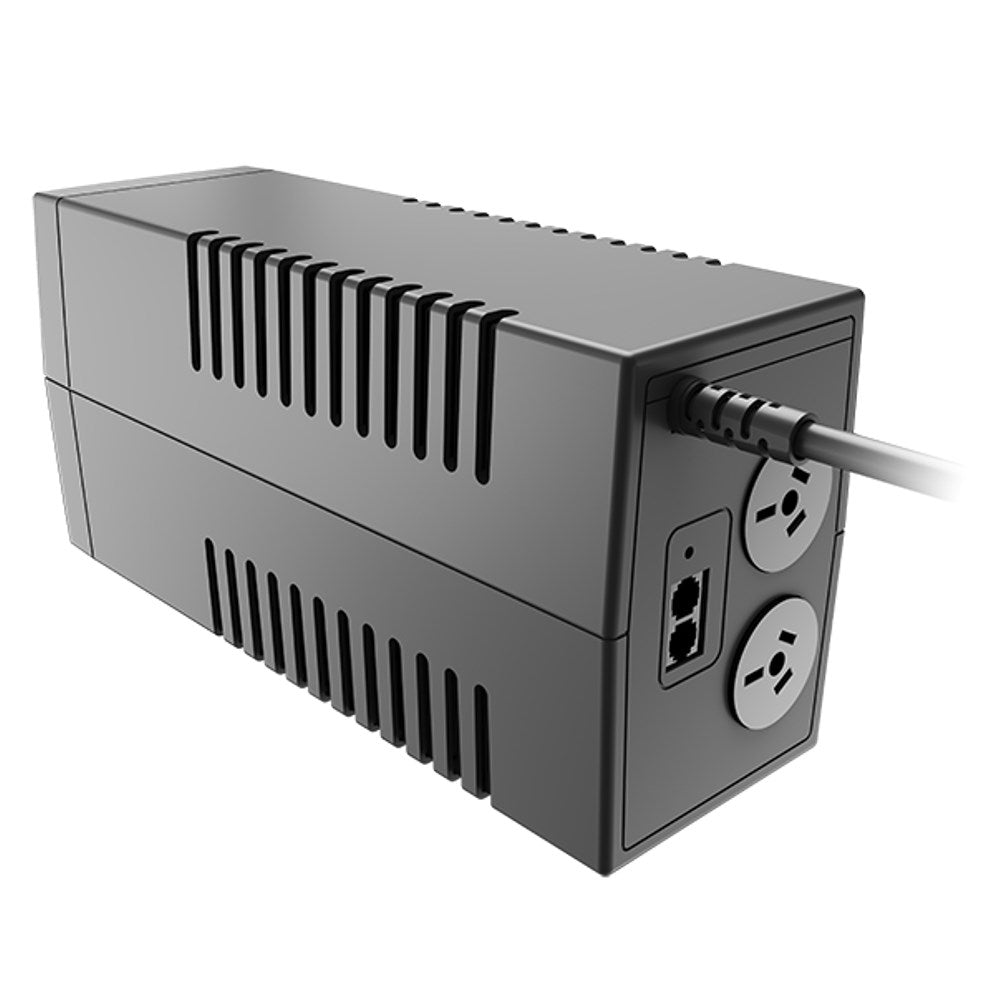

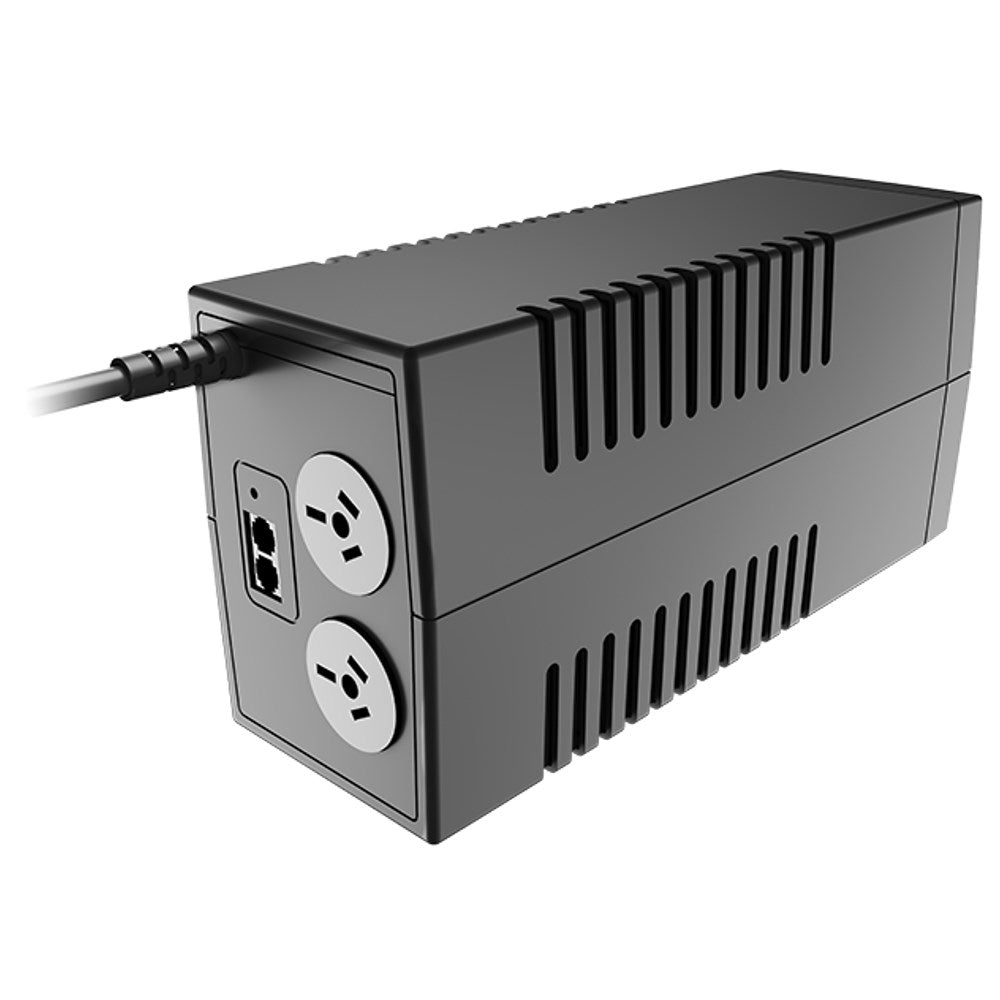

• Output Connections (2) Australian 3 pin 10Amp

• Transfer Time 2-6ms typical


Input

• Nominal Input Voltage 230V
• Input frequency 50/60 Hz +/- 3 Hz (auto sensing)
• Input Connections 2m IEC to Australian 3 pin plug
• Input voltage range for main operations 170 - 280V


Batteries & Runtime

• Battery type Maintenance-free sealed Lead-Acid battery with suspended electrolyte: leak proof
• Battery Capacity 1 x 12V 9AH
• Charging Current 1A
• Typical Recharge Time 6 hours to 90%
• Expected Battery Life 3- 5 years


Communications & Management

• Interface Port USB

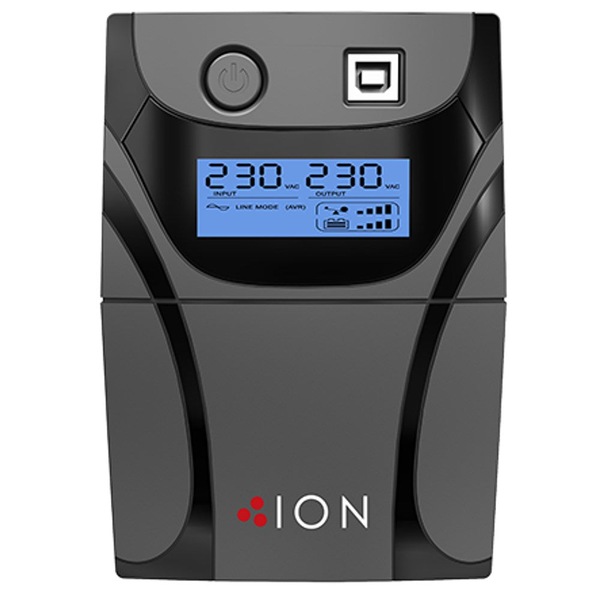

• Control panel LCD status display with On Line : On Battery : Replace Battery and Overload indicators
• Audible Alarm Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm


Surge Protection and Filtering

• Surge energy rating Surge energy rating
• Data Line Protection RJ - 11 Surge Protection


UPS Physical

• Maximum Height 143mm
• Maximum Width 100mm
• Maximum Depth 290mm
• Net Weight 5.2kg
• Weight 6.3kg
• Height 220mm
• Width 140mm
• Depth 340mm
• Color Black


Environmental

• Operating Environment 0 - 40 oC
• Operating Relative Humidity 0 - 95 %

• Operating Elevation 0-1500 meters @ 0~40 oC, 1501-3000 meters @ 0~35 oC

• Storage Temperature -15 - 45 oC

• Storage Relative Humidity 0 - 95 %

• Storage Elevation 0-15000meters

• Audible noise at 1 meter from surface of unit 40.0dBA


Conformance

• Approvals CE
• Standard Warranty 3 Year Advanced Replacement
