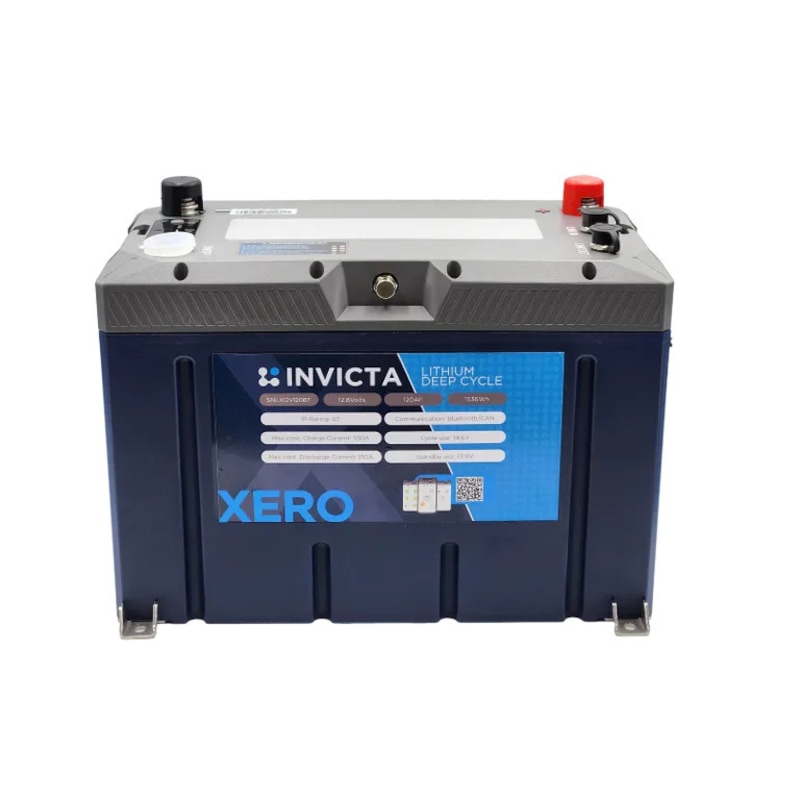

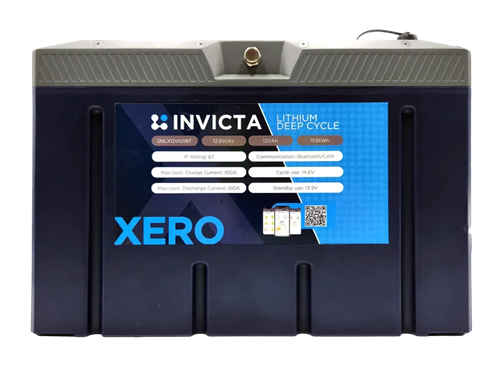

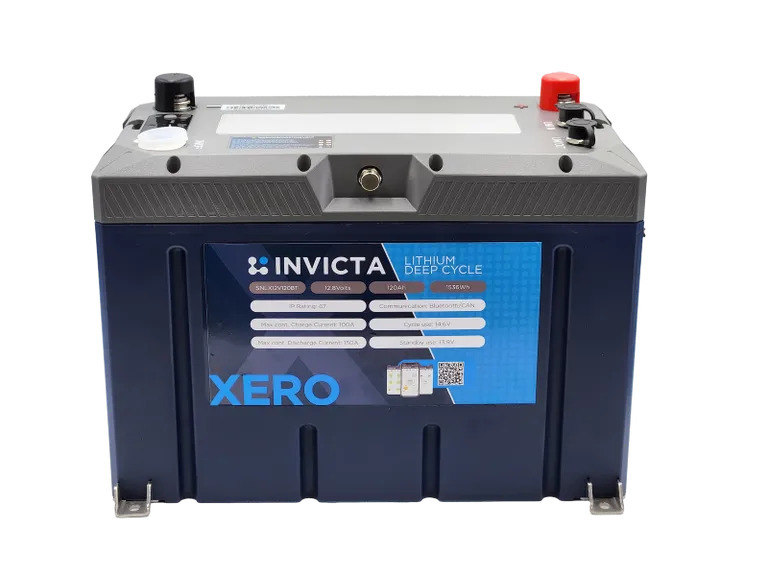

Invicta Xero 12V 120Ah Lithium Battery with Bluetooth

Invicta Xero, the latest addition to Invicta, is an advanced lithium battery designed to meet the increasing demands of emerging applications and safety requirements in recreational and industrial industries. The Invicta Xero range includes significant upgrades while still utilising tried-and-tested technology that users trust day in and day out.

Upgrades include an improved IP rating, high-performance BMS, overall construction, and communication methods via CAN bus and Bluetooth connections. The battery continues to use Invicta’s ever-popular prismatic cells and is backed by a market-leading 7-year full replacement warranty and national customer support.

High-Performance BMS

The high performance BMS on the Invicta Xero allows for a wider breadth of customization compared to other batteries. This means that very often the 12V 120Ah battery available will be more than enough to get the job done.

This includes a max pulse discharge of 500A and max continuous discharge of 150A. Which will be enough to run most 2000W inverters. You can now series up to 4 (48V 120Ah), parallel up to 16 (12V 1920Ah), or even 4 series and 4 parallel (48V 480Ah). And with a cycle count of 3000+ (100% DoD) you’ll be set for years.

Communication Is Key

The Invicta Xero range comes with CAN bus and Bluetooth communication options that can function as stand-alone or simultaneous monitors.

Its open CAN bus protocol, can connect to any number of devices via a CAN link to directly talk to the battery’s BMS. A far superior option to any smart shunt on the market as it provides highly accurate data to improve the application’s performance. The CAN bus also allows for a greater number of batteries to be paralleled and seriesed in a system as each battery can talk to the other.

The Bluetooth feature is a more user friendly option which connects directly to your smart device via the free Invicta App. This method allows you to monitor all the essential information of your battery.

Robust Design

The Invicta Xero is built like no other. All components are securely fixed to ensure damaging vibrations are almost non-existent. An improved IP67 dust and waterproof rating also keeps the water and humidity out, especially useful in the tropics.

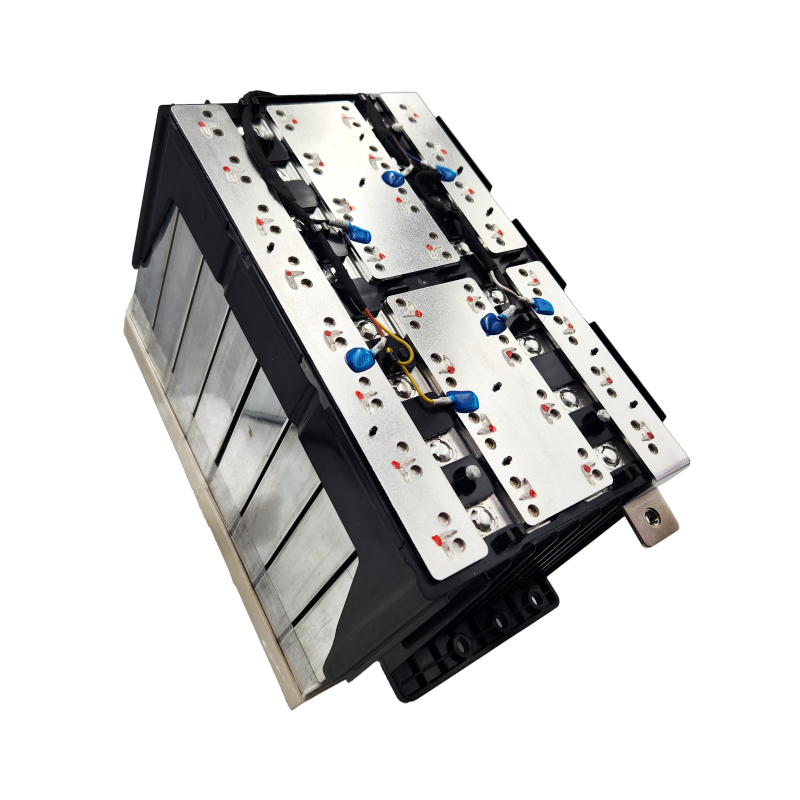

Invicta’s tried and tested prismatic cells are now secured to the case thanks to a new strengthening frame which integrates directly to the case. This extends out to the battery cells to ensure everything remains fixed.

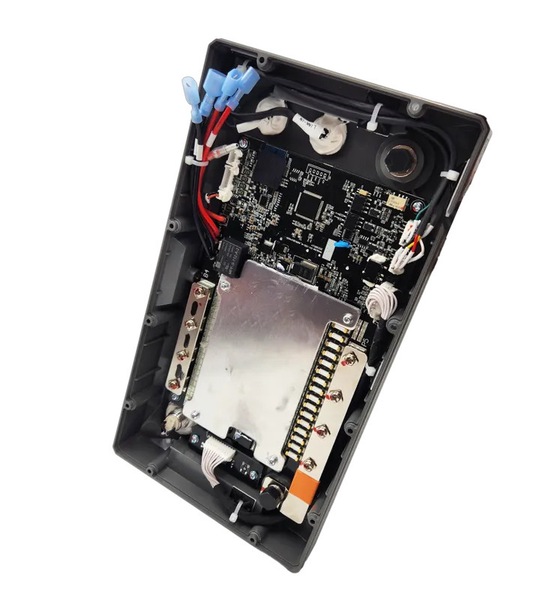

Other upgrades also include laser welded intercell busbars and a high performance BMS that utilises a precision printed circuitry board with passive and active protections built directly in to the circuity for added security.

Features & Benefits:

• Large number of cycles >3000 (100% DoD) Up to 10 times cycle life of SLA lowering your total cost of ownership
• Safe and stable chemistry & Integrated BMS The use of LiFePO4 along with the integrated BMS ensures protection against over charge / discharge, temperature and short circuit providing the highest degree of safety
• More communication possibilites with Bluetooth and open CAN bus, this makes connecting devices even easier.
• High energy density (less than half of the weight of SLA) Lowering total weight of application
• Detachable mounting feet.
• Secure your battery to the application with detachable mounting feet. Simply remove/attach with a screw driver
• Sealed from the Australian elements IP67 rated.
• More power and customisation with the ability to connect 4 in series, or 16 in parallel, or upto 4 in series and 4 in parallel. Max discharge has been increased to 150A (Pulse 500A @ 35 seconds)

Specifications:

• Nominal Voltage: 12.8v
• Nominal Capacity (250C, 0.33C): 120Ah
• Terminal: M8
• Length (mm): 308 ± 2mm
• Width (mm): 168 ± 2mm
• Height (mm)/Terminal Height: 211/220 ± 2mm
• Weight: 13.0kg
• Max Charge Voltage: 14.5 ± 0.1V
• Standby: 13.8 ± 0.1V
• Cut off Voltage: 11V
• Max. Discharge Current: 150A
• Max. Pulse Discharge Current (3 Sec): 500A
• Max. Charge Current: 100A
• Cycle Life (100% DoD): > 3000
• Operating Temp - Charge: 0 - 600C
• Operating Temp - Discharge: -20 - 550C
• Short Circuit Release: Load Release
• Max. Series / Parallel Configuration: 4S/16P/4S+4P
• Communication: Bluetooth and
• IP Rating: 67
