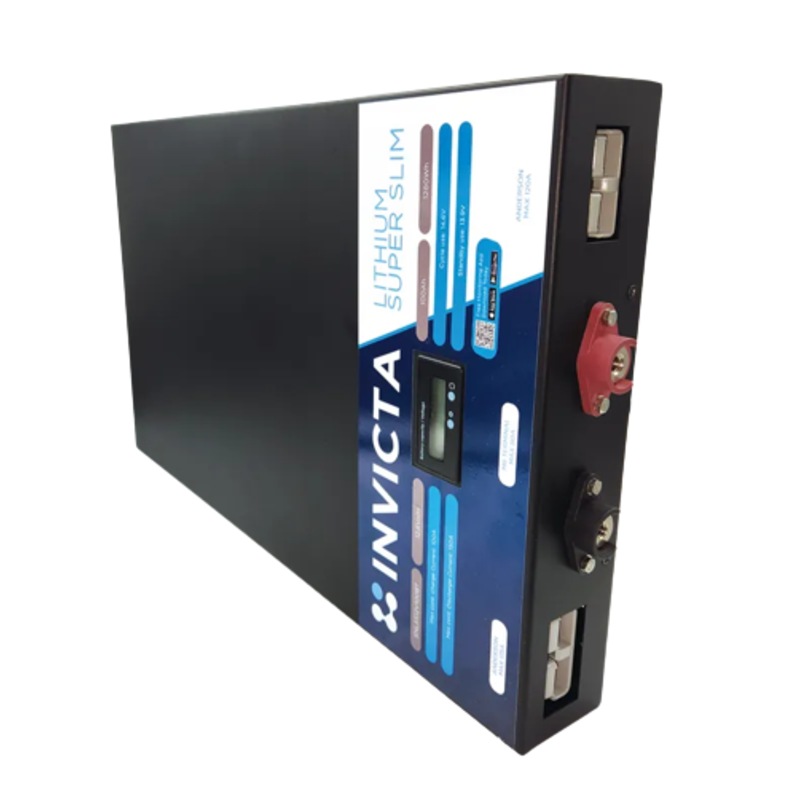

Invicta 12V 100Ah Super Slim Lithium Battery with Bluetooth

520 x 65 x 315 mm

Super Slim And Robust Design
The Invicta Super Slim lithium battery has been designed to be the slimmest battery ever from Invicta. As vehicle manufacturers continue to push internal design limits on their vehicles, the traditional lithium battery is becoming harder and harder to fit in increasingly reduced available space.

The Invicta Super Slim lithium battery was designed to combat this issue by using a 65mm wide frame, perfect for slipping behind the back seat or anywhere that might be a tight space. Its metal case also ensures it can handle any knocks or bumps when squeezed in a tight space. And all this without sacrificing any performance thanks to its prismatic cell construction.

High-Performance Capabilities
Don’t let its size fool you, the Invicta Super Slim range still has all the performance you will need when going on your next adventure. This includes integrated BMS with protections, high-discharge rate with over-rated Anderson plugs, Bluetooth monitoring, 1800W or 3000W inverter compatibility, and all backed by a 5-year full replacement warranty.

Bluetooth Monitoring
Sharing the same Bluetooth monitoring platform as our Invicta Hybrid Starter range, you can be sure you are getting the most accurate data available. Easy to download and free for all Invicta customers, simply follow the link below for most Android and Apple smart devices. Easily monitor current, voltage, status, cycles and capacity in one space.

Features And Benefits:

• Super-Slim Design (65mm wide)
• Prismatic Cells
• Safe LiFePO4 Technology
• Deep Cycle Performance
• High Current Anderson Plugs
• Available In Two Sizes (100Ah and 200Ah)
• Compatible With Up To 3000W Inverters
• Bluetooth Monitoring
• Robust Metal Case
• High Cycle Performance
• Light Weight
• Integrated BMS
• 5-year Full Replacement Warranty
• Fast Recharge
• Modular Construction

Specifications:

• Nominal Voltage: 12.8V
• Nominal Capacity (250C, 0.33C): 100Ah
• Terminal 1: Anderson 175A
• Terminal 2: Anderson 120A
• Terminal 3: M8
• Length (mm): 520 ± 2mm
• Width (mm): 65 ± 2mm
• Height (mm): 315 ± 2mm
• Weight: 15.0kg
• Max Charge Voltage: 14.5 ± 0.1V
• Standby: 13.8 ± 0.1V
• Cut off Voltage: 10.5V
• Max. Discharge Current: 150A
• Max. Pulse Discharge Current (5 Sec): 320A
• Max. Charge Current: 100A
• Recommended Current Charge: < 50A
• Cycle Life (100% DoD): > 2000
• Operating Temp - Charge: 0 - 45°C
• Operating Temp - Discharge: -20 - 60°C
• Short Circuit Release: Load Release
• Max. Parallel / Series Configuration: 4P / 0S
• Bluetooth: Yes
