INTESIS LG VRF systems to AC Cloud Control

LG VRF systems to AC Cloud Control (WiFi) Interface - 1 unit

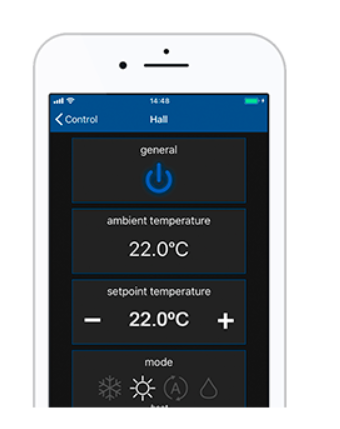

This model allows you to control your AC unit from the AC Cloud app and also integrates with HomeAssistant

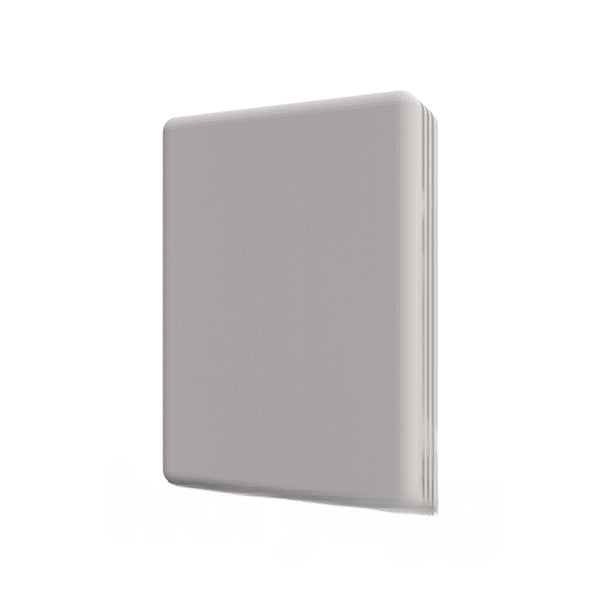

The gateway is wired directly to an indoor unit. This allows not only the control of the main AC functions such as operating mode, fan speed, temperature setpoint, but the monitoring of errors and alarms.

LG VRF (Variable Refrigerant Flow) systems could be integrated with AC Cloud Control using WiFi interfaces for remote control and monitoring.

Usage:

• Remote Control and Monitoring: The primary purpose of LG VRF systems with AC Cloud Control (WiFi) Interface is to enable users to remotely control and monitor their LG VRF air conditioning systems using a smartphone, tablet, or computer. This remote control capability is particularly useful for users who want to manage their HVAC systems from anywhere.

Features:

• Mobile App Control: LG typically provides a dedicated mobile app that users can download to their smartphones or tablets. This app allows users to control various aspects of their LG VRF system, including temperature adjustments, mode settings (cooling, heating, fan-only, etc.), and fan speed.

• Scheduling: Users can create schedules within the app to set specific times for the LG VRF system to turn on, off, or adjust temperatures. This feature helps optimize energy usage and maintain comfort according to daily routines.

• Energy Efficiency: Some LG VRF systems with AC Cloud Control may provide energy usage data and recommendations, helping users make more energy-efficient choices and reduce operational costs.

• Filter Status: The app may provide notifications about the status of air filters, indicating when they need to be cleaned or replaced. This feature helps maintain indoor air quality and system efficiency.

• Diagnostic Alerts: In the event of system issues or malfunctions, diagnostic alerts can be sent to users through the mobile app. These alerts often include error codes and other information that can be shared with HVAC technicians for remote troubleshooting.

• Compatibility: LG VRF systems with AC Cloud Control are typically designed to be compatible with various LG VRF air conditioning systems. However, it's essential to verify compatibility with specific models and requirements.

• Multi-Zone Control: For VRF systems, users with multiple indoor units can often control each zone individually or as groups, allowing for customized comfort and energy management.

Technical Details

Enclosure: ABS (UL 94 V-0). 2,5 mm thickness

Dimensions: 70 x 100 x 28 mm

Weight: 98 g

Colour: White

AC Connector: 12V, 85mA typical

Radio Parameters: RF Frequency range: 2412 to 2484 MHZ Output power (typical): 14/20 dBm

WIFI: 802.11 b/g/n (802.11n up to 150 Mbps)

Mounting: Wall

LED indicators: 1 x Device status

Operating Temperature: From 0oC to 40oC

Operating Humidity: <93% HR, no condensation

Stock Humidity: <93% HR, no condensation

RoHS Conformity: Compliant with RoHS directive (2011/65/CE).

Certifications: CE conformity to EMC directive (2014/53/EU) EN 62368-1:2014 CSA/UL 62368-1:2014 AS/NZS 62368.1:2018 EN 300 328 V2.1.1 EN 303 446-1 V1.2.0 Regulations: FCC/IC. Standards: Title 47 CFR Part 15B ICES-003 (Issue 6)
