IDEAL CAT6A Feed-Thru Modular Plugs (50 Pack)

IDEAL CAT6A Feed-Thru Modular Plugs (50 Pack)

Hurry! 7 items left!

Price	$80.78
	Collect 240 Everyday Rewards points Score 3x points on every order Ends 11:59pm 03/12/2024. Exclusions & T&Cs apply Log in to MyDeal to link your card
Shipping	Unable to calculate delivery for , please Contact Us Delivery unavailable to Change
	24-48 hour dispatch See delivery details

Quantity

Add to wishlist

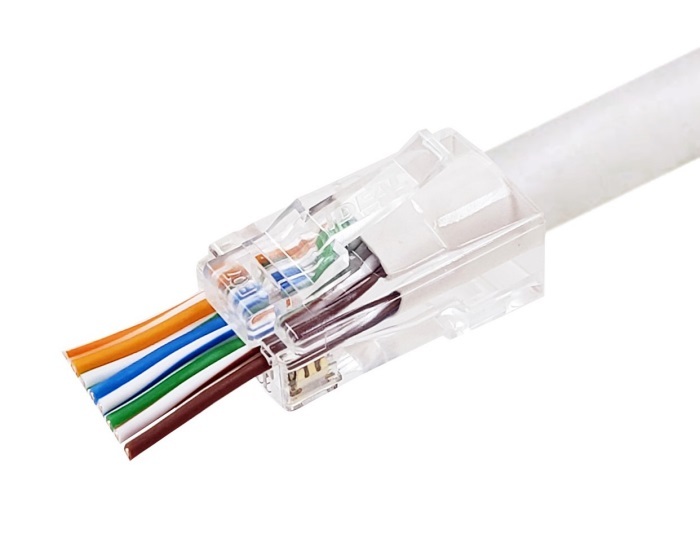

The IDEAL Electrical 85-385 CAT6A/6 RJ-45 Feed-Thru Modular Plugs (Card of 50) are single piece 8P8C RJ-45 connectors designed to work with cable conductors ranging from #22 to #24 AWG solid with an overall diameter of 0.040 in. to 0.048 in. per conductor. The single piece Feed-Thru design simplifies the challenges faced when assembling and terminating twisted pair cables with larger diameter conductors, over 0.041 in., when use of a standard in-line connector is not an option.

A unique staggered conductor hole layout and multi-length contact pins are incorporated to accommodate the larger conductors. The single-piece housing design helps to funnel the conductors through the connector and out of the Feed-Thru end. No precision length trimming, load bars or multi-piece assemblies are required.

Features

Feed-Thru modular plug
For insulated conductors of 0.040 in. to 0.048 in. diameter
CAT6A/6 shielded cable compatible for above diameter range
Max. jacket diameter of .320 in.
Staggered pin and conductor design
Crimp with FT-45™ 30-495 tool
50 micron gold plated contact area
UL listed E512035
Card of 50

GTIN: 783250865147
