General
| USA Version | EUR version | ||
|---|---|---|---|
| Frequency range | TX | 156.025~157.425 MHz | 156.025~161.425 MHz |
| RX | 156.050~163.275 MHz | 156.050~162.000 MHz (156.500 ~ 162.025 MHz for China) |
|
| DSC | 156.525 MHz | 156.525 MHz | |
| Usable channels | USA, CAN, INT, WX channels | INT, USA, ATIS channels | |
| Type of emission | 16K0G3E (FM), 16K0G2B (DSC) | 16K0G3E (FM), 16K0G2B (DSC) | |
| Power supply requirement | 13.8 V DC (11.7~15.9 V DC) | 12.0 V DC (10.8~15.6 V DC) | |
| Current drain (at 13.8 V DC) |
TX 25 W output | 5.5 A Max. | |
| RX Max. audio | 1.5 A (One CommandMic) 4.0 A (Two CommandMic & RX hailer) |
||
| Operating temperature range | -20oC ~ +60oC; -4oF ~ +140oF | ||
| Antenna impedance | 50 Ohm | ||
| Dimensions (W x H x D, Projections are not included) | RF unit | 216 x 79 x 113 mm, 8.5 x 3.1 x 4.4 in | |
| CommandMic | 67.5 x 144.5 x 37 mm, 2.7 x 5.7 x 1.5 in | ||
| Weight (approx.) | RF unit | 870 g; 1.9 lb. | |
| CommandMic | 400 g; 14.1 oz |
Transmitter
| USA Version | EUR version | |
|---|---|---|
| Output power | 25 W, 1W | |
| Max. frequency deviation | 5 kHz | |
| Frequency tolerance | 0.5 kHz | |
| Spurious emissions | Less than -70 dBc (at 25 W) Less than -56 dBc (at 1 W) |
Less than 0.25 uW |
| Residual modulation | More than 40 dB | |
| Adjacent channel power | More than 70 dB |
Receiver
| USA Version | EUR version | ||
|---|---|---|---|
| Sensitivity | FM | 0.22 uV typical (at 12 dB SINAD) | Less than -2 dBu emf (at 20 dB SINAD) |
| DSC (1% BER) | -7 dBu emf typical | ||
| Adjacent channel selectivity | FM | More than 70 dB | |
| DSC (1% BER) | More than 73 dBu emf | ||
| Spurious response | FM | More than 70 dB | |
| DSC (1% BER) | More than 73 dBu emf | ||
| Intermodulation | FM | More than 70 dB | More than 68 dB |
| DSC (1% BER) | More than 68 dBu emf | ||
| Hum and noise | More than 40 dB | ||
| Audio output power | CommandMic | More than 2 W (with 4 Ohm load, at 10% distortion) | |
| Rx hailer | More than 15 W (with 4 Ohm load) | More than 13 W (with 4 Ohm load) |
Applicable IP Rating
| Ingress Protection Standard | |
|---|---|

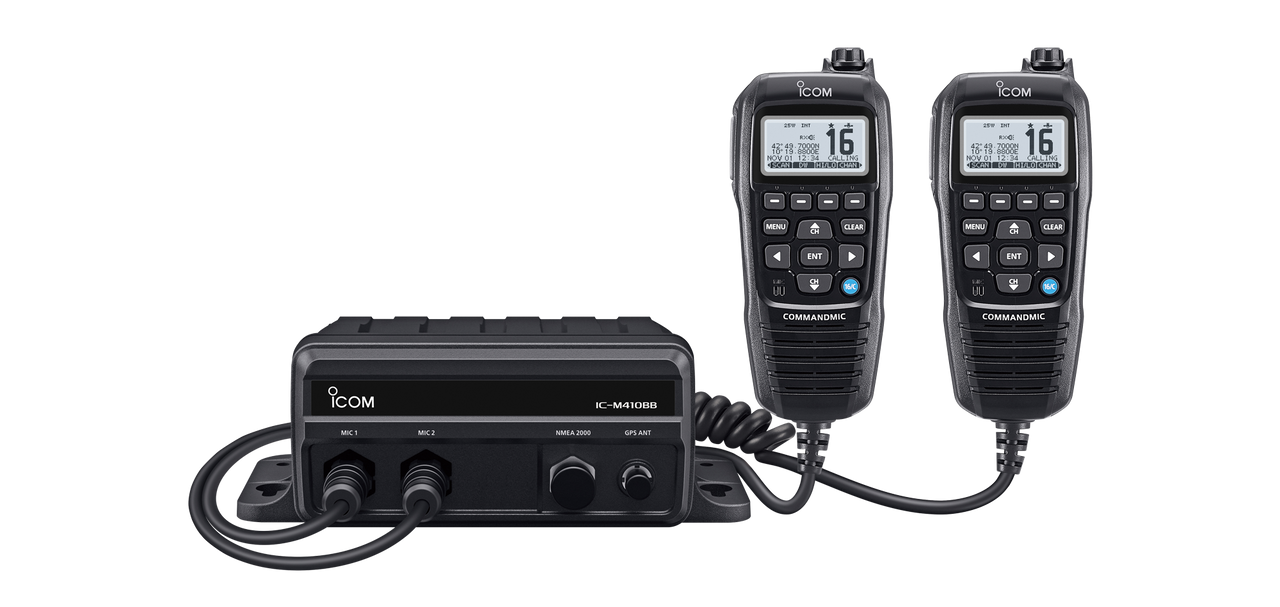

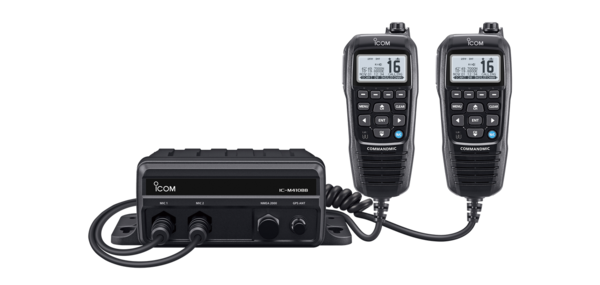

| IC-M410BB (Black box RF unit and CommandMic) | IPX7 (Waterproof protection)* |
* Except for the DC power connector, NMEA In/Out leads and AF Out leads.
