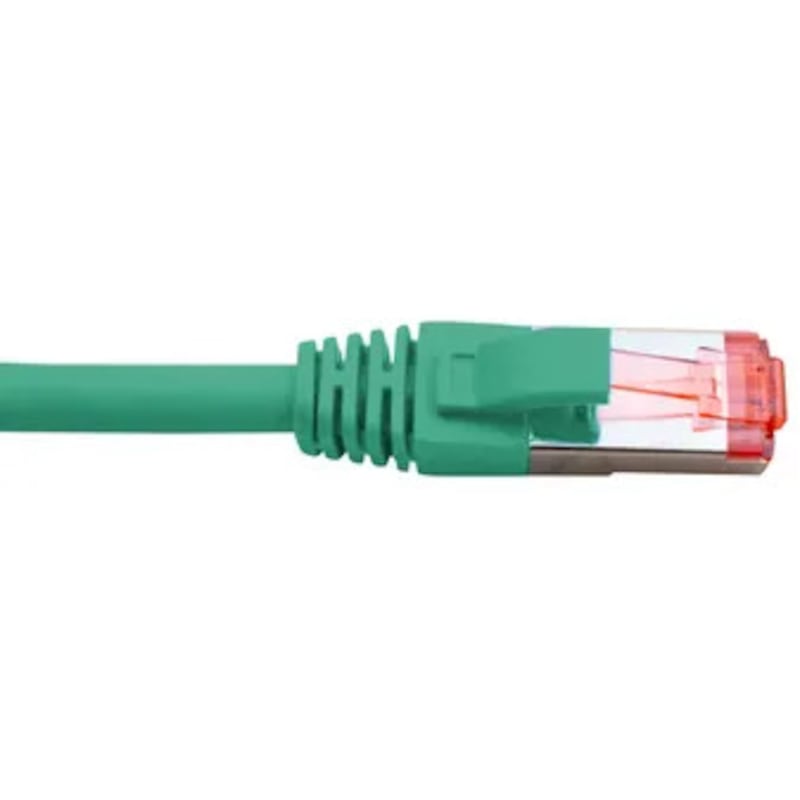

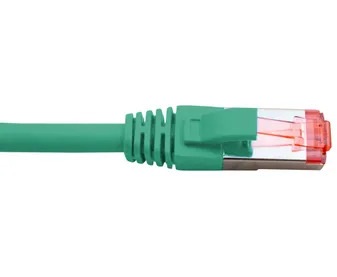

Hypertec 1m RJ45-RJ45 Cat6A 4 Pair LSZH Unshielded Patch Lead Green

Category 6a (CAT6 Augmented) is defined at frequencies of up to 500Mhz, twice that of CAT6.

• At these high speeds cross talk, in particular alien cross talk, present a significant issue to reliable operation.
• Shielding is particularly critical in environments with increased levels of noise such as hospitals, telco operations infrastructure, radio and television broadcast applications, X-ray theatres and in the vicinity of mains power transmission lines, switch yards and substations.
• Hypertec Shielded CAT6a Patch Lead cables feature double shielding where individual twisted pairs are foil shielded, before a final braided wire shield is wrapped around the complete cable bundle.
• All these shields are connected to the metal frame, which is an integral component of the Hypertec RJ connector.
• Keystone jacks
• Keystone couplers
• Unloaded keystone patch panels
• Solid conductor cable
• Patch leads

Features and Benefits

• Individually tested to ensure Cat6a component level compliance
• Fully shielded to minimise noise and ansure Cat6a performance is met
• Backward compatible with Cat5, Cat5E and Cat6
• Toolless termination of jacks reduce installation time
• Ground wire kit is included with patch panel for quick and easy earthing
• Patch leads are overall and individually shielded S/FTP for maximum Cat6a performance
• Factory tested to CAT6A Patch Lead performance standard to ensure quality and reliability
• Shielding: Overall braid plus each pair individually foil shielded
• Compliance: RCM/A-Tick (S008), TIA-568-C.2 Cat6A, RoHS
• Backward-compatible with CAT5, CAT5e and CAT6
• Jacket: Green LSZH

• A-Tick certified
• ETL conformant to TIA/EIA 568-C
• ISO/IEC 11801 & EN 50288
• ROHS Compliant

• Pack quantity: 1
• Wiring Scheme: T568A
• Shielding: Individually shielded pairs S/FTP
• Jacket material: LSZH
• Conductor size: 26AWG (7 strands)
• Conductor Material: Bare Copper
• Fully moulded strain relief boots
• Lead Diameter: 6.0mm nominal OD
