Hyperfan v2 200MM Intake + 200MM Exhaust Fan Complete Kit w/ v2 Climate Controller

• Are you having issues with heat?
• Problems with humidity control?
• Want the perfect air flow?

The new Phresh Hyperfan Climate Control v2 is easy to use with complete control of your environment. You can set your desired temperature as well as minimum fan speed. It can automatically control your both inlet and outlet Phresh Hyperfan v2;

• Extremely simple to use. Just set the two dials and forget!
• The lowest energy use of any fan/filter/controller system
• Thermostatically changes the fans RPM/speed as needed
• Constantly maintains the optimal day time temperature
• Fan speed falls back to custom set RPM on cold nights
• Operates 2 Hyper Fans at once (Inlet & outlet fans)
• All cords, plugs and adaptor cables supplied.
• Plug & Play
• This controller is designed for Hyperfans v2 or Silenced Hyperfans v2 only.

For Intake:

Hyperfan is the latest technology available in mixed flow fans. Hyperfan utilize aircraft "taper blade technology" to fully optimize the aerodynamic movement of air over the fan blade.

Static pressure is one of the most important factors in ventilation design. Simply put, static pressure refers to the resistance to airflow in a ventilation system's components and ductwork. The push of the air must be greater than the resistance to the flow. The higher the fans static pressure rating (pa) the greater it's ability to remove either hot or stale air from the environment.

200MM Hyper fan has it covered with 560pa on tap, one of the highest static pressures of any fan type. This coupling of taper blade technology optimised laminar stator design and "next gen" 9 pole digital EC motors results in a fan that delivers unrivalled high pressure, more linear airflow, quieter operations and the highest energy efficiency.

Specifications

• Size: 200MM (8" Inch)
• Max Air Flow: 1230 M^3/h - 725CFM - 342 LPS
• RPM: 4000
• Amps: 0.7A
• Weight: 2.8KG
• Noise: 69 dBA
• Fan Pressure: 560Pa/iwg2.25"
• Diameter: 200MM (8" Inch)
• Width: 248MM (including mounting bracket)
• Length: 170MM
• Housing: Stainless Steel
• Blade Design: Mixed flow - laminar blade
• Climate Rating: T
• IPX Rating: IPX2

• Removes 99.9% of bugs, molds, pollen and dust.
• Use for intake filtering, scrubbing and low intensity exhaust filtering.
• Ultra light filters use advanced nano carbon felt technology.
• Patented pleating for massive surface area and high air flow.
• Maintains 90% of air flow.
• 100% Recyclable / Made from 90% recycled materials.

• This air duct uses mylar and wire construction for durability and maneuverability. It's capable of handling temperatures up to 60 degrees Celsius and will not kink.

• Quick release stainless steel hose clamps. Just release the tension on the screw and flip up to instantly release the clamp. Allows for easy removal of the clamp for quicker flex duct removal when cleaning the glass in your air cooled fixture or accessing your lamp.

For Outake:

Hyperfan is the latest technology available in mixed flow fans. Hyperfan utilize aircraft "taper blade technology" to fully optimize the aerodynamic movement of air over the fan blade.

Static pressure is one of the most important factors in ventilation design. Simply put, static pressure refers to the resistance to airflow in a ventilation system's components and ductwork. The push of the air must be greater than the resistance to the flow. The higher the fans static pressure rating (pa) the greater it's ability to remove either hot or stale air from the environment.

200MM Hyper fan has it covered with 560pa on tap, one of the highest static pressures of any fan type. This coupling of taper blade technology optimised laminar stator design and "next gen" 9 pole digital EC motors results in a fan that delivers unrivalled high pressure, more linear airflow, quieter operations and the highest energy efficiency.

Specifications

• Size: 200MM (8" Inch)
• Max Air Flow: 1230 M^3/h - 725CFM - 342 LPS
• RPM: 4000
• Amps: 0.7A
• Weight: 2.8KG
• Noise: 69 dBA
• Fan Pressure: 560Pa/iwg2.25"
• Diameter: 200MM (8" Inch)
• Width: 248MM (including mounting bracket)
• Length: 170MM
• Housing: Stainless Steel
• Blade Design: Mixed flow - laminar blade
• Climate Rating: T
• IPX Rating: IPX2

These filters offer the ultimate in air scrubbing. Machine packed with 46mm RC-48 activated, certified virgin carbon to ensure maximum carbon density with less movement than other filters. These filters offer a cone shaped internal base for optimum air flow. The 51% open air custom mesh design helps make these filters half the weight of other filters. Sealed, bagged, boxed and shipped immediately after being manufactured for optimum life span, handling and presentation.

• Aluminum tops and bases for reduced weight. Half the weight of other filters.
• 46mm (1.8") RC-48 activated, certified virgin carbon bed.
• Machine packed carbon means more carbon and less movement.
• Cone shaped internal base for optimum air flow.
• Sealed, bagged, boxed and labeled directly after being manufactured for optimum life span, handling and presentation.
• 51% open air custom mesh.
• Unique "Anti Air Bypass" System.
• Large selection of sizes available to fit any application.
• Flange & pre-filter included.

• This air duct uses mylar and wire construction for durability and maneuverability. It's capable of handling temperatures up to 60 degrees Celsius and will not kink.

• Quick release stainless steel hose clamps. Just release the tension on the screw and flip up to instantly release the clamp. Allows for easy removal of the clamp for quicker flex duct removal when cleaning the glass in your air cooled fixture or accessing your lamp.

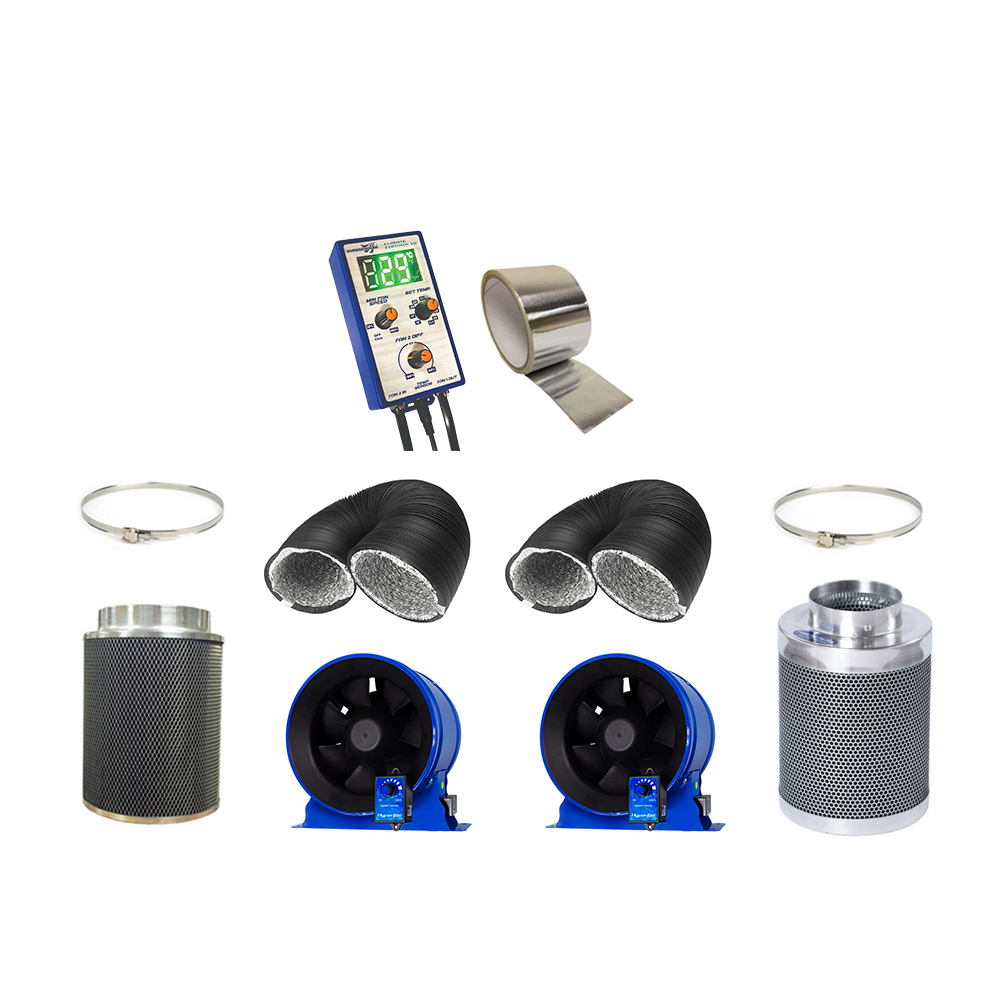

• [1] x Phresh Hyperfan v2 Climate Control - Operate Both Inlet & Outlet Fans
• [2] x Phresh Hyper Mixed Flow Inline Fan v2 w/ Controller - [Size: 200MM (8" Inch)]
• [1] x Phresh Intake Air Filter - [Size: 200 x 300MM - 550CFM]
• [1] x Original Phat Phresh Carbon Filter [Size: 200 x 500]
• [2] x Black PVC Coated Dual Layer Air Duct - 5 Meters | 203MM (8" Inch) | Ventilation
• [2] x Fan Ducting Clamp - 203MM (8" Inch)
• [1] x Silver Foil Aluminum Insulation Duct Tape - 50MM x 50M
