Hydrovar Variable Speed Pump Controller 240V 1 Phase 50Hz With 2 Years Warranty

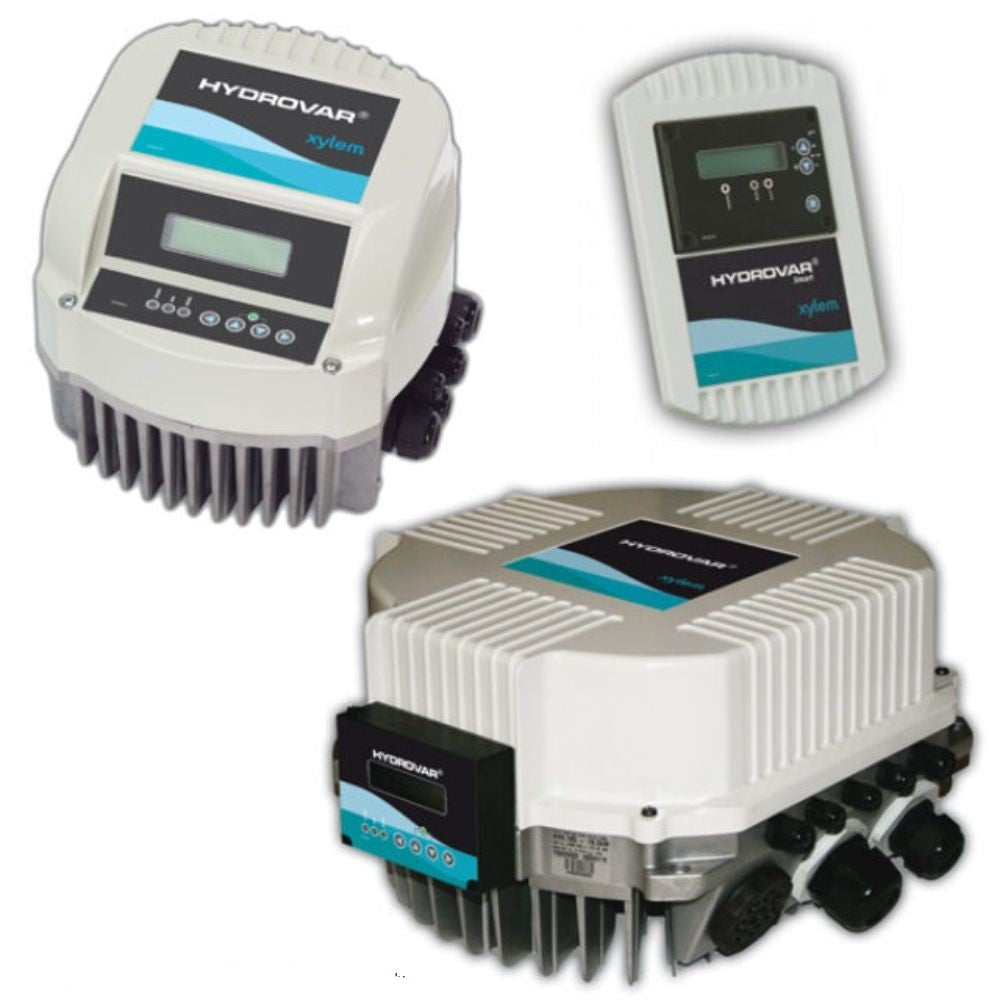

Hydrovar is not only a simple to use speed control system for direct motor mounting, in fact, the Hydrovar product represents an intelligent control system which accurately adapts the demand and offers plenty of advantages for both the operator and the system.

Hydrovar€š¬˜s unique modular design needs no additional master control and enables virtually any configuration of pumps: up to 8 master drives or a mix of master and slave drives, all without different controls, PLC or equipment. This is the long-awaited solution for high-level installations requiring fail-safe systems with a superior range of features, while its modularity also provides a cost-effective solution for low-level, reduced feature demands.

Frequency inverter Hydrovar type for single-phase and three-phase electric motor.

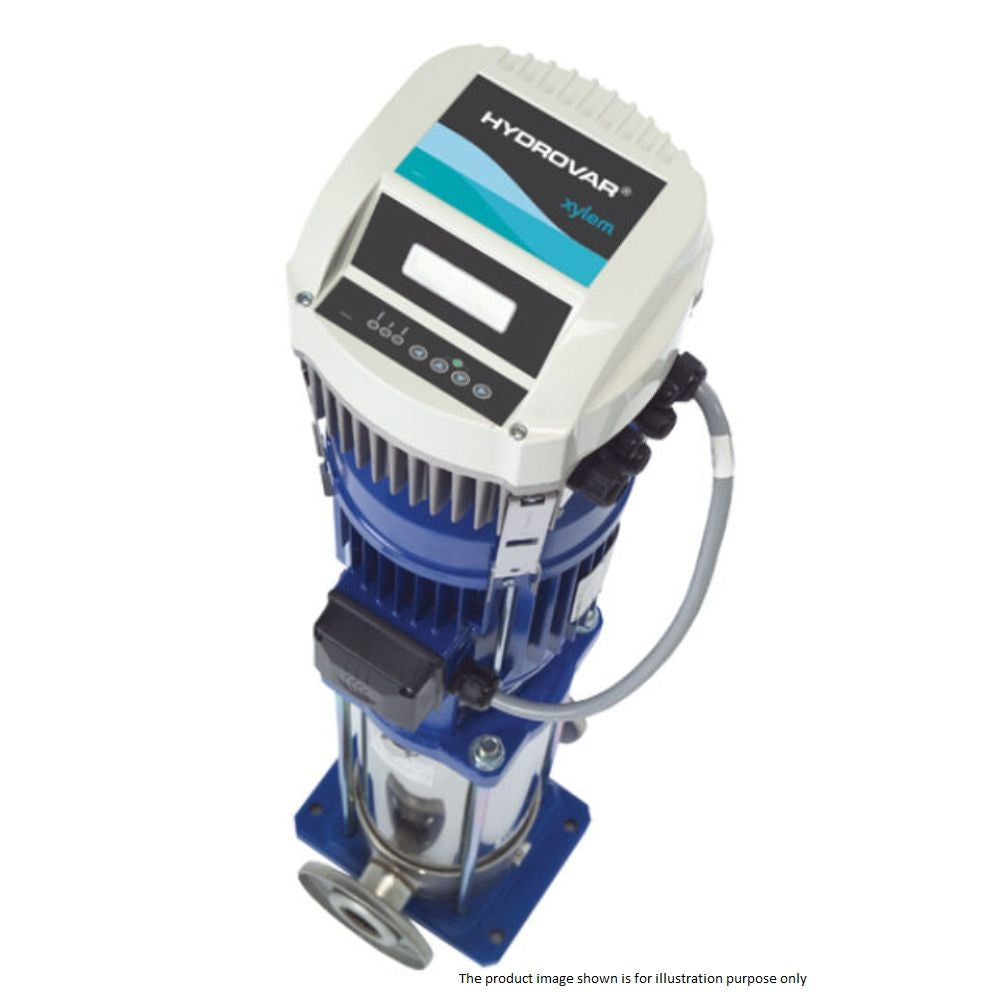

The Hydrovar advantages continue as they are also now offered pre-assembled to the highest efficiency multi stage pump on the market, the model e-SV. These packages ship complete; incorporating the pump, Hydrovar drive, and fused disconnect all prewired and programed, as one unit. The Hydrovar and Hydrovar Package are designed for centrifugal pump systems requiring constant pressure, flow control or differential pressure.

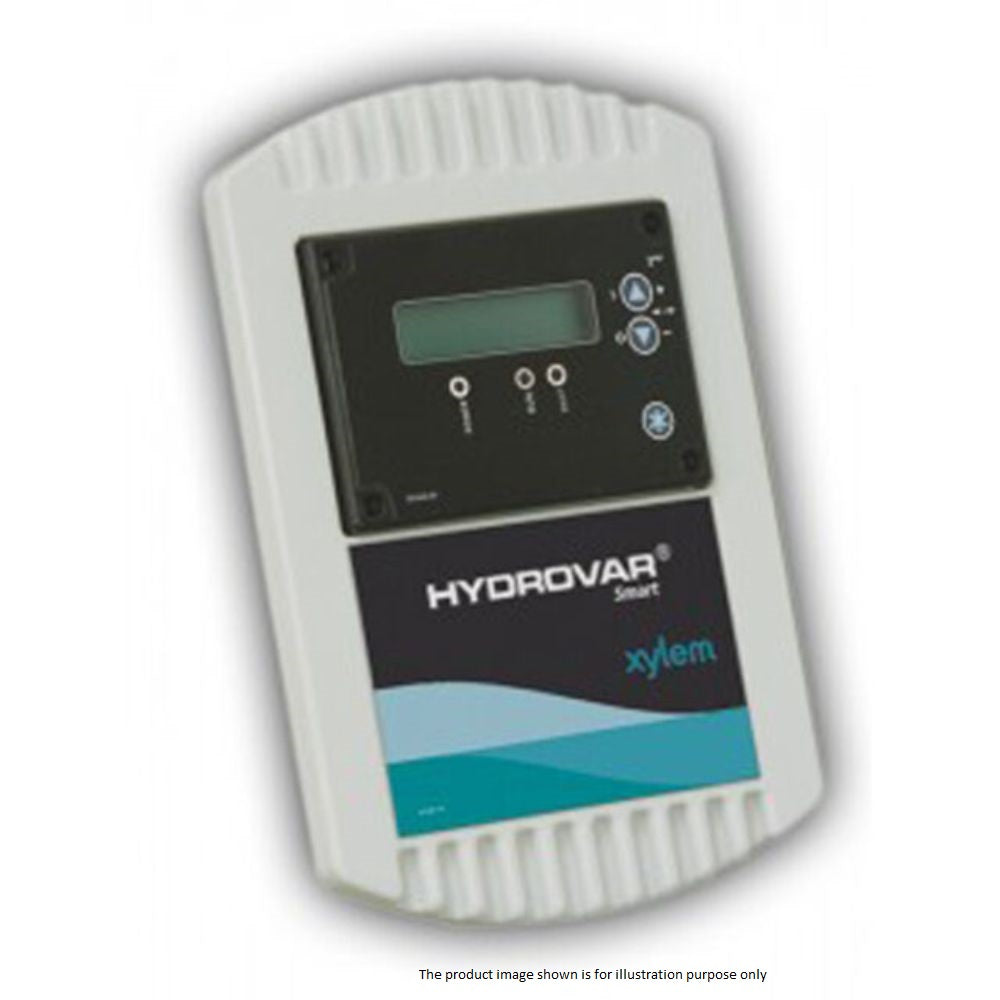

For applications over 22kW the Hydrovar Smart includes all control functions of a Hydrovar and can be combined with all standard frequency converters, regardless of the power range and the available supply voltage range.

Specifications:

• Power input:
  • 1 x 220-240 VAC -10%+15%
  • 3 x 380-460 VAC +/- 15%
• Motor output voltage:
  • 3 x 220-240 VAC
  • 3 x 380-460 VAC
• Power output: 1.5 - 11 kW
• Body: IP55
• Ambient temperature range: 0-52°C (Above 40°C with decreased power only)

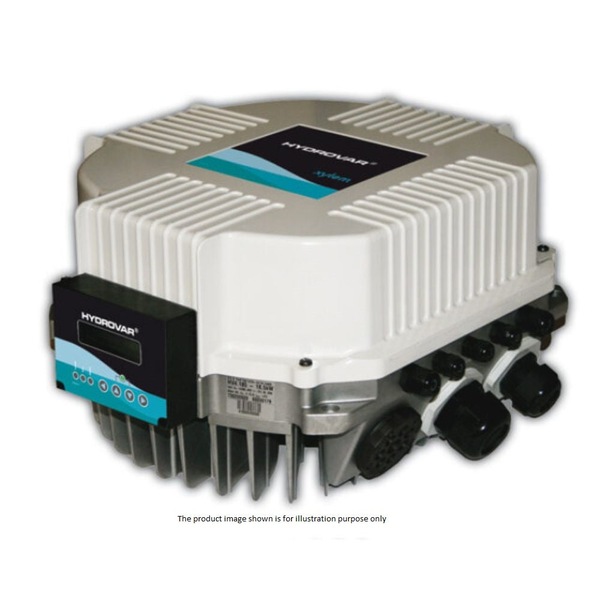

• Power input: 3 x 380-460 VAC +/- 15%
• Motor output voltage: 3 x 380-460 VAC
• Power output: 15 - 22 kW
• Body: IP55
• Ambient temperature range: 0-52°C (Above 40°C with decreased power only)

 Applications:

• For the efficient control of pumps and pumping systems across all markets and industries

Materials:

The product image shown is for illustration purpose only
