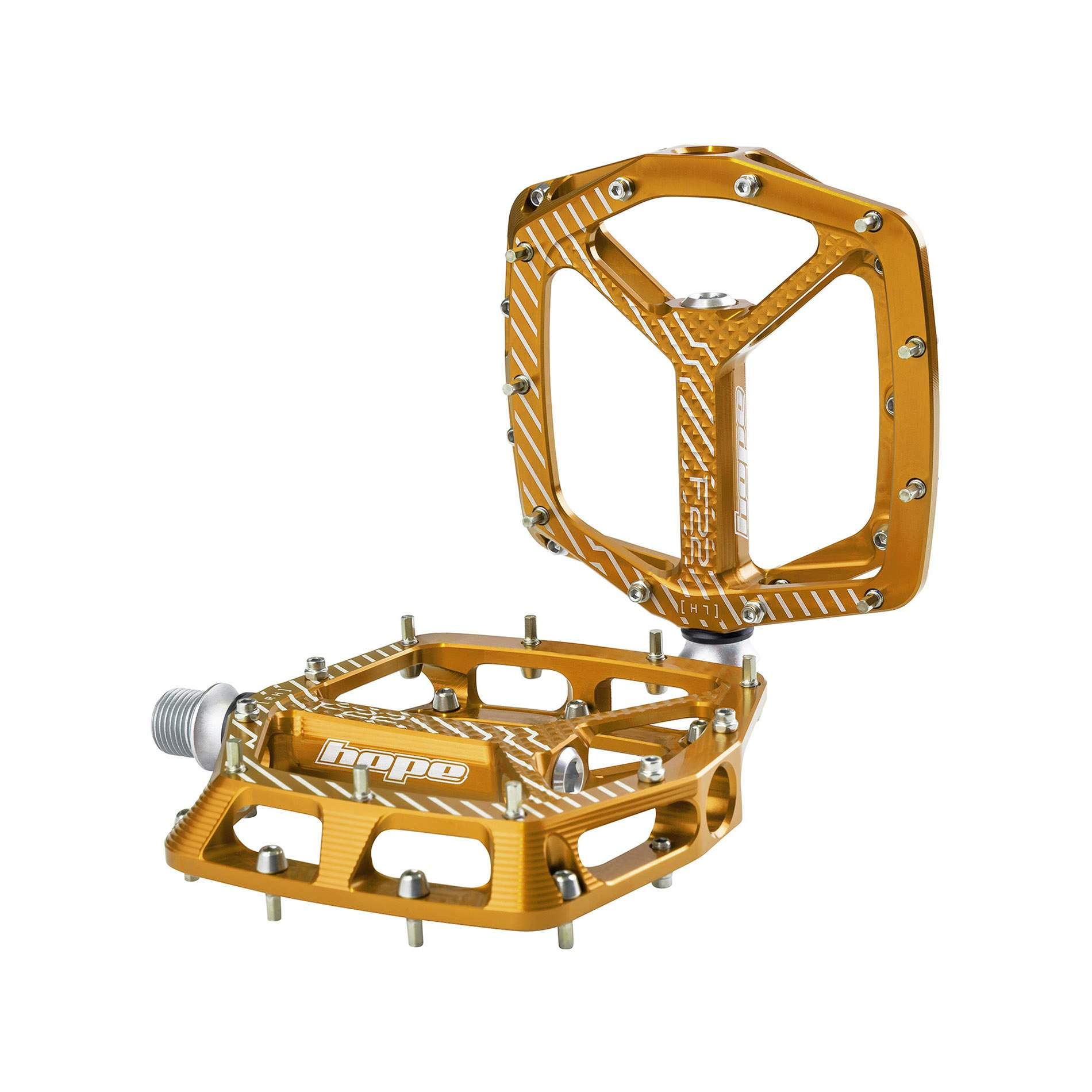

Hope F22 Pedals - Bronze

Drawing on extensive experience and knowledge, we have developed a flat pedal that excels in performance and durability.

Redesigned Platform Shape

• Platform size has increased compared to the F20 pedal (105 x 102mm usable).
• Careful consideration has been given to getting the right balance between foot stability and clearance in narrow gaps and ruts.
• Asymmetric shape designed to give full support to the shoe sole, extending to areas the F20 platform didn't.

All New Pin Design

• Reverse loading design prevents pins coming loose and means you have a much better chance of removing them when you want to.
• Unique hex shape for extra bite.
• Height adjustable using supplied spacers.
• Max pin height of 6mm.

Concave Profile

• Dual concave profile helps hold the shoe on the platform and give a superior planted feeling.
• Concavity enhanced by using shorter pins towards the middle of the platform and having no pin locations in the centre of the platform.

Pedal Internals

• Proven internal layout of F20 pedal remains for smooth long-term durability.
• Three cartridge bearings and an IGUS bush.
• Internal and external sealing prevents any ingress of dirt and debris.
• Fully serviceable and re-buildable.
• Revised axle design for improved strength and impact resistance.

Part Number: PDF22N, PDF22B, PDF22C, PDF22PU, PDF22R, PDF22S, PDF22A Barcode: 5056454914825, 5056454914801, 5056454914818, 5056454914832, 5056454914849, 5056454914856, 5056454976274 Product Code: HOP PD F22
