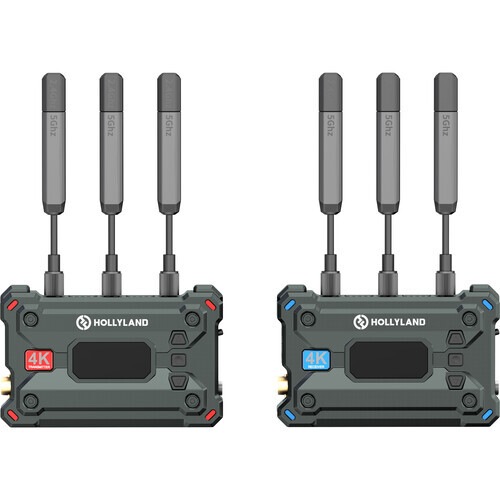

Hollyland Pyro S 4K HDMI/SDI Wireless Video Transmission System

Hollyland Pyro S 4K HDMI/SDI Wireless Video Transmission System

Hurry! 19 items left!
Price
$815
Collect 815 Everyday Rewards points
Log in to MyDeal to link your card
Shipping
Unable to calculate delivery for , please Contact Us Delivery unavailable to Change

24-48 hour dispatch
Quantity
Maximum item limit (19) has been reached.


Features

  • Wireless Transmitter and Receiver Set
  • Transmit UHD 4K30 Video up to 1300'
  • HDMI/SDI Inputs and Outputs
  • 2.4 and 5 GHz Frequency Bands
  • Supports UVC and RTMP for Streaming
  • 650' Transmission in Broadcast Mode
  • Smart Channel Scanning, Bright LCD
  • Low 50 ms Latency, 12 Mb/s Bit Rate
  • DC, L-Series, and USB-C Power Options

Each Pyro S unit includes a USB-C port for both powering the unit and supporting plug-and-play UVC operation. It can be easily connected to a computer for streaming and conferencing. A built-in frequency scanner ensures optimal transmission clarity, and the LCD display provides simple configuration. The unit can be powered by a DC power adapter or an optional L-series battery plate.

Long Distance, High Quality

Pyro S Wi-Fi technology allows one transmitter to connect to up to four receivers, with a line-of-sight range of 650' in Broadcast mode. In non-Broadcast mode, the transmitter can reach up to two receivers and two mobile devices, extending the range to 1300'.

Strong Signal Strength

With a stable transmission range of up to 1300', Pyro S maintains a low 50ms latency. It offers two modes for users to balance image quality and latency: HD mode (12 Mb/s bitrate) for superior quality, and Smooth mode for reduced latency.

Crisp and Sharp Images

Pyro S transmits UHD 4K30 video via HDMI and 1080p60 via SDI, delivering professional-grade clarity and detail for broadcast and filmmaking.

USB Video Class & RTMP

UVC allows seamless compatibility with various devices without extra software. For live streaming, simply input your wireless key and connect a network card to platforms like Zoom, YouTube, and TikTok.

Easy Setup & Power Options

The Pyro S supports preset grouping and pairing, simplifying setup. It can be powered by DC input, NP-F batteries, or a USB-C power supply (5-12V), making it convenient for stabilizer use.

What's in the Box

1 x Hollyland Pyro-S TX

1 x Hollyland Pyro-S RX

7 x Pyro-S Antenna

1 x Power Adaptor

1 x Cold Shoe Adaptor

Specifications:

Specs

Resolution

Not Specified by Manufacturer

Touchscreen

No

Video I/O

Transmitter: 1x HDMI 1.4b Input
Transmitter: 1x BNC (3G-SDI) Input
Receiver: 1x HDMI 1.4b Output
Transmitter: 1x BNC (3G-SDI) Output

Embedded Audio

HDMI/SDI

Latency

50 ms

Video Format

HDMI
UHD 4K: 30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
SDI
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50

Power Consumption

Transmitter: 11 W
Receiver: 8 W

Mounting

1/4"-20 Female

Display

Panel Type

Transmitter/Receiver: LCD

Resolution

Not Specified by Manufacturer

Aspect Ratio

Not Specified by Manufacturer

Touchscreen

No

Inputs / Outputs

Video I/O

Transmitter: 1x HDMI 1.4b Input
Transmitter: 1x BNC (3G-SDI) Input
Receiver: 1x HDMI 1.4b Output
Transmitter: 1x BNC (3G-SDI) Output

HDCP Support

Not Specified by Manufacturer

Embedded Audio

HDMI/SDI

Audio I/O

No

Power I/O

Transmitter/Receiver: 1x Barrel Input

Other I/O

Transmitter/Receiver: 1x USB-C

Encryption

No

Wireless

Wireless Range

1300' / 396.2 m (Line-of-Sight)
650' / 198.1 m (Line-of-Sight)

Channel Bandwidth

40 MHz, 20 MHz

Frequency Range

5.15 to 5.25 GHz
5.25 to 5.35 GHz
5.47 to 5.725 GHz
5.725 to 5.85 GHz
2.412 to 2.484 GHz

Latency

50 ms

RF Sensitivity

-85 dBm

Wi-Fi

Wi-Fi 4 (802.11n); Dual-Band (2.4 & 5 GHz)

Bluetooth

No

Mobile App Compatible

Yes: Android & iOS

Cellular Support

No

Format Support

Video Format

HDMI
UHD 4K: 30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
SDI
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50

Video Signal Conversion

No

Wireless Video Compression

Uncompressed

Timecode Support

Yes

Power

Input Power

6 to 16 VDC

Power Consumption

Transmitter: 11 W
Receiver: 8 W

Mounting

Mounting

1/4"-20 Female

Environmental

Environmental Protection

No

Certifications

No

Operating Temperature

14 to 113°F / -10 to 45°C

Storage Temperature

-40 to 140°F / -40 to 60°C

General

Material of Construction

Magnesium

Dimensions

Transmitter/Receiver: 4.4 x 2.8 x 1.3" / 112 x 71.2 x 34.1 mm

Weight

7.3 oz / 207 g

Weight

Transmitter/Receiver: 7.3 oz / 207 g

GTIN: 6976068115496
