HIGH QUALITY TDS METER FOR HYDROPONIC GROWERS
Measuring Total Dissolved Solids in your water system
and determine how much nutrient to use for you plants
This is a fully Water Proof Unit
What is TDS?
Total Dissolved Solids (TDS) are the total amount of mobile charged ions, including minerals, salts or metals dissolved in a given volume of water, expressed in units of mg per unit volume of water (mg/L), also referred to as parts per million (ppm).
TDS is directly related to the purity of water and the quality of water purification systems and affects everything that consumes, lives in, or uses water, whether organic or inorganic, whether for better or for worse.
What Are Total Dissolved Solids?
"Dissolved solids" refer to any minerals, salts, metals, cations or anions dissolved in water. This includes anything present in water other than the pure water (H20) molecule and suspended solids. (Suspended solids are any particles/substances that are neither dissolved nor settled in the water, such as wood pulp.)
In general, the total dissolved solids concentration is the sum of the cations (positively charged) and anions (negatively charged) ions in the water.
Parts per Million (ppm) is the weight-to-weight ratio of any ion to water.
A TDS meter is based on the electrical conductivity (EC) of water. Pure H20 has virtually zero conductivity. Conductivity is usually about 100 times the total cations or anions expressed as equivalents. TDS is calculated by converting the EC by a factor of 0.5 to 1.0 times the EC, depending upon the levels. Typically, the higher the level of EC, the higher the conversion factor to determine the TDS.
Why Should You Measure the TDS Level in Your Water?
The EPA Secondary Regulations advise a maximum contamination level (MCL) of 500mg/liter (500 parts per million (ppm)) for TDS. Numerous water supplies exceed this level. When TDS levels exceed 1000mg/L it is generally considered unfit for human consumption. A high level of TDS is an indicator of potential concerns, and warrants further investigation. Most often, high levels of TDS are caused by the presence of potassium, chlorides and sodium. These ions have little or no short-term effects, but toxic ions (lead arsenic, cadmium, nitrate and others) may also be dissolved in the water.
Even the best water purification systems on the market require monitoring for TDS to ensure the filters and/or membranes are effectively removing unwanted particles and bacteria from your water.

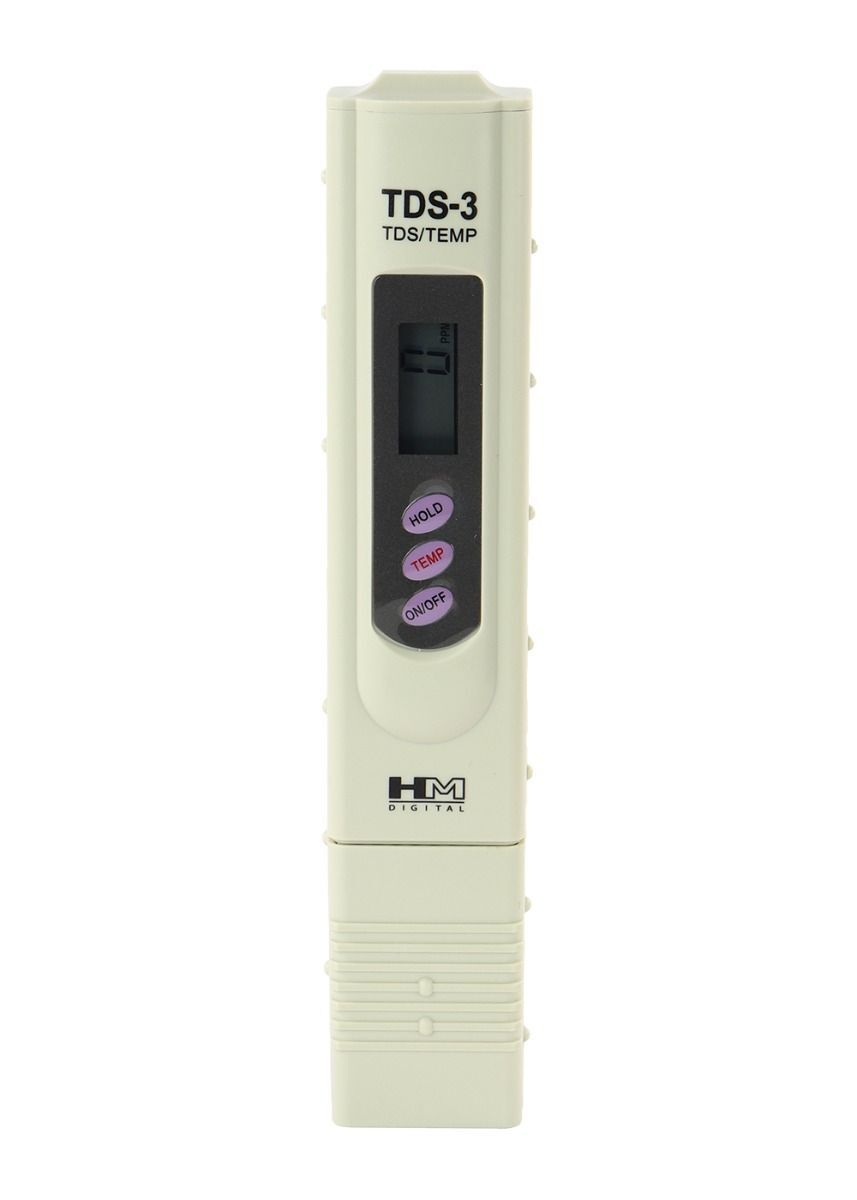

TDS METER Specification:
Range: 0-1999 ppm
Resolution: 1ppm
Accuracy: + 2% Full Scale
Calibration Solution: (optional): 1382 ppm
Batteries: 4x1.5v alkaline
ATC: 5 oC to 55oC
Environment: RH 95% MAX; 0 to 50 oC (32 to 122 F)
Dimension: 168x33x20mm
Weight: 70g
Package:

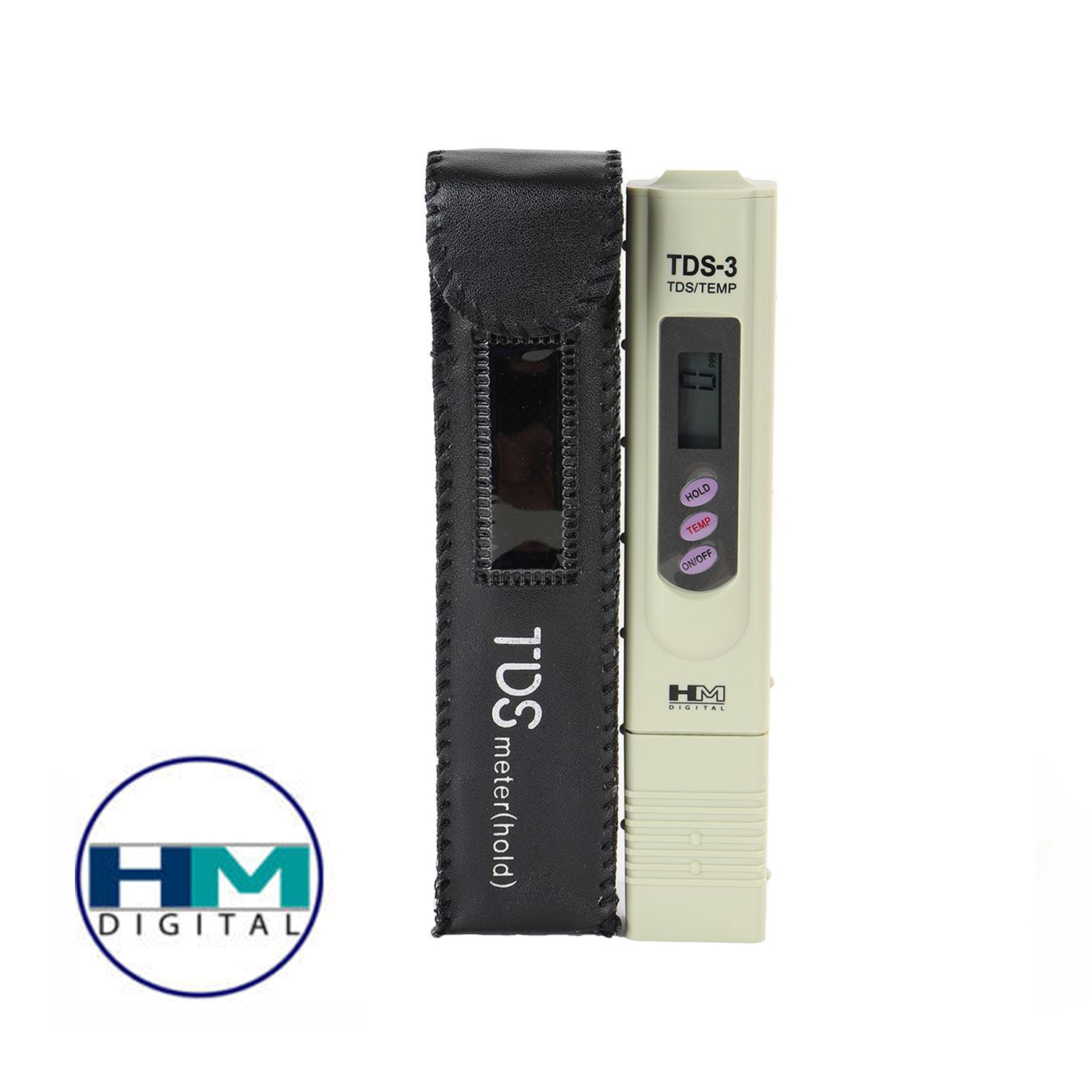

1 x TDS Meter (color may change)
