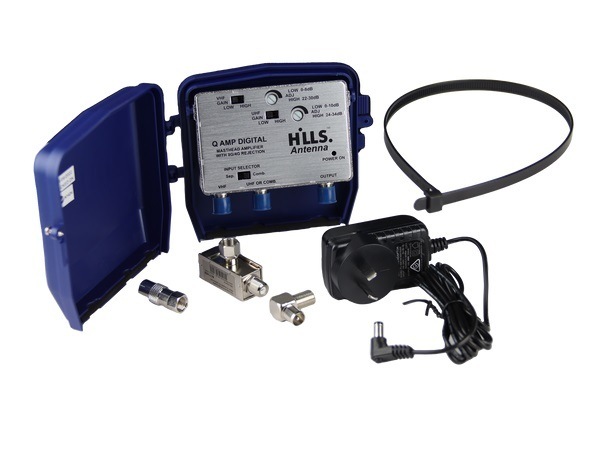

Hills Antenna VHF/UHF 4G Digital Masthead Amplifier

The Hills Antenna Q-Amp Digital Amplifier is a fully flexible high gain masthead amplifier, designed in Australia for domestic and commercial TV reception applications.

The Q-Amp contains separate VHF and UHF low noise pre-amplifiers, which are followed by a more powerful amplifier stage. A high pass filter ensures Band 1 (Ch 0 – 3) and FM signals are not amplified, ensuring better channel loading and improved impulse noise performance.

By switching either frequency to “low gain”, the pre-amplifier stage is bypassed and the gain is limited to avoid overloading the amplifier. This is recommended when signal levels are greater than approx. 60 dBuV.

Designed with a very low noise figure, minimum distortion and channel loading characteristics and adjustable gain, the Q-Amp can be adjusted to provide optimum reception in even the most difficult locations.

The Q-Amp is the solution to your many different installation applications. There’s no need for many different masthead amplifiers that are VHF only, UHF only or even wideband only. The Q-Amp provides it all in a compact weatherproof case

Features

• Amplifies Channels 6-12 (VHF) & 28-51 (UHF)
• Separate or combined VHF & UHF input options
• VHF/UHF Hi/Lo gain (prevents overloading)
• Adjustable Gains between amplifier stages
• Low noise figure
• Fully shielded enclosure to eliminate interference
• Weatherproof case included
• Power LED indicator
• Switchable inputs
• 4G/LTE rejection filter included
