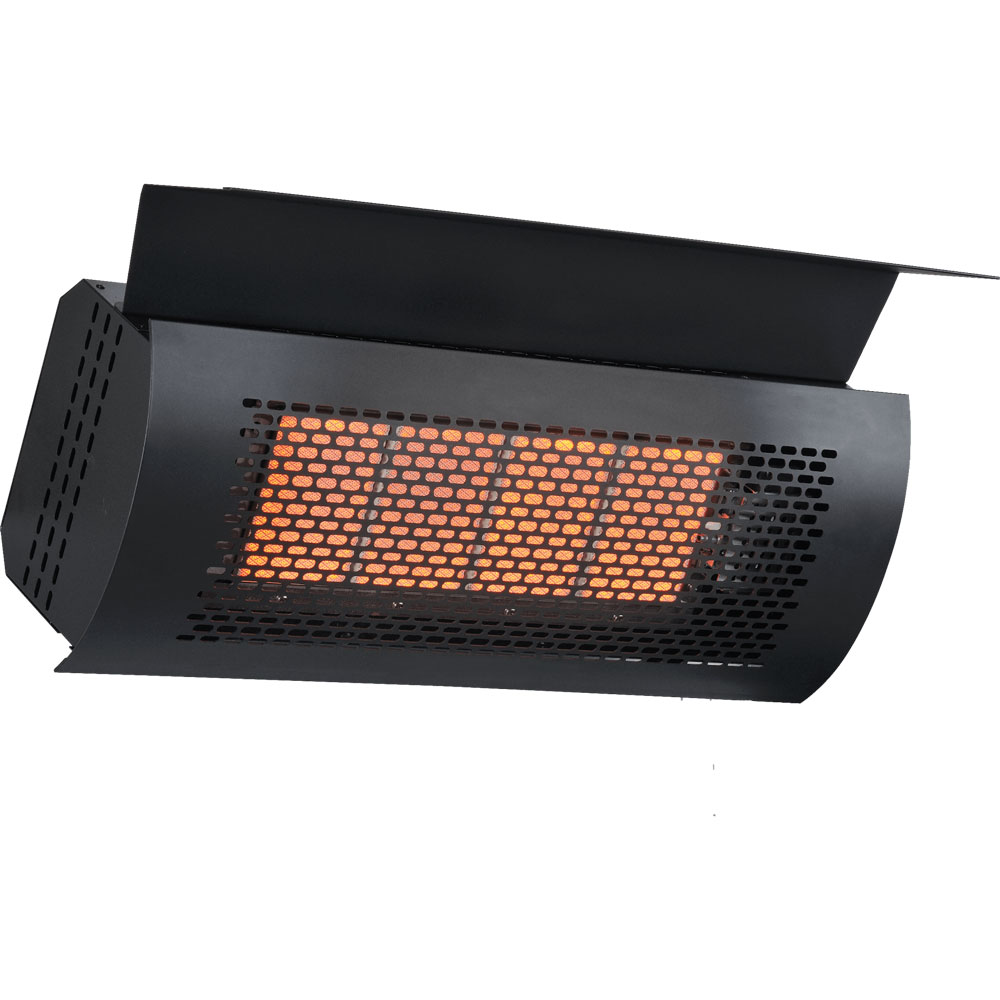

Heatstrip Wall Mounted Natural Gas 34MJ Outdoor Alfresco Heater

The new and upgraded HEATSTRIP Wall Mounted Natural Gas (NG) heater is a stylish addition to any outdoor area, where mains natural gas is preferred. World-class design aesthetics, heat output and performance, for both residential and commercial applications.

This wall-mounted gas outdoor heater is perfect for the following locations:

Residential Outdoor Gas Heating

• Al-fresco & outdoor dining areas
• Patios & outdoor kitchens
• Courtyards, balconies, verandas

Hospitality & Commercial Outdoor Gas Heating

• Outdoor cafes & restaurants
• Outdoor Pubs, Clubs, beer gardens, smoking and gaming areas

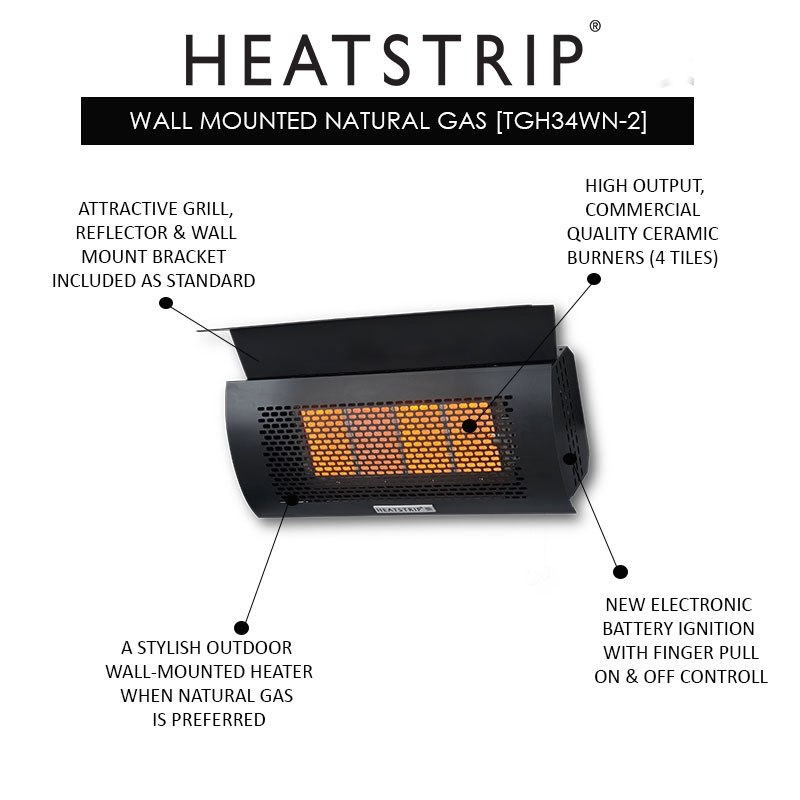

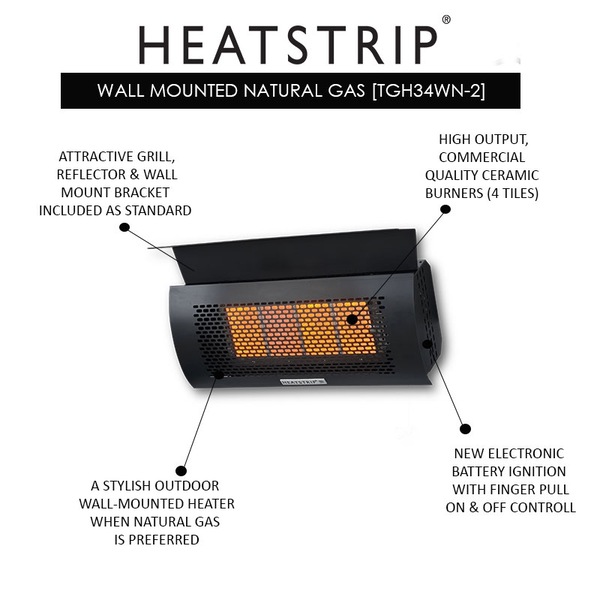

• 34 MJ, 4 tile commercial quality ceramic burner, for connection to mains Natural Gas (NG)

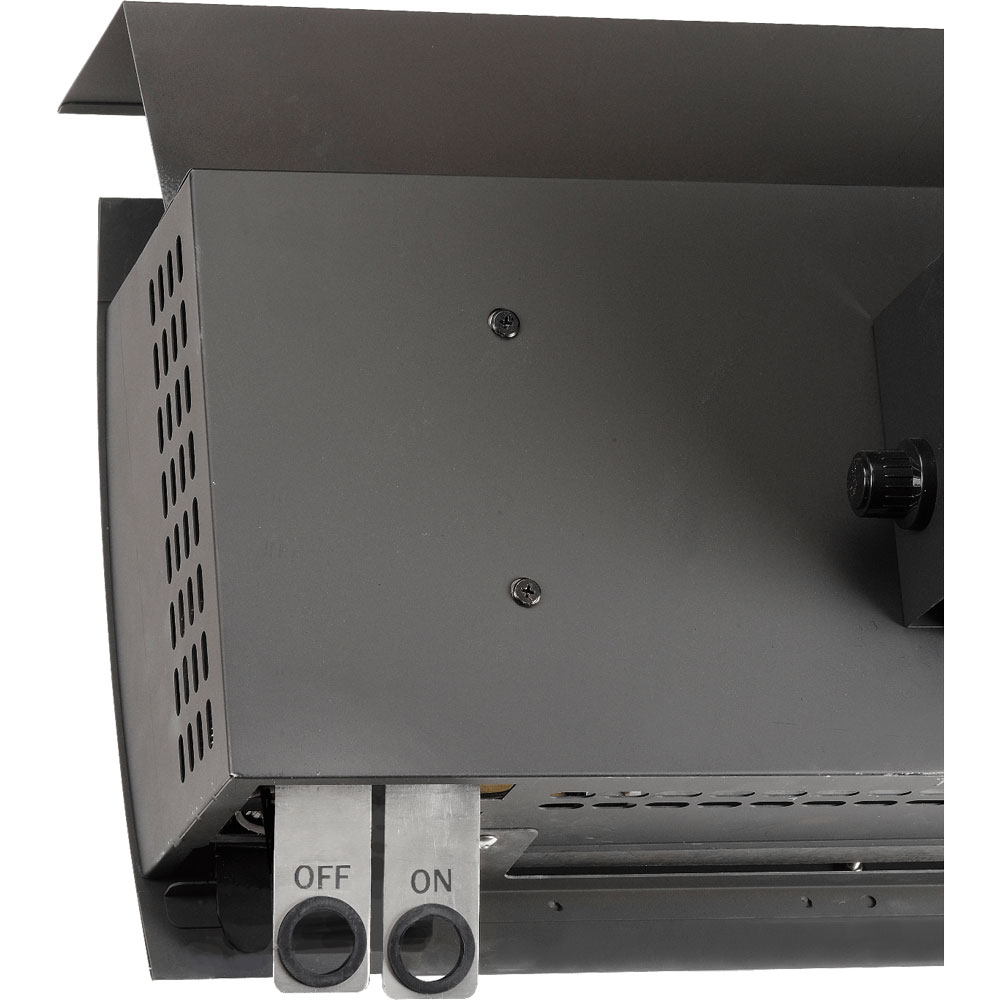

• NEW electronic finger pull ignition and flame failure device
• World-class wind protection rating at 16 kilometres an hour
• Constructed from stainless steel with high-temperature paint coating
• Protective grille and reflector included as standard, to guarantee safe operation
• Reflector design ensures that only a minimum of 500mm overhead clearance is required.
• Optional accessories for low clearance or ceiling
• Wall mounting bracket allows for multiple mounting angles and is extremely robust to provide strength and support
• 2-year residential and 1-year commercial warranty

• Minimum Recommended mounting height: 2.0m
• Maximum mounting height: 3.5m outdoors

For the standard heat reflector supplied with the heater, a 500mm overhead clearance is required. For low clearance mounting, please use the optional Heatshield (TGHAC-003) which provides for a 300mm overhead clearance.

For high ceilings or mounting flexibility, the optional Ceiling Mount Extension Pole (TGHAC-004) can be used to reduce the height of the heater by 500mm or for mounting from the ceiling when a wall is not available.

• 4 Tiles
• 34 MJ
• Ignition: Electronic finger pull
• Dimensions: 650mm (W) x 190mm (D) x 380mm (H)
• Heating area: 16m2
• Gas Type: NG Natural Gas
