HDMI Extender Over Cat5/6 with ARC & Infra-red Repeater

HDMI Extender over Cat5/6 up to 50 metres

The HDMI Extender over Single Cat5/6 with ARC (Audio Return Channel) and extends high definition video and audio signals and IR, at a distance of up to 164ft/50m over a single Cat5/6 cable. Features a digital audio breakout to extract audio, as well as an HDMI loop out for an additional HDMI output at Transmitter side. It has EDID management, which allows and encourages source and display “handshake” for seamless integration. With only one cost effective Cat5/6e cable, high definition sources with HDMI outputs can be connected to high definition displays with HDMI inputs over long distances. Deep color video, DTS-HD or Dolby True HD audio is supported and compatible with the extender.

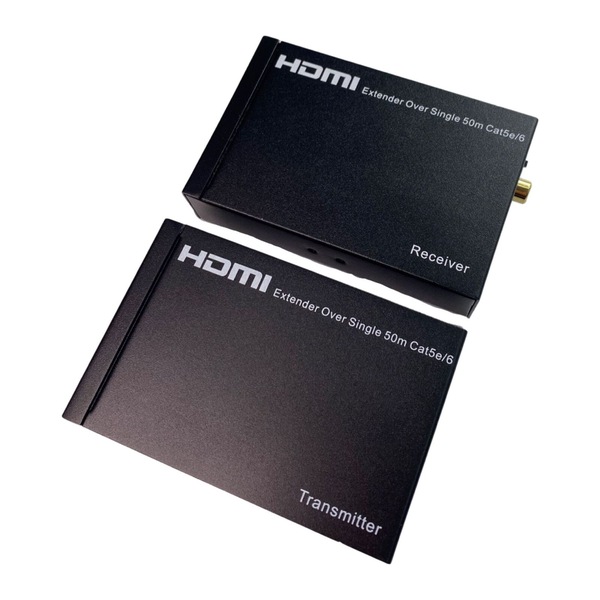

The extender includes two units: transmitting unit and receiving unit. The transmitting unit is used to capture the HDMI input with IR signals and carries the signals via one cost effective Cat5/6 cable. The receiving unit is responsible for equalizing the transmitted HDMI signal and reconstructing IR and serial control signals. The extender offers the most convenient solution for HDMI extension over a single Cat6/6e with long distance capability, and is the perfect solution for any application.

Features:
• Extends 1080p resolution up to 164ft/50m
• Supports ARC function
• Supports HDMI loop out function at Transmitter side
• Supports High Definition resolutions up to 1080P@60Hz
• Supports Bi-directional wideband IR control from source to display or from display to source

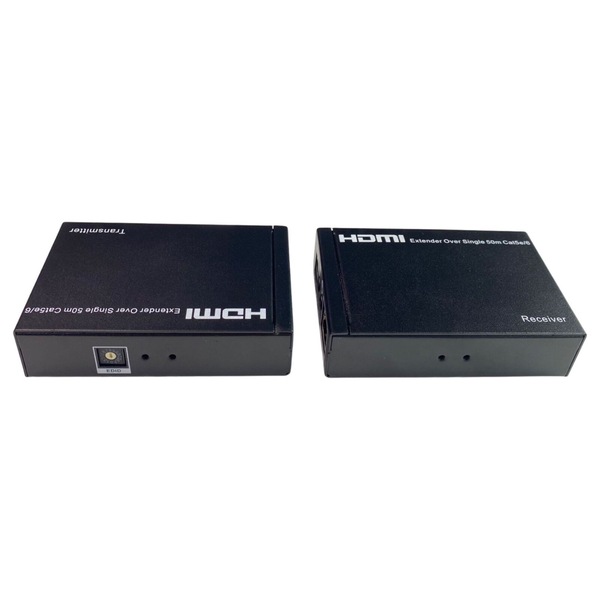

• Up to 16 different EDID configurations to meet most of use cases (including select local or remote display's EDID)
• Compact design for an easy and flexible installation

Technical Specification:
HDMI Compliance   HDMI 1.4b
HDCP Compliance    HDCP 1.4
Video Bandwidth   4.95 Gbps
Video Resolutions   up to 1080P@60Hz
Color Space   RGB, YCbCr 4:4:4, YCbCr 4:2:2
Color Depth   10-bit, 12-bit
Audio Formats   PCM 2CH, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital+
ESD Protection    Human body model — ±8kV (air-gap discharge) & ±4kV (contact discharge)

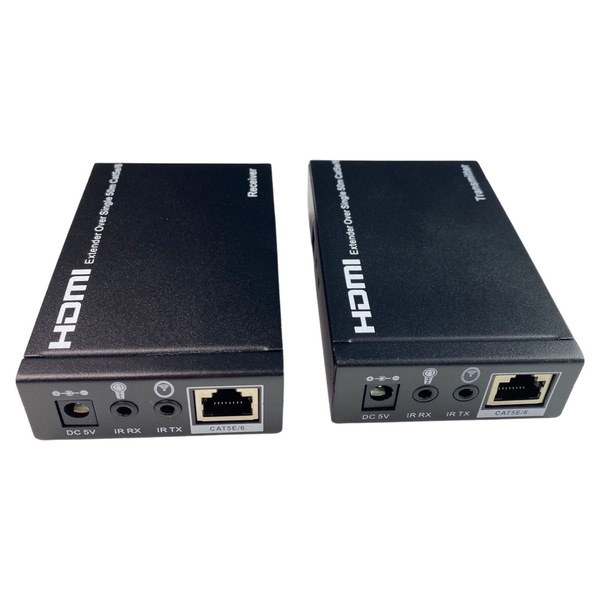

Connections
Inputs
TX:
1x HDMI Type A [19-pin female]
1x 3.5mm Stereo Mini-jack [Infrared Receiver]
RX:
1x RJ45 [HDMI & Propriety Data]
1x 3.5mm Stereo Mini-jack [Infrared Receiver]

Outputs
TX:
1x HDMI Type A [19-pin female]
1x RJ45 [HDMI & Propriety Data]
1x 3.5mm Stereo Mini-jack [Infrared Emitter]
RX:
1x HDMI Type A [19-pin female]
1x Toslink Out [S/PDIF]
1x 3.5mm Stereo Mini-jack [Infrared Emitter]

Mechanical
Housing    Metal Enclosure
Dimensions   TX/RX: 100mm [W] x 65mm [D] x 25.6mm [H]
Net Weight   TX: 178g RX: 176g
Power Supply   Input: AC100 - 240V 50/60Hz
Output: DC 5V/1A (US/EU standards, CE/FCC/UL certified)
Power Consumption (Max)    TX:3W RX: 2.2W
Operation Temperature   32 - 104°F / 0 - 40°C
Storage temperature   -4 - 140°F / -20 - 60°C
Relative Humidity   20 - 90% RH (no condensation)

Specifications:

12 Month Warranty

GTIN: 9351634026913
