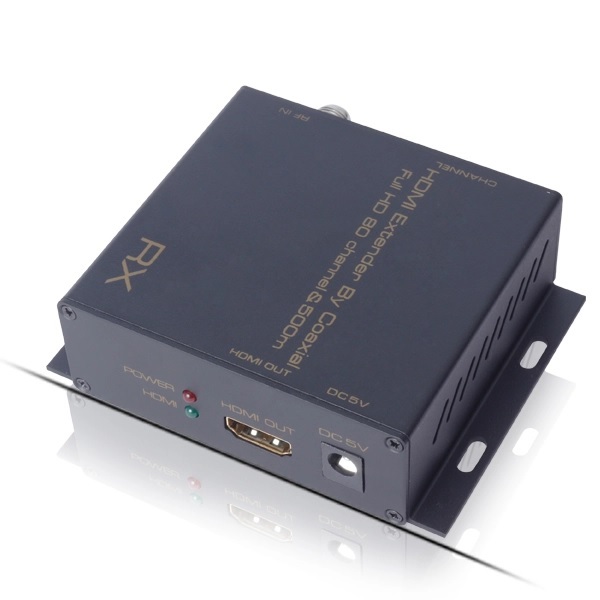

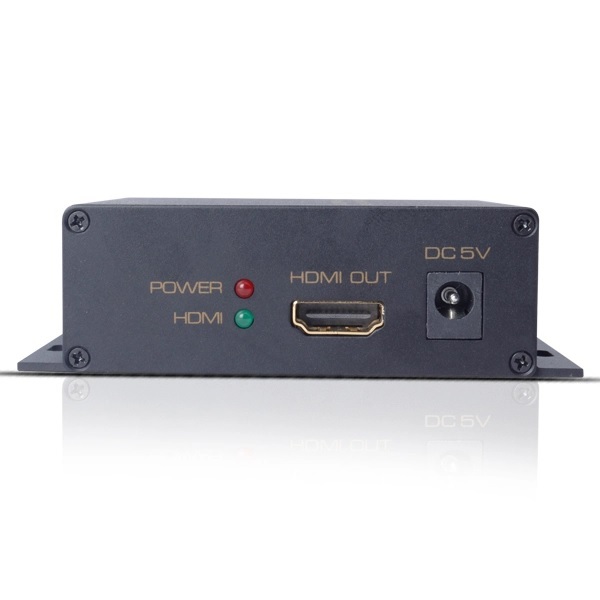

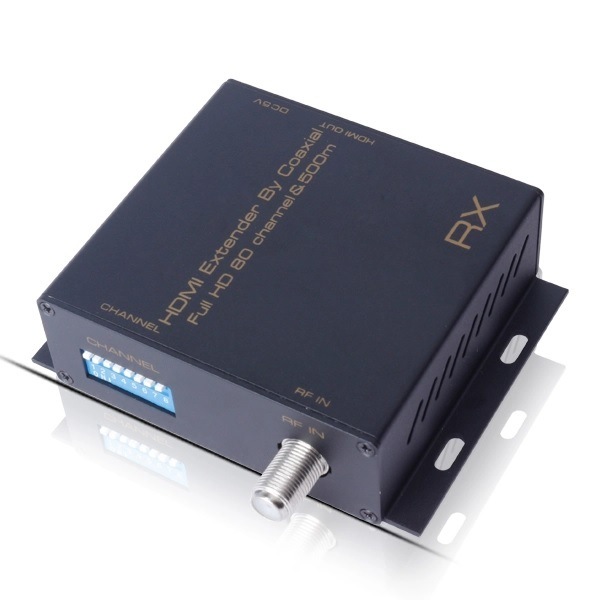

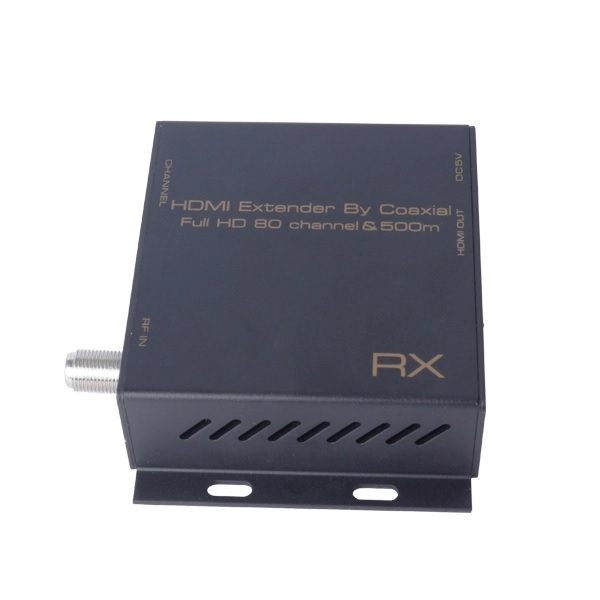

This unit does not work standalone - This is an additional Receiver that is suitable for use with our AA6146.
This HDMI to RF Coaxial Converter Modulator Receiver allows multiple receivers to be integrated into the RF System with the use of the AA6146 RF Coaxial Converter Modulator and Extender.
A very cost effective way of distibuting digital HDMI Signal over an existing analogue antenna installation. Able to transmit up to 500m range without amplification
Splitter Mode - Use of a Transmitter and multiple Receivers via Digital TV Mixers and Diplexers
Matrix Mode - Use of multiple Transmitters and Receivers via Digital TV Mixers and Diplexers
Specifications:
HDMI resolution : 24/50/60fs @ 1080p / 1080i / 720p / 576p / 576i / 480p / 480i
HDMI Audio Format : LPCM
HDMI Max bandwidth : 225MHz
HDMI Max baud rate: 6.75Gbps
Input/Output TMDS signal : 0.5~1.5Volts p-p(TTL)
Input/Output DDC signal : 5Volts p-p (TTL)
RF frequency range : 139~950 MHz
RF Channel B/W : 7/8 MHz
The number of Channel : 80
RF Output power : -6dBm
RF Connector type : F type/BNC
Coaxial cable Characteristic impedance : 75Ω
RF transmission distance : ≤500m SYV-75-5 coaxial standard cable
HDMI output cable distance : ≤15m AWG26 HDMI standard cable
TX Max working current : 650Ma
RX Max working current : 500mA
Power adapter : DC5V/2A
Operating Temperature range : -10 to +45℃
Storage Temperature range : -20 to +60℃
Operating Humidity range : 10 to 90%RH (No Condensation)
Storage Humidity range : 5 to 95%RH (No Condensation)
Case Dimension (L x W x H) : 94x74x28 (mm)
Weight : 240g
