FULL HIGH DEFINITION OVER AN IP NETWORK

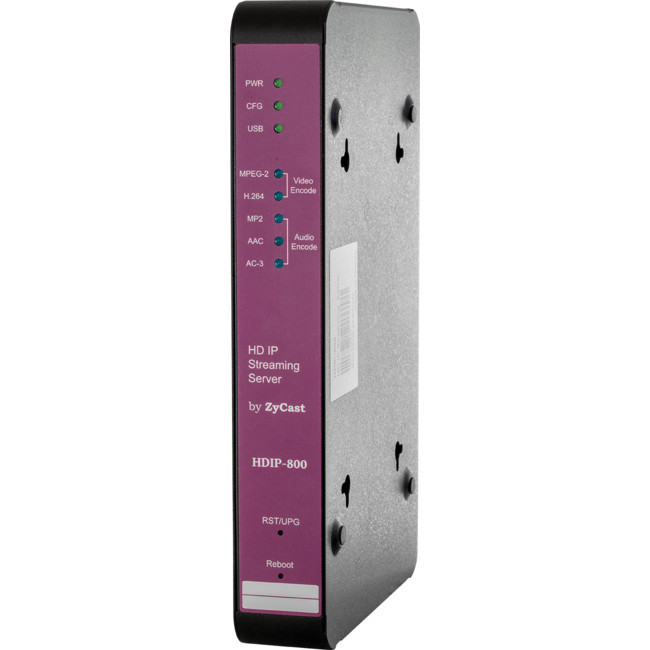

Resi-linx HDIP800 " digi-MOD IP " streaming server allows you to stream any AV source/s to multiple HD TV's or connected computers within the IP network with ease.

ENDLESS APPLICATIONS

The digi-MOD IP HD streaming server is perfect for all media applications including Digital Signage, HD Classrooms,Pro AV systems, Homes, Corporate Board rooms, CCTV IP Streaming and HD distribution over IP networks

digi-MOD IP can even be connected directly to the following brand TV's without the requirement of IP-STB's making it an economical solution

  • Sony Bravia Series
  • Samsung Smart TV
  • LG Smart TV

MULTIPLE INPUT OPTIONS

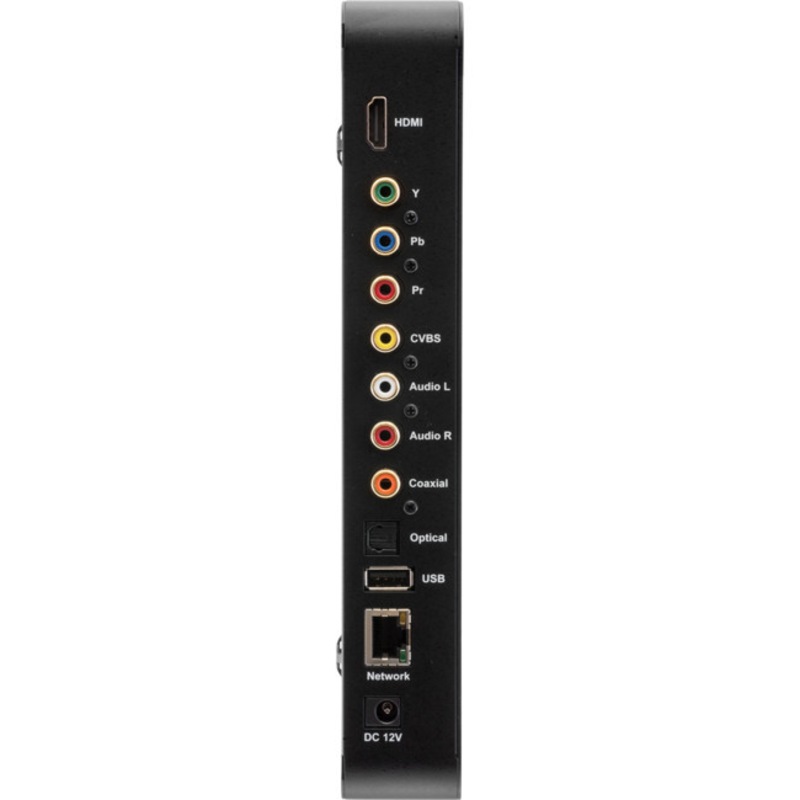

The IP streamer accepts a HDMI, component, composite video, USB and both Analogue and Digital audio inputs the HDIP800 can stream any content you require. More sources required? Simply buy a HDIP800 per source - it's that easy!

FEATURES:

  • HDMI, Component, Composite video inputs with auto detection
  • Dual mode H264 AVC / MPEG-2 selectable
  • Video Resolution from 480i to 1080p
  • Analogue, Coaxial and Optical audio inputs
  • Audio Format: - MPEG 1 Layer2 (MP2), AAC
  • AC-3 pass through
  • Easy Installation and use
  • Web based programming
  • GigE output port
  • Streaming Protocols
    • HTTP Server ( DLNA )
    • UDP/RTP multicast
    • UDP/RTP unicast
    • TCP unicast
  • Supported Clients
    • Sony Bravia Series
    • Samsung Smart TV
    • LG Smart TV

SPECIFICATIONS:

  • Interfaces

Ethernet Output

1Gpbs - RJ-45
USB ( optional ) USB 2.0
Video Input HDMI, YPbPr, CVBS
Audio Input Analogue, Coaxial, Optical
  • Encoding
Video Format MPEG -2, AVC
Audio Format MPEG 1 - Layer2 (MP2), AAC, AC-3 passthrough
Resolution 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Video Bitrate MPEG-2 HD: 10 to 20Mbps, MPEG-2 SD: 2 to 8Mbps, AVC HD: 2 to 10 Mbps, AVC SD: 1 to 4 Mbps
Audio Rate 128, 256, 384, 448, 512Kbps
Streaming Protocols HTTP Server ( DLNA ) UDP/RTP multicasting, UDP/RTPunicasting, TCP unicast
  • Misc
Digital Living Network alliance ( DLNA ) Media Server 1.5
Closed Caption Yes
Power Supply 12V DC 1.5 amp

Consumption

500mA
Dimension L- 236mm x W- 155mm x H- 35mm
Weight 940g
GTIN: 9328202020215
