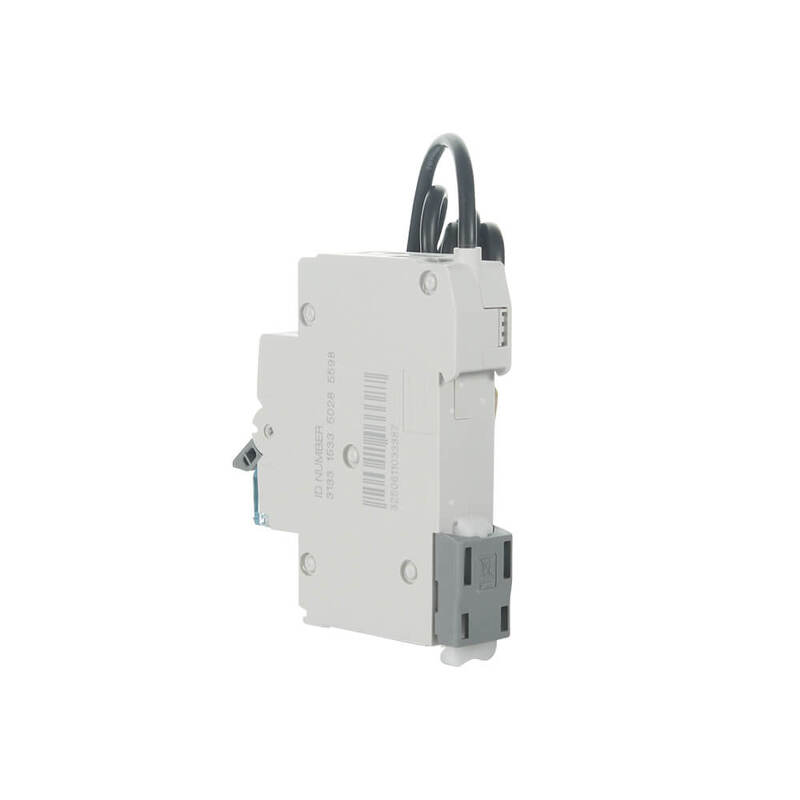

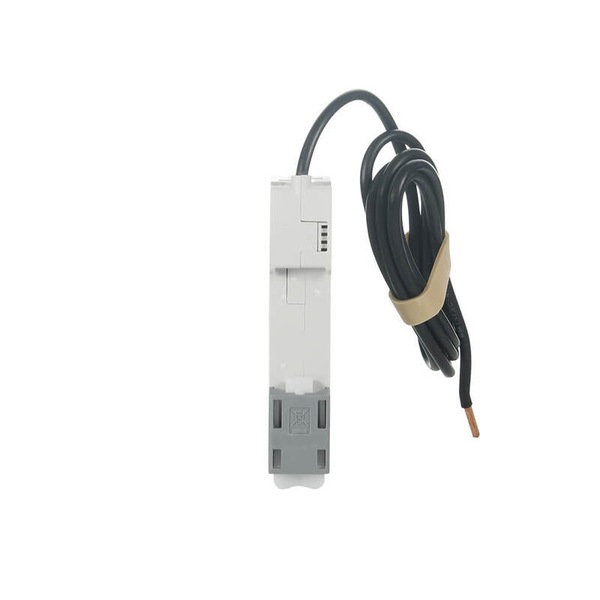

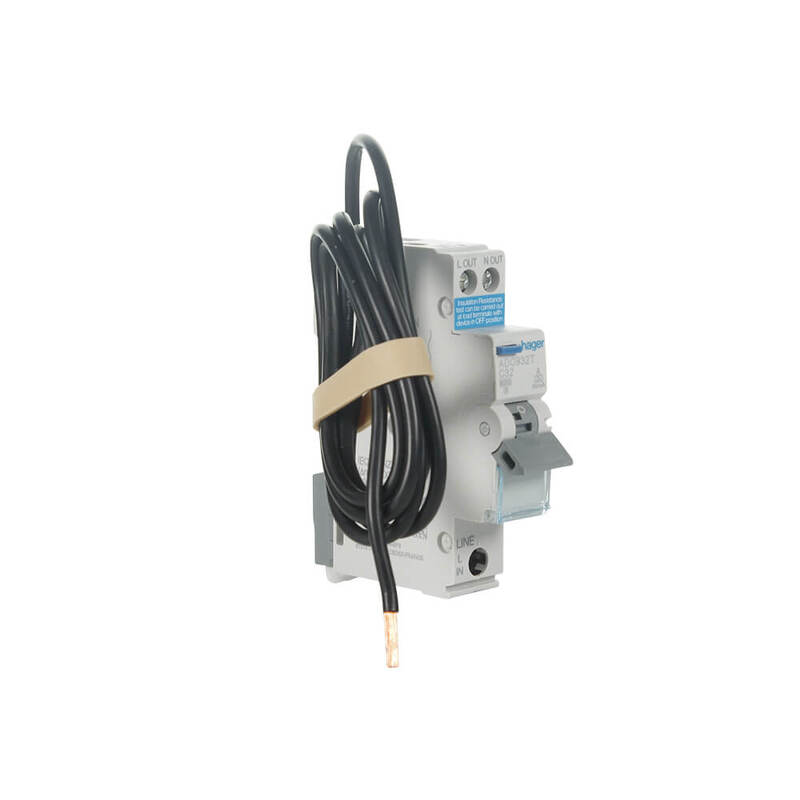

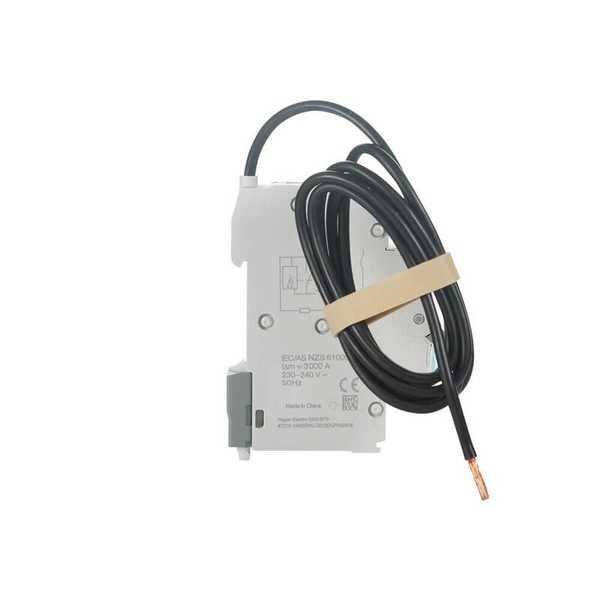

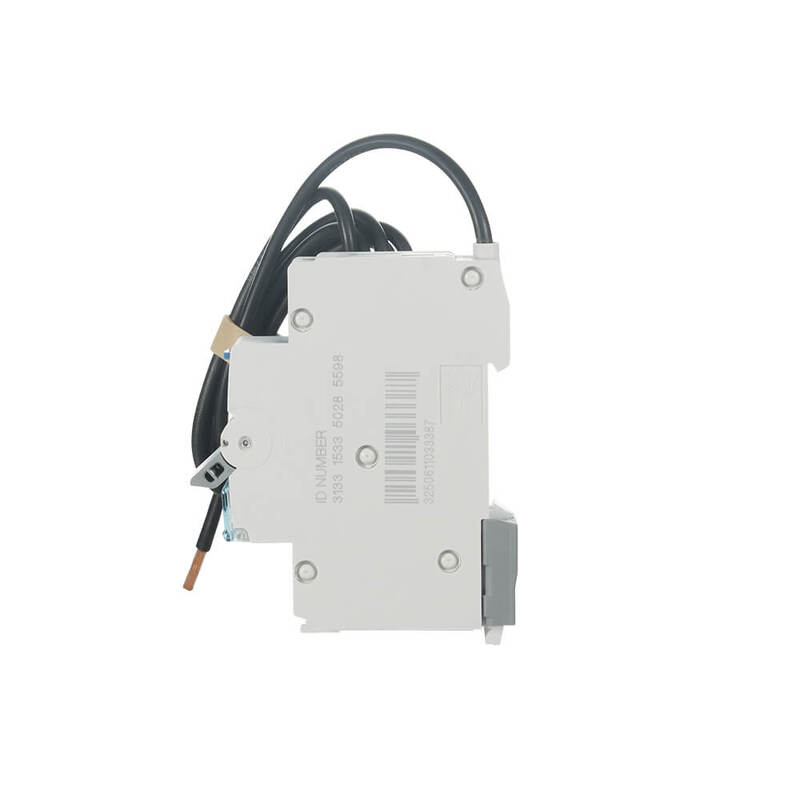

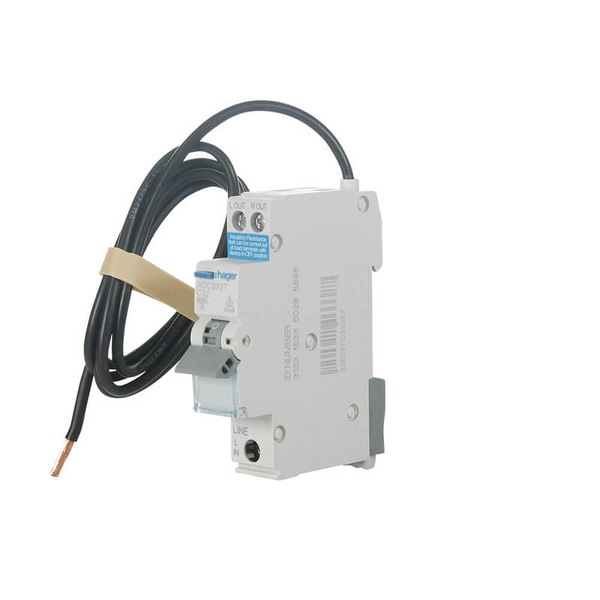

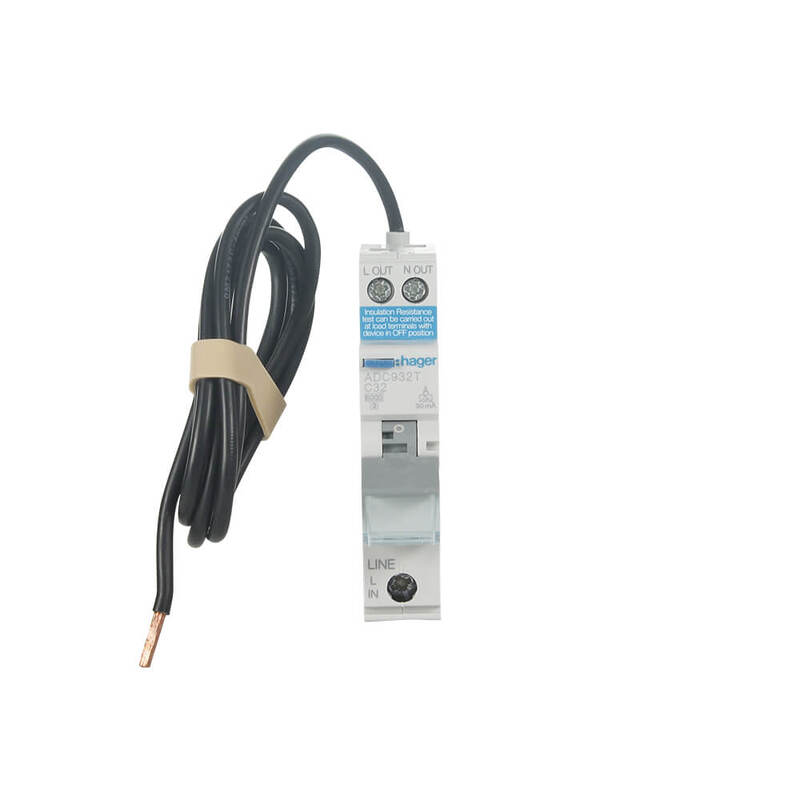

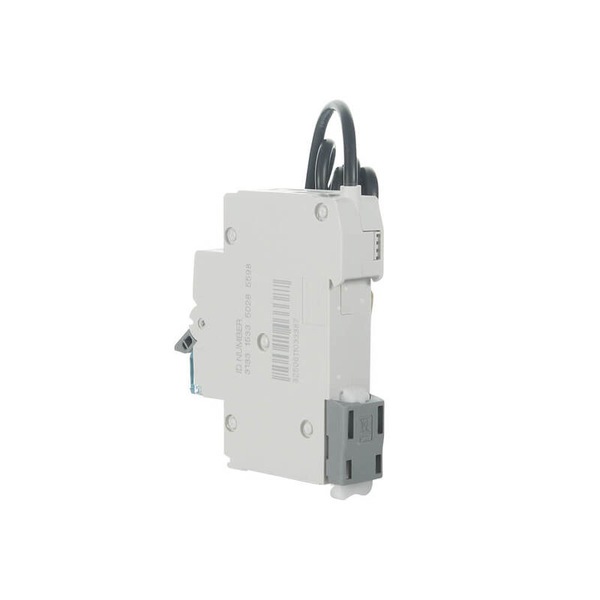

Hager ADC932T - 32A Single Pole and Neutral RCBO Breaker - 30mA 6kA

Hager ADC932T - 32A Single Pole and Neutral RCBO Breaker - 30mA 6kA

Be the first to review this product

Limited Stock!

Price	$35.14
	Collect 105 Everyday Rewards points Score 3x points on every order Ends 11:59pm 03/12/2024. Exclusions & T&Cs apply Log in to MyDeal to link your card
Shipping	$12.95 Australia-wide
	24-48 hour dispatch See delivery details

Quantity

Add to wishlist

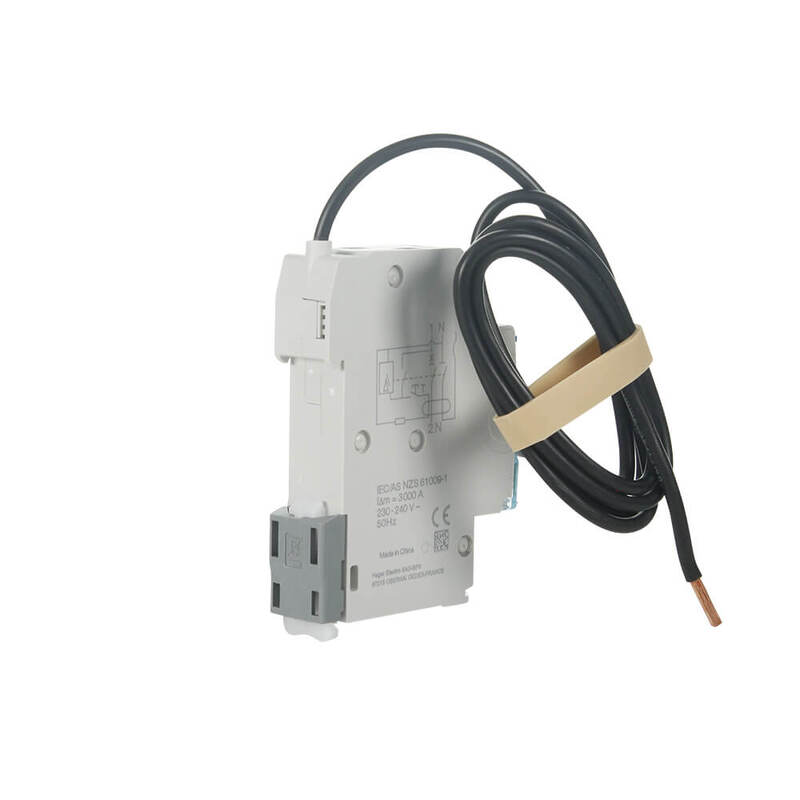

Hager ADC932T | 32A Single Pole and Neutral RCBO Breaker | 30mA 6kA

Description:

The Hager ADC932T is a cutting-edge 32A Single Pole and Neutral (SPN) RCBO Breaker, crafted to offer superior protection in electrical circuits. It integrates a 30mA rated residual operating current and a 6kA rated short circuit breaking capacity, ensuring effective safeguarding against electrical faults. Designed for professional electricians, this RCBO is ideal for installations requiring precise protection, including residential, commercial, and industrial settings.

Features:

Enhanced Protection: Features 30mA trip sensitivity and a 6kA interrupt capacity for robust defence against residual currents and short circuits.
Single Pole and Neutral: Offers comprehensive protection on both the live and neutral conductors within a single module design.
Versatile Use: Rated for 230/240 V AC supply with a frequency of 50 Hz, suitable for a wide range of electrical applications.
High Insulation Voltage: With a rated insulation voltage of 440 V and a maximum operating voltage of 264 V, it ensures safety and reliability.
Durable and Reliable: Built to endure with 2000 electrical cycles and 10000 mechanical operations, promising long-lasting performance.
Easy Installation: DIN rail type O (symmetrical) fixing mode, along with BIconnect terminals, simplifies the installation process.

FAQ:

Q: What sets the Hager ADC932T apart from other RCBOs?
A: Its unique Single Pole and Neutral configuration offers comprehensive circuit protection in a compact, one-module design, making it highly efficient for safeguarding electrical installations.

Q: Can the Hager ADC932T be used for heavy-duty applications?
A: Yes, with a 32A rated current and the capability to handle significant electrical loads, it's ideal for demanding applications that require reliable protection.

Q: Is the RCBO suitable for both residential and commercial installations?
A: Absolutely, its specifications make it versatile for use in a variety of settings, from homes to commercial buildings, ensuring safety across all installation types.

Q: How does the Hager ADC932T enhance safety during electrical faults?
A: By quickly tripping at the first sign of a residual current fault, it minimizes the risk of electric shock and fire, enhancing the overall safety of the electrical system.

Specifications:

Feature	Description
Neutral position	Right
Number of protected poles	1
Number of poles	2 P
Type of pole	1P+N
Fixing mode	DIN rail type O (symmetrical)
Curve	C
Number of modules	1
Top connection alignment for modular devices	Shifted terminal
Bottom connection alignment for modular devices	Aligned terminal
Rated short circuit breaking capacity Icn AC according to IEC60898-1	6 kA
Rated operational voltage Ue	230 / 240 V
Type of supply voltage	AC
Frequency	50 Hz
Rated insulation voltage	440 V
Max operating voltage	264 V
Rated impulse withstand voltage	4 kV
Rated residual operating current	30 mA
Rated current	32 A
Withstand not tripping on 8-20 μs wave	0.25 kA
Breaking and opening capacity	3 kA
min/max threshold value of the AC thermal operation	1.13 / 1.45 In
Magnetic regulating current	5 / 10 In
Electric current/temperature	-25°C/38.6 A ~ 70°C/26.6 A
Depth of installed product	70 mm
Height of installed product	85 mm
Width of installed product	17.7 mm
Frequency	50 Hz
Total power loss under IN	12.48 W
Power loss per pole at IN	8.06 W
Standards	IEC 61009-1, AS/NZS 61009-1
Protection index IP	IP20
Operating temperature	-25…70 °C

Warranty starts from Invoice Date

Domestic Use: 1 Year
Commercial Use: 1 Year
Warranty Method: Return to Sparky Direct

GTIN: 3250611033387
