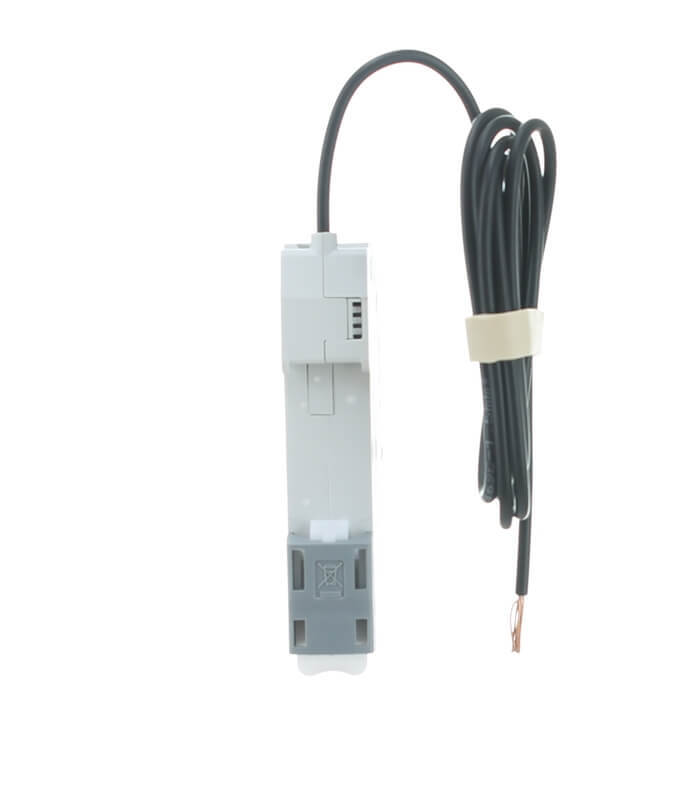

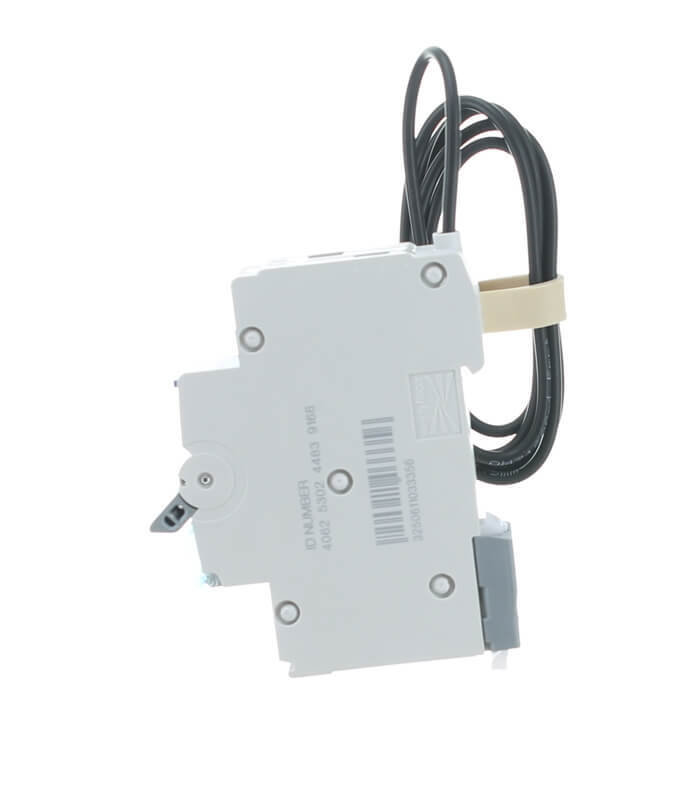

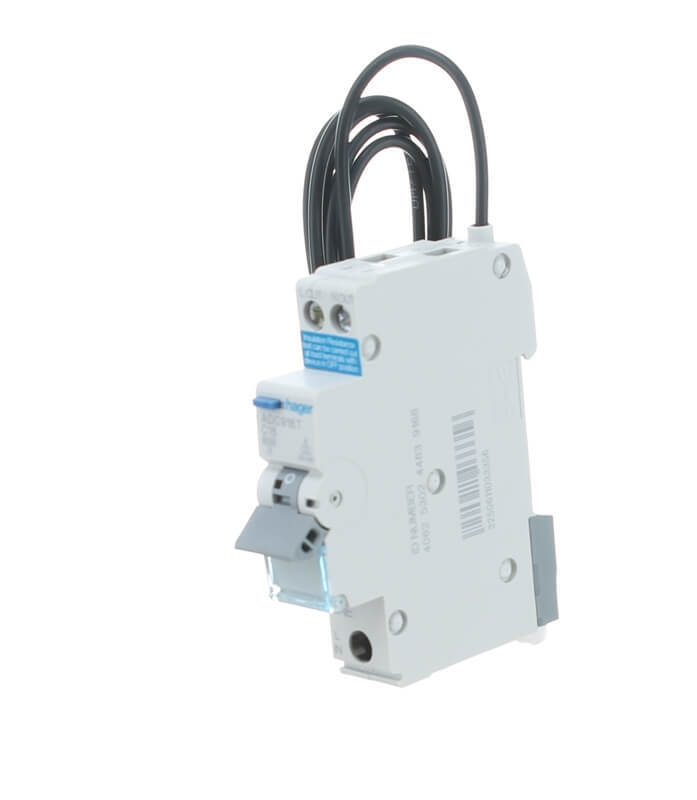

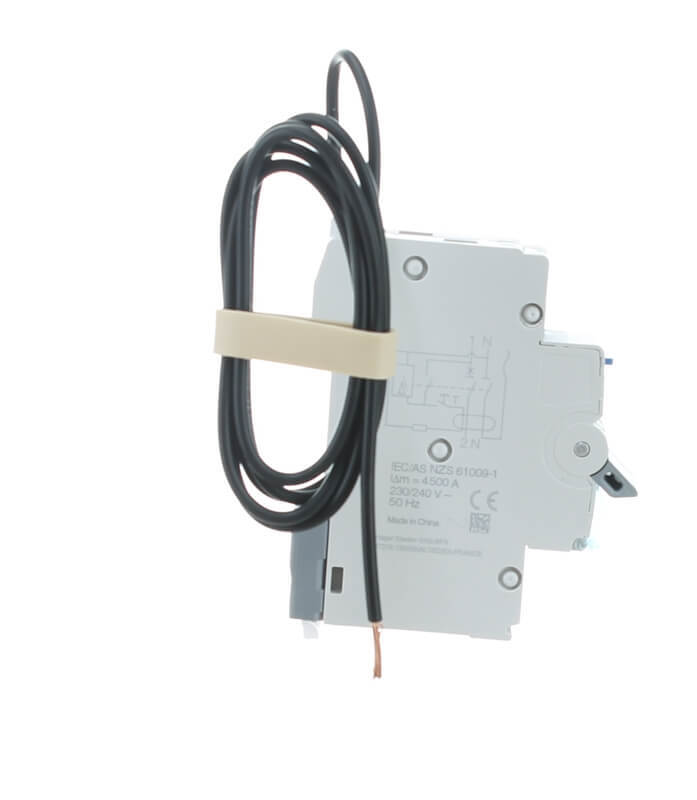

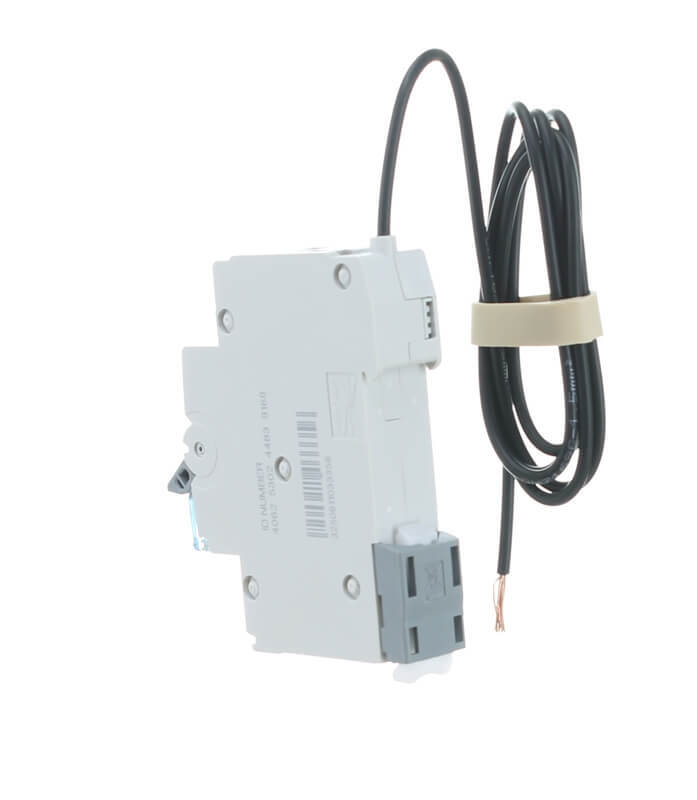

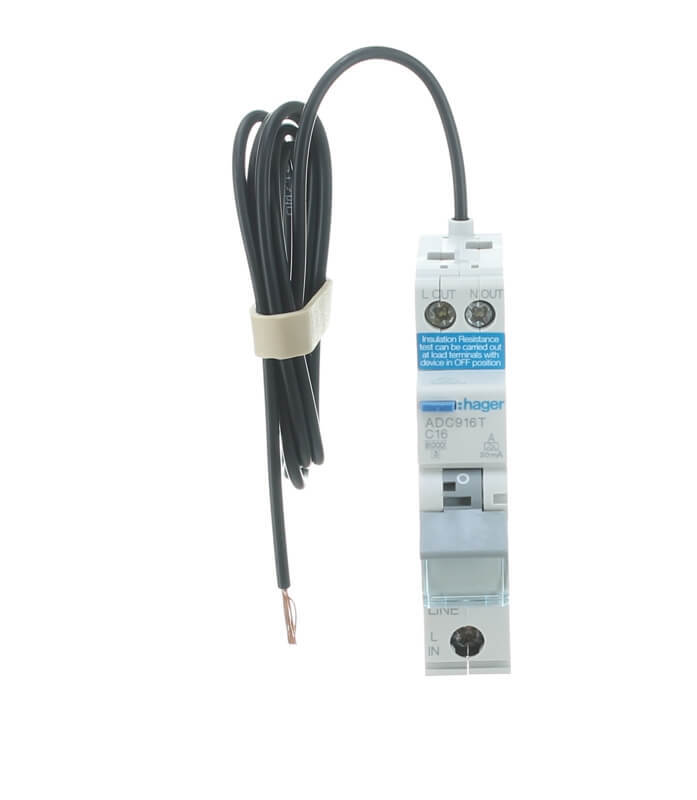

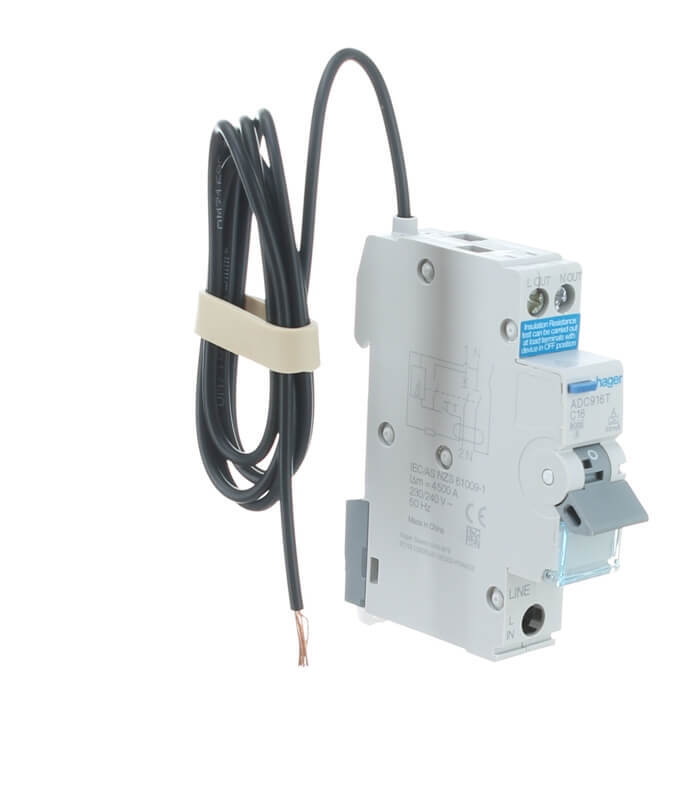

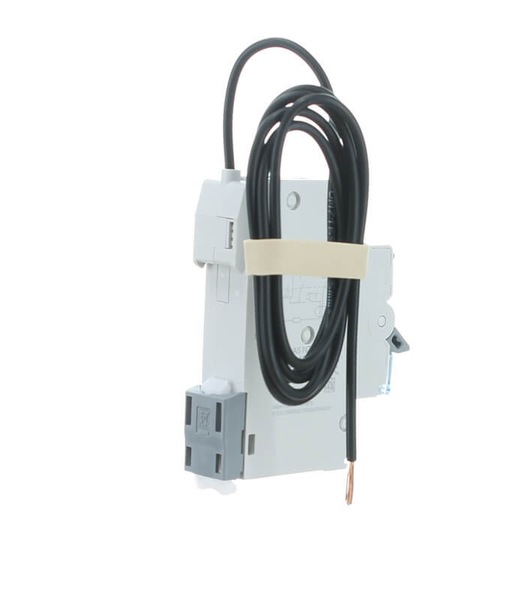

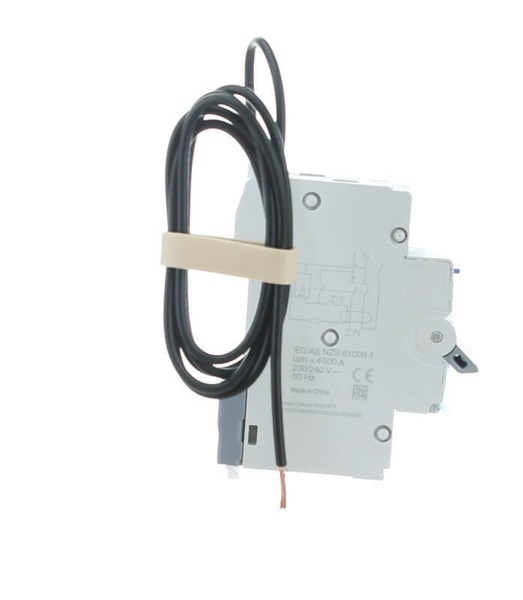

HAGER ADC916T - 16Amp 6 kA Single Pole RCBO

The Hager ADC916T is a Residual Current Breaker with Overcurrent Protection.
The product was designed to meet new wiring regulations to minimise injuries related to electric shock.
The slimline device is also commonly referred to as a single pole combo and was developed to maximise space in domestic switchboards and load centres.
The Hager 16 Amp Rcbo also saves time and money on installation. As both line and load terminals are non sensitive, rewiring is not required if replacing an alternative brand.

This is a single pole MCB/RCD combination - It only takes up the space of 1 module in a switchboard or sub board.

Extra Space when Wiring as compared to the ADC3XXT range: Reduced height allows more wiring space in the enclosure (up to 20% extra in Golf Enclosures)

Electrically Bi-directional

Switched Neutral

Insulation Resistance test is faster to perform

Built in fault trip indicator

It's reduced size makes it a perfect replacement for an MCB

Features:

• Rated current (In): 16A
• Rated voltage (Un): 240V
• Rated residual operating current (I n) 30mA
• Curve Type C
• Operating characteristic Type A
• Rated Frequency 50Hz
• Rated short-circuit capacity (Icn) 6kA
• IP rating or Protection degree IP2x terminals
• Standard AS/NZS 61009

Switched Neutral Applications:
Accommodate the requirement for switched neutral applications with a smaller footprint.
Examples include: - Construction sites (temporary boards) - Transportable structures (demountable, caravans, motorhomes etc) - Patient areas - Shows and carnivals - EVCS - Solar (PV) installations
