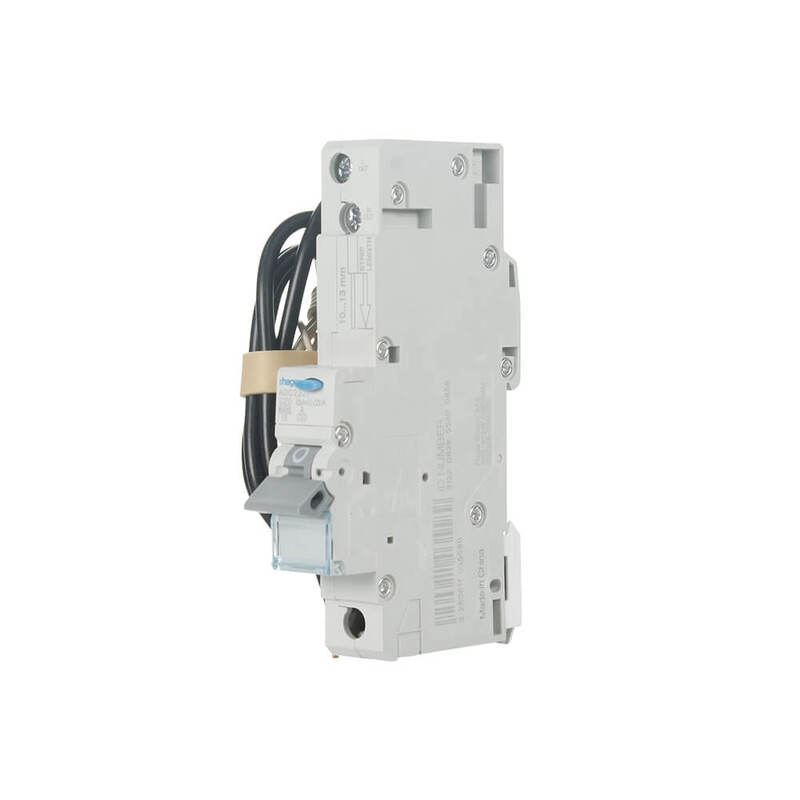

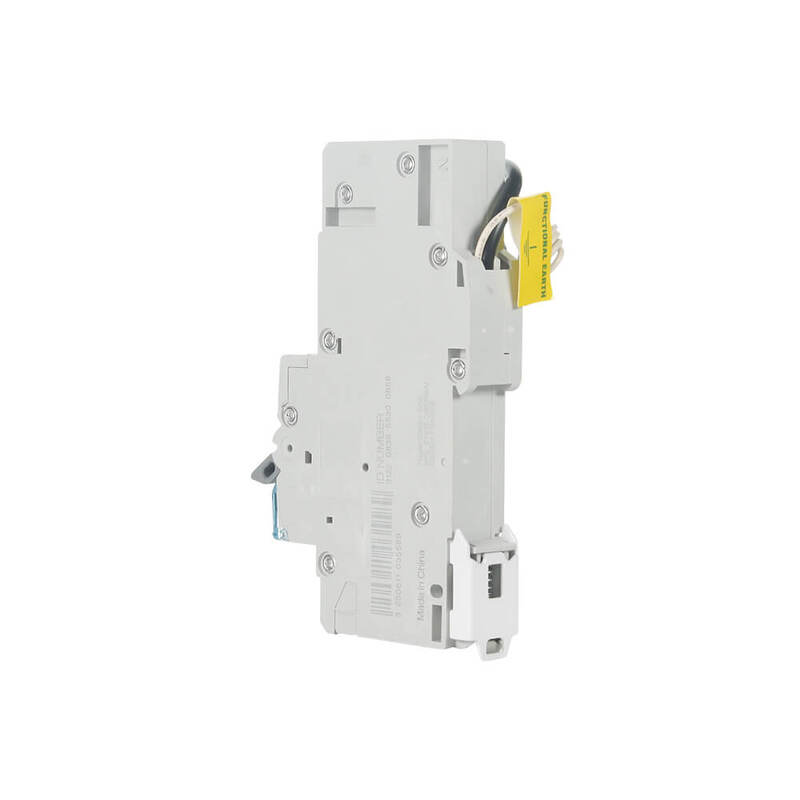

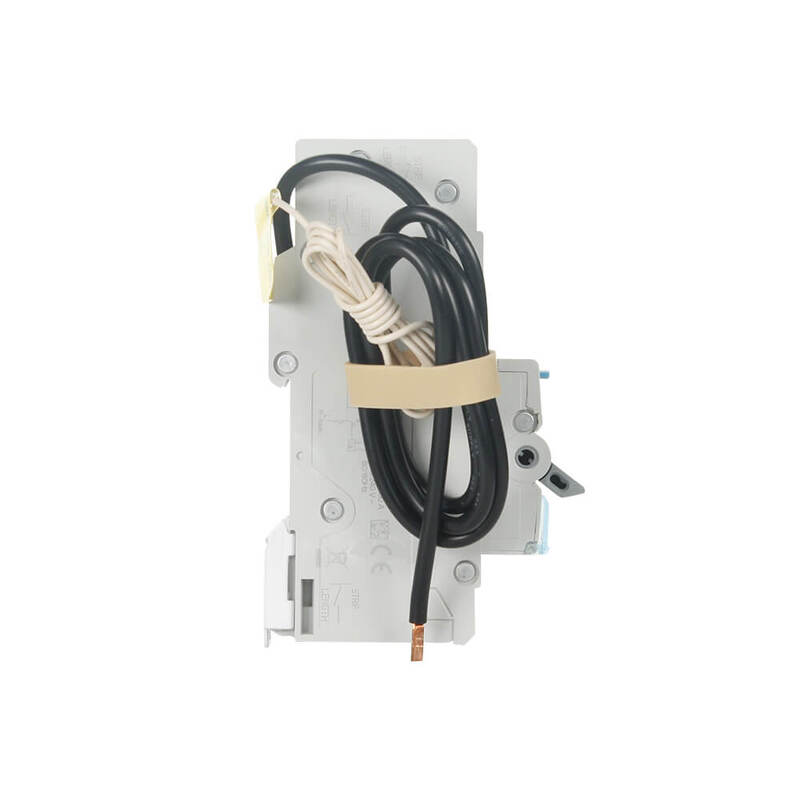

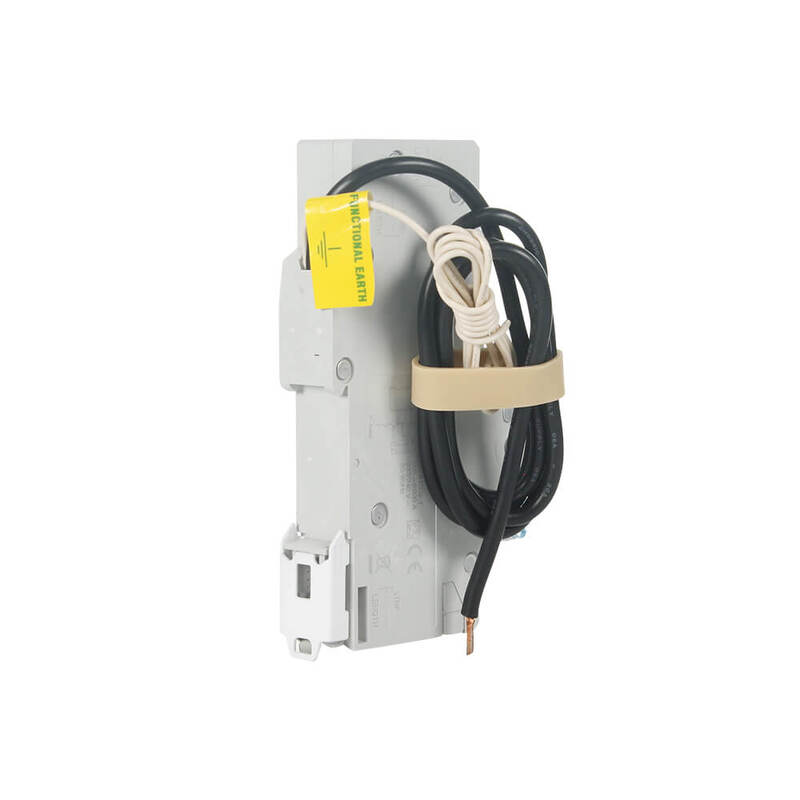

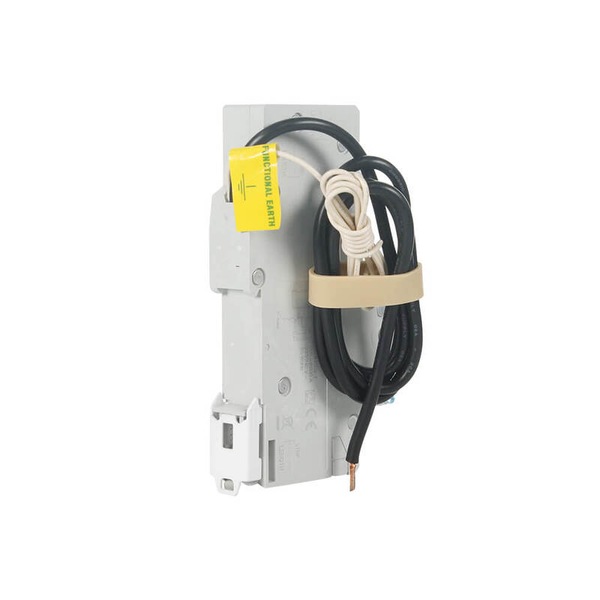

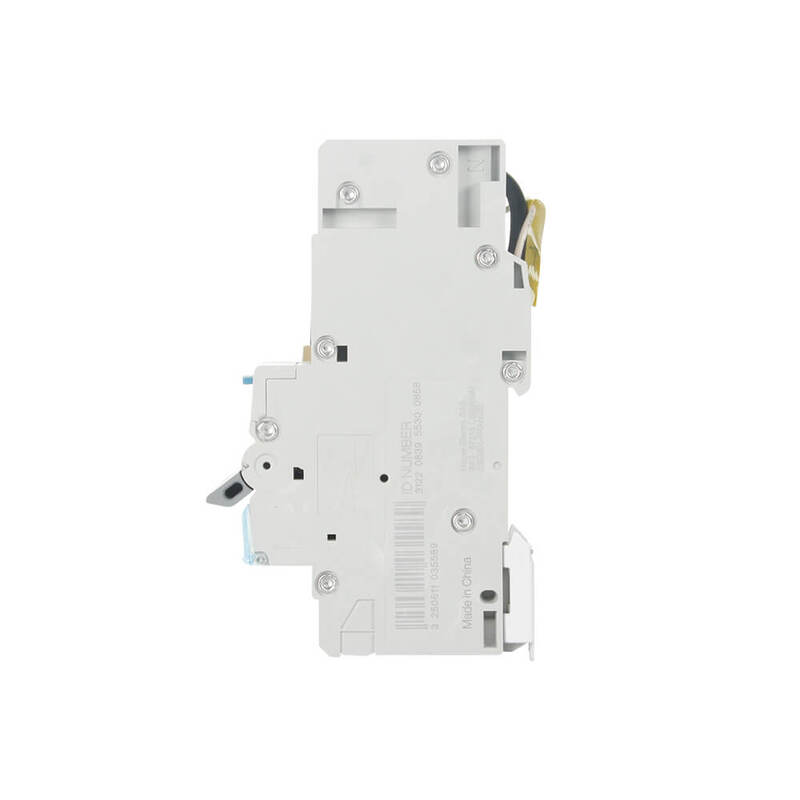

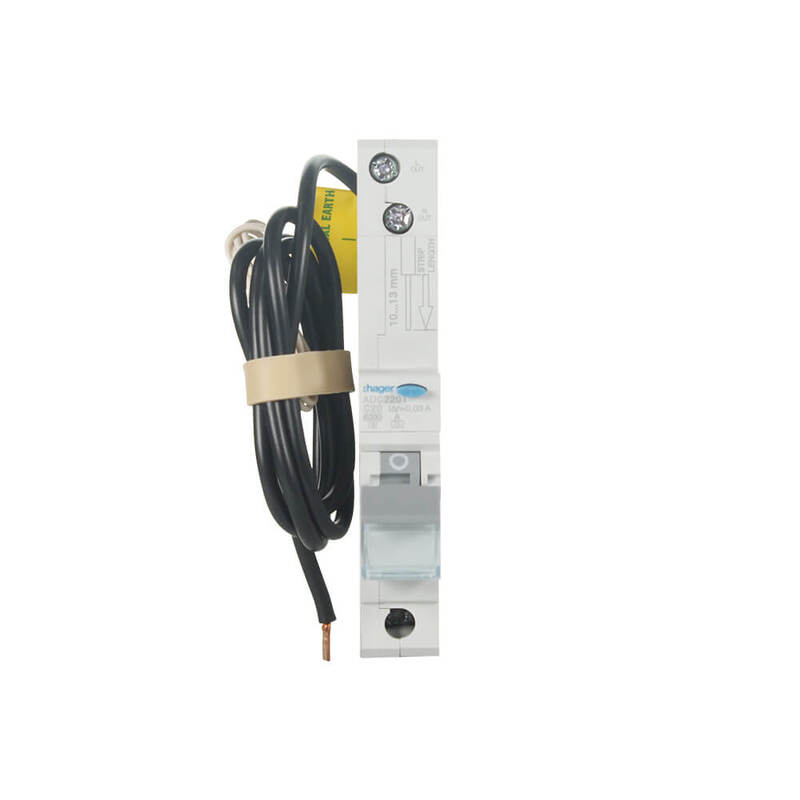

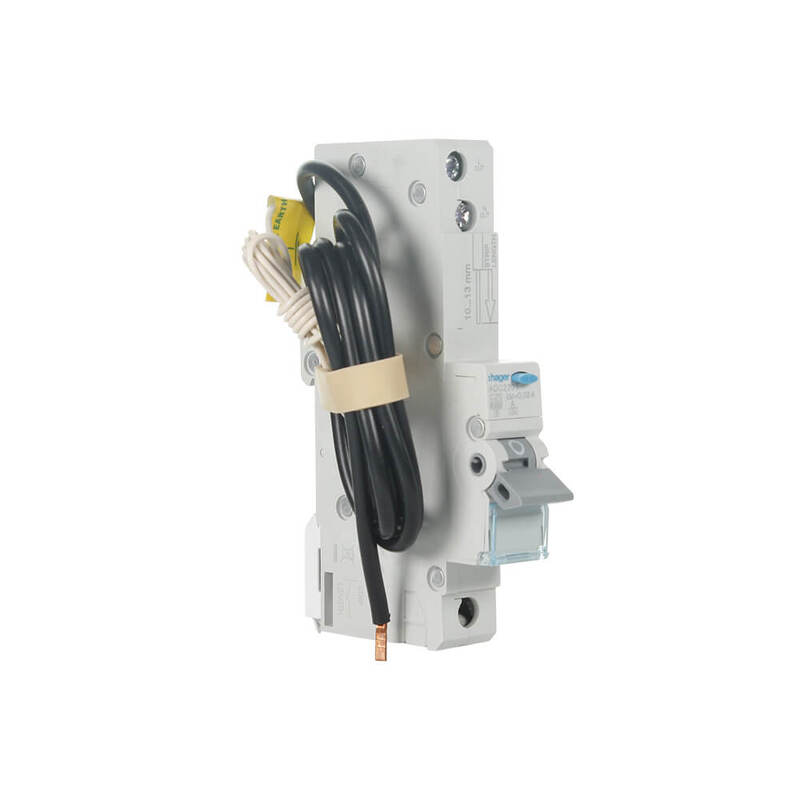

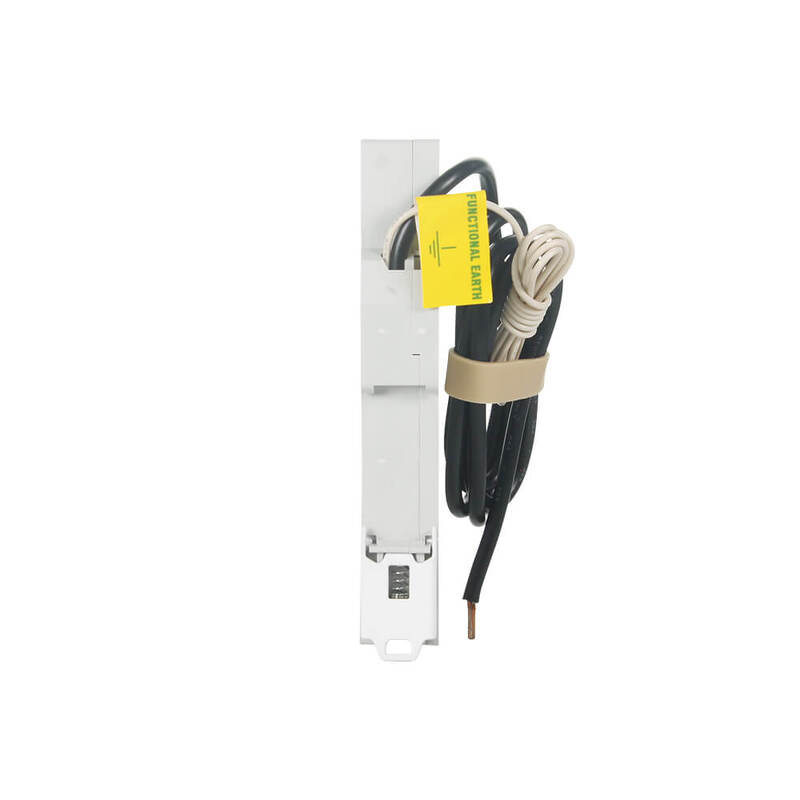

Hager ADC220T | 20A Single Pole RCBO Breaker | 30mA 6ka

Description:

The Hager ADC220T is a meticulously engineered 20A Single Pole RCBO Breaker designed to offer superior protection for electrical circuits. Featuring a 30mA rated residual operating current and a 6kA rated short circuit breaking capacity, this device is crafted to safeguard against earth leaks and circuit overloads effectively. Its single-module, DIN rail-compatible design ensures easy installation and integration into electrical panels, making it a go-to choice for electricians prioritizing safety and reliability.

Features:

Optimal Protection: With 30mA trip sensitivity and a 6kA interrupt capacity, it provides robust protection against electrical faults.
High Capacity: A 20A-rated current accommodates a wide range of electrical loads, ensuring versatility across various applications.
Durable Performance: Designed for longevity, it withstands 2000 electrical cycles and 10000 mechanical operations.
Adaptable to Conditions: Operates effectively within a wide temperature range from -5°C to 40°C, adjusting its rated current accordingly.
Standard Compliance: Meets IEC 61009-1 standard and features an IP20 protection index, adhering to high safety and quality benchmarks.
Efficient Installation: The DIN rail type O (symmetrical) fixing mode and clear terminal alignments facilitate a straightforward setup.

FAQ:

Q: What makes the HAGER ADC220T suitable for diverse electrical setups?
A: Its 20A rating and compatibility with AC supply voltages of 230/240V make it adaptable for both residential and commercial installations.

Q: How does the RCBO ensure safety against electrical shocks?
A: The 30mA residual current sensitivity quickly detects earth faults, tripping the circuit to prevent electrical shocks and fire hazards.

Q: Can the HAGER ADC220T be used in extreme temperatures?
A: Yes, it's rated for operation in temperatures ranging from -5°C to 40°C, with current adaptability for extreme conditions, ensuring reliable performance.

Q: Is installation of the HAGER ADC220T complex?
A: Designed with ease of installation in mind, its DIN rail mounting and terminal alignment allow for simple integration into existing setups, making it user-friendly for electricians.

Specifications:

Feature	Description
Neutral position	Right
Number of protected poles	1
Number of poles	1 P
Type of pole	1 P
Fixing mode	DIN rail type O (symmetrical)
Curve	C
Number of modules	1
Top connection alignment for modular devices	Shifted terminal
Bottom connection alignment for modular devices	Aligned terminal
Rated short circuit breaking capacity Icn AC according to IEC60898-1	6 kA
Rated operational voltage Ue	230/240 V
Type of supply voltage	AC
Frequency	50/60 Hz
Rated insulation voltage	250 V
Rated impulse withstand voltage	4000 V
Rated residual operating current	30 mA
Rated current	20 A
Withstand not tripping on 8-20 μs wave	0.25 kA
Breaking and opening capacity	6000 A
min/max threshold value of the AC thermal operation	1.13 / 1.45 In
Magnetic regulating current	5 / 10 In
Electric current/temperature	-25°C/25.09A ~ 70°C/16.2A
Frequency	50/60 Hz
Total power loss under IN	6.5 W
Power loss per pole at In	3.8 W
Electric endurance in number of cycles	2000
Number of mechanical operations	10000
Standards	IEC 61009-1
Protection index IP	IP20
Residual current type	A
Operating temperature	-5…40 °C
