| Model |

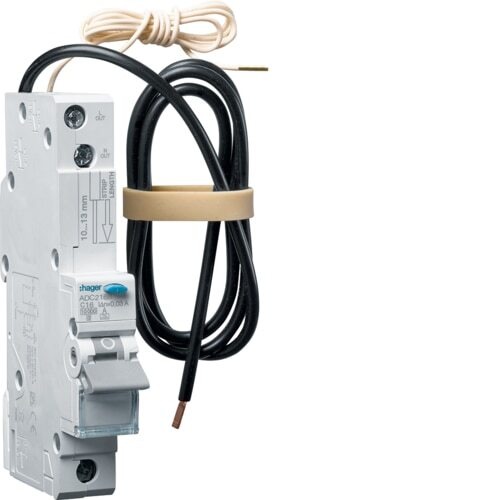

ADC216B |
| Number of Protected Poles |
1 |
| Number of Poles |
1 P |
| Type of Pole |
1 P |
| Fixing Mode |
DIN rail type O (symmetrical) |
| Curve |
C |
| Number of Modules |
1 |
| Rated Short Circuit Breaking Capacity Icn AC |
10 kA |
| Rated Operational Voltage Ue |
230 / 240 V |
| Type of Supply Voltage |
AC |
| Frequency |
50/60 Hz |
| Rated Insulation Voltage |
250 V |
| Rated Impulse Withstand Voltage |
4000 V |
| Rated Residual Operating Current |
30 mA |
| Rated Current |
16 A |
| Withstand Not Tripping on 8-20 μs Wave |
0.25 kA |
| Breaking and Opening Capacity |
6000 A |
| Min/Max Threshold Value of the AC Thermal Operation |
1.13 / 1.45 In |
| Magnetic Regulating Current |
5 / 10 In |
| Electric current / temperature |
-25°C ~ 70°C
20.81A ~ 13.6A |
| Depth of Installed Product |
70 mm |
| Height of Installed Product |
115 mm |
| Width of Installed Product |
17.8 mm |
| Total Power Loss under IN |
4.9 W |
| Power Loss per Pole at In |
2.6 W |
| Electric Endurance in Number of Cycles |
2000 |
| Number of Mechanical Operations |
10000 |
| Type of Top Connection for Modular Devices |
With screw |
| Type of Bottom Rail Clip for Modular Devices |
Metallic isolated |
| Type of Bottom Connection for Modular Devices |
BIconnect |
| Top Removability for Modular Devices |
No |
| Bottom Removability for Modular Devices |
No |
| Suitable for Flush-Mounting |
Yes |
| Connection Cross-Section at Output with Screw (Flexible Conductor) |
1 / 16 mm² |
| Connection Cross-Section at Output with Screw (Massive Conductor) |
1 / 25 mm² |
| Connection Cross-Section for Rigid Conductor (Upstream Terminals with Screws) |
1 / 16 mm² |
| Downstream Cage Clamp Delivery Status |
Opened |
| Upstream Cage Clamp Delivery Status |
Opened |
| Length of Conductors Used for the Heating Test |
1 m |
| Conductor Cross-Section Used for Heating Test |
2.5 mm² |
| Type Selective |
No |
| Can be Accessorized |
No |
| With Transparent Product Label Holder |
Yes |
| Standard Text |
IEC 61009-1 |
| European Directive WEEE |
Concerned |
| Protection Index IP |
IP20 |
| Residual Current Type |
A |
| REACH Conform |
No |
| RoHS Conform |
Yes |
| Halogen Free |
No |
| Operating Temperature |
-5…40 °C |
| Degree of Pollution |
2 |
| Class of Energy Limitation I²t |
3 |
| Altitude |
2000 m |
| Air Humidity Protection |
95% / 55°C |
| Storage/Transport Temperature |
-40…70 °C |
