Hafele Startec DCL 61 EN2-4 Overhead Door Closer Non Hold-Open

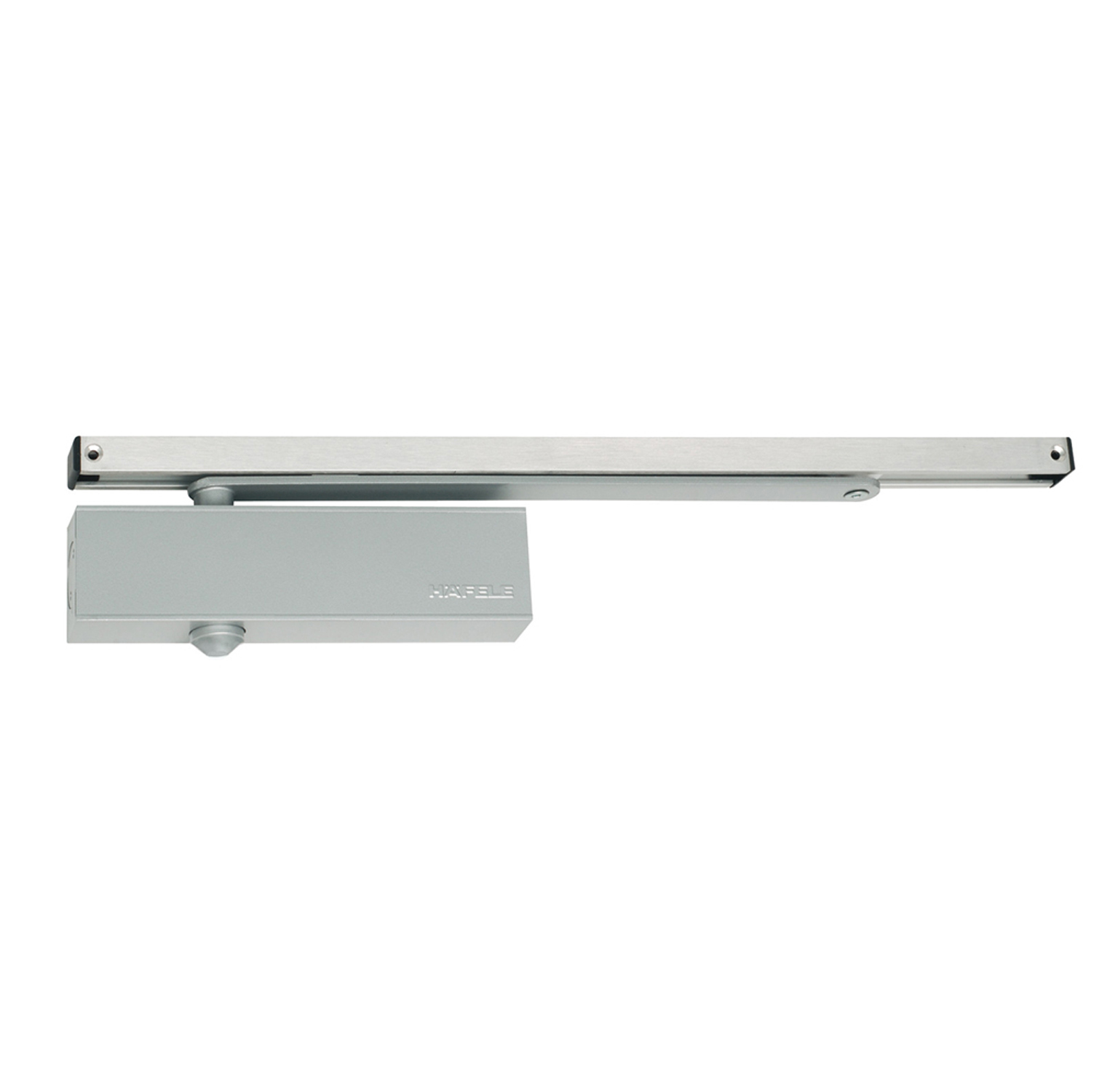

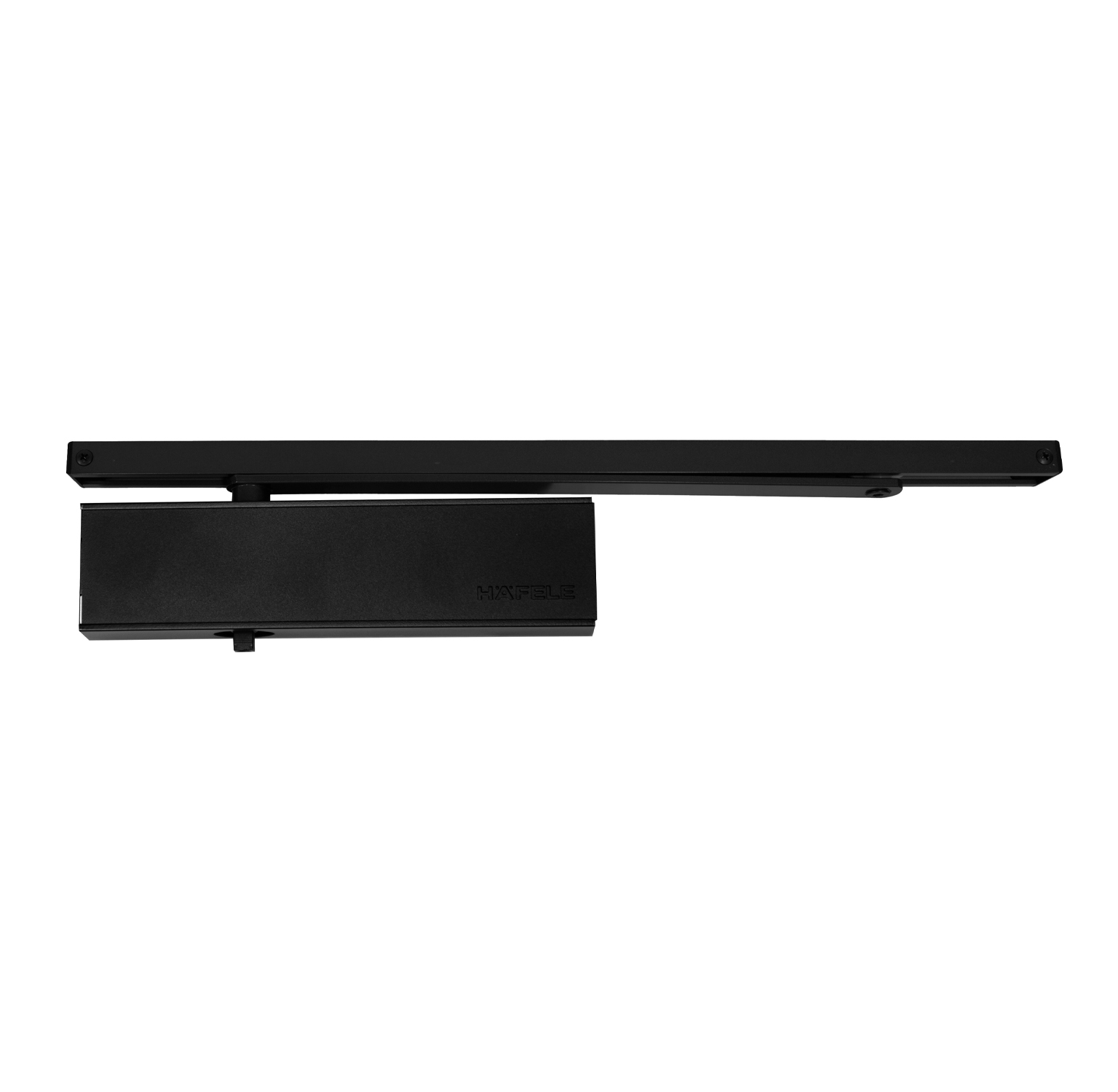

Hafele Startec DCL 61 Overhead Door Closer
931.84.139

Door Closer is a mechanical device that closes a door in a controlled manner, preventing it from slamming.

Door Closer Function - A hydraulic device that is used to automatically close a door after it has been opened. Door closers are commonly used as a fire prevention measure, typically installed on fire doors, as well as helping to prevent draughts.

Includes:

• Door closer body
• Arm assembly
• Installation instructions
• Fixing material

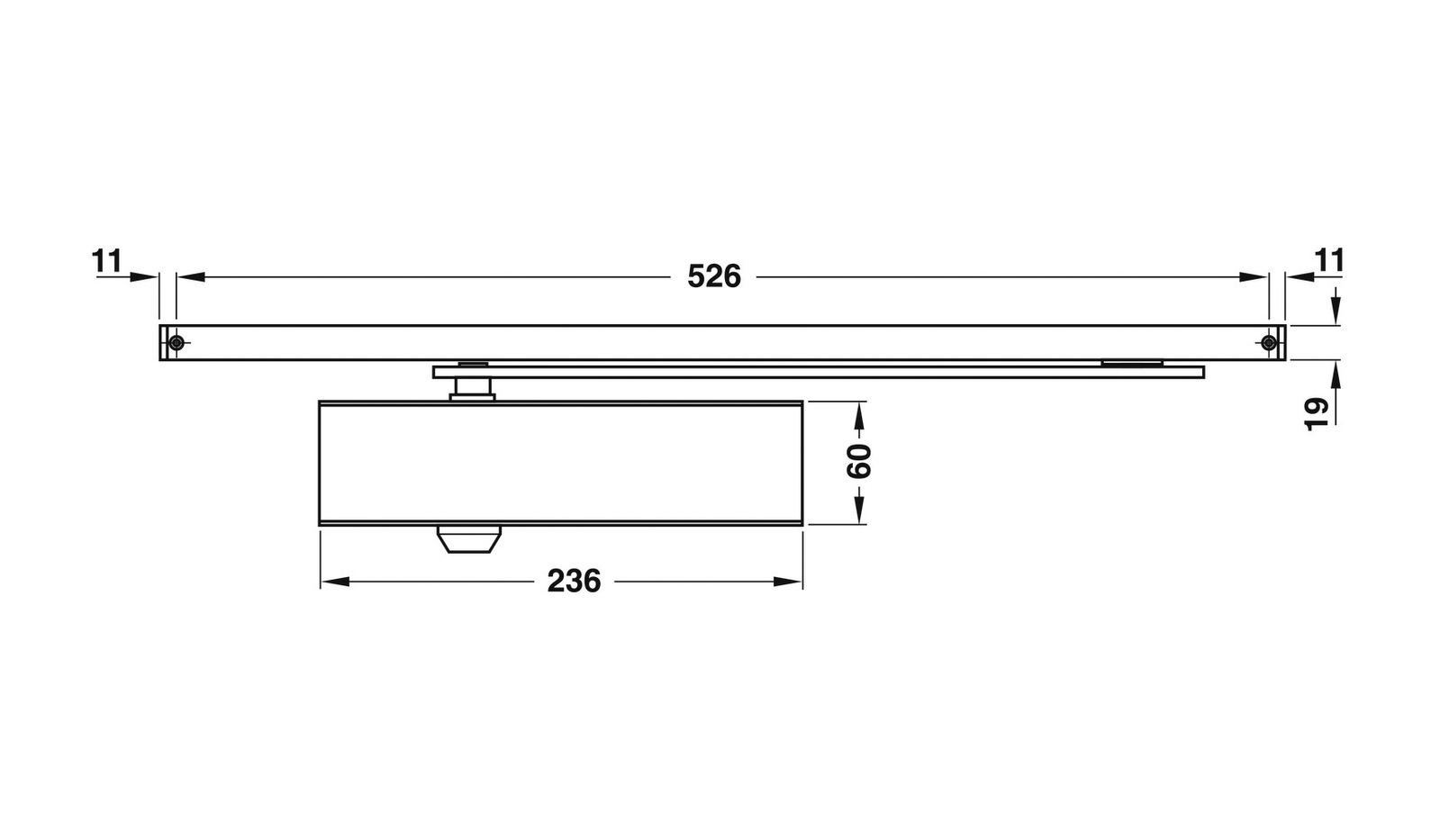

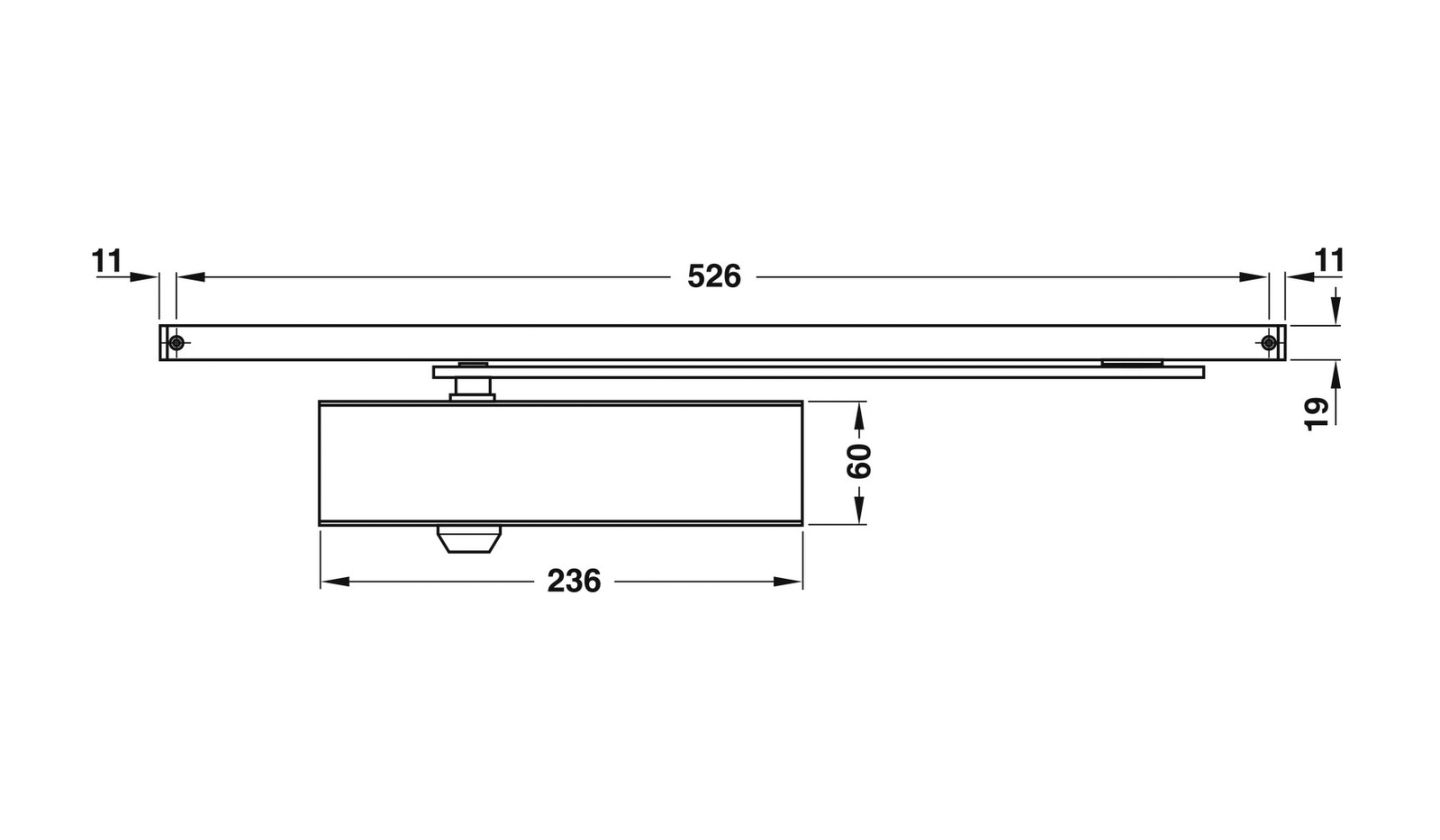

Specifications:

• Door Closer Length: 236mm
• Door Closer Height: 60mm
• Arm Length: 526mm
• Arm Thickness: 19mm
• Product Version: Overhead door closer with guide rail, without hold-open function
• Version: DCL 61 without hold open insert
• Length: 236mm
• Height: 60mm
• Mounting Method:
  • Standard installation (door leaf installation) on pull side
  • Overhead installation (transom fixing) on pull side and push side
• For Door Width: up to 1100mm
• Mounting: For DIN left and DIN right hand use
• Material: Steel
• For Door Weight: up to 80kg
• Number of Doors: 1 leaf doors
• Adjustment Facility:
  • Closing speed continuously adjustable
  • Soft opening mechanism adjustable
  • Latching action continuously adjustable
• Closing Force: 2 to 4 in accordance with EN 1154
• Opening Angle: up to 180 Degrees
• Hold-Open Angle: 115 Degrees
• Finish: Silver

Compliant:

• Certified in compliance with EN 1154:1996/A1:2002
