Hafele DCL 51 EN2-5 Overhead Door Closer with Standard Arm Fire Rated

Hafele DCL51 EN2-5 Door Closer with Standard Arm
931.84.829

Door Closer is a mechanical device that closes a door in a controlled manner, preventing it from slamming.

Door Closer Function - A hydraulic device that is used to automatically close a door after it has been opened. Door closers are commonly used as a fire prevention measure, typically installed on fire doors, as well as helping to prevent draughts.

Features:

• Optical indication of closing force
• All functions can be adjusted from the front
• With standard arm

Specifications:

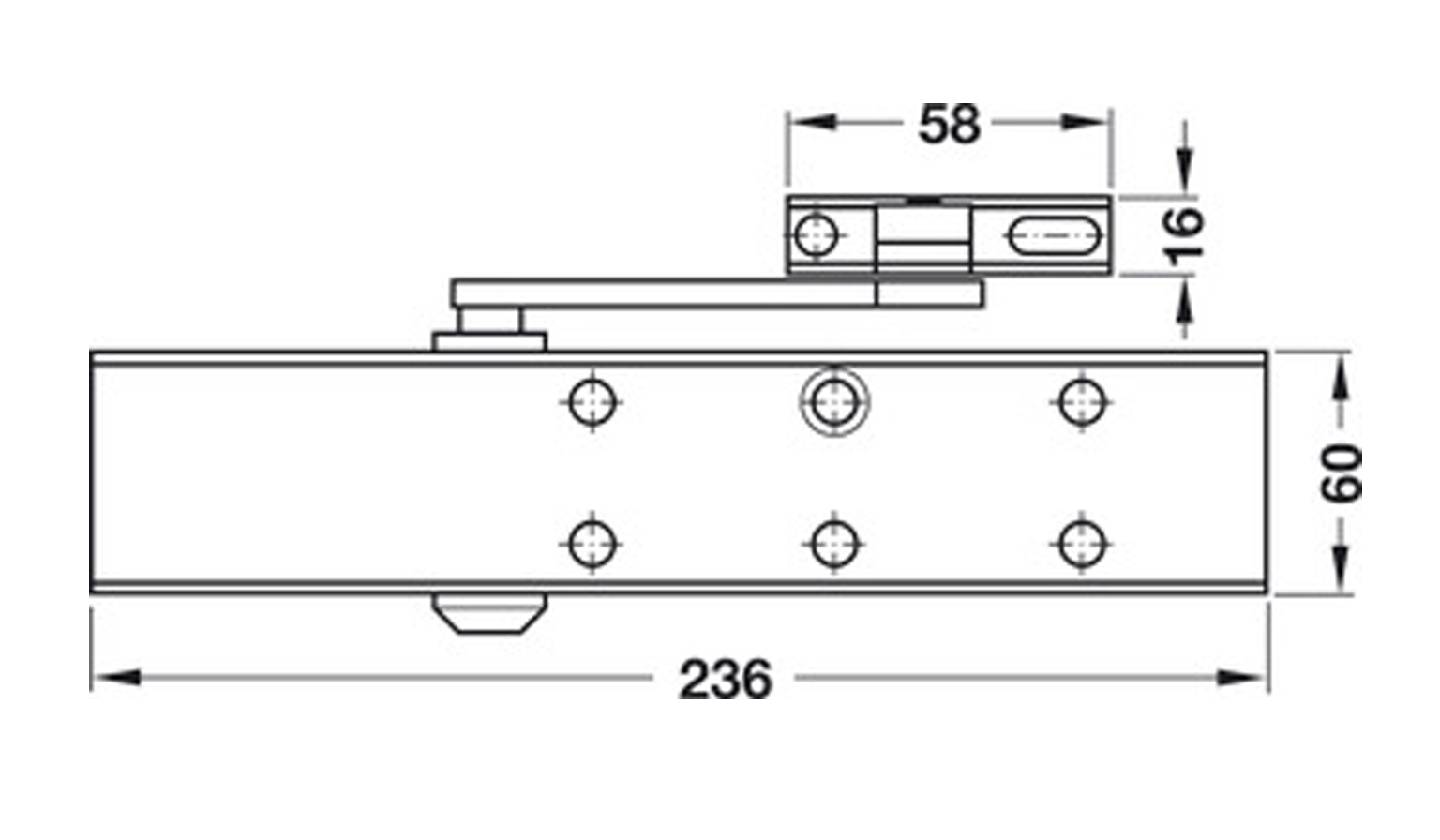

• Door Closer Length: 236mm
• Door Closer Height: 60mm
• Arm Shoe Width: 58mm
• Arm Shoe Thickness: 16mm
• Mounting Method: Standard installation (door leaf installation) on pull side, Overhead installation (transom fixing) on pull side
• For Door Width: up to 1250mm
• Mounting: For DIN left and DIN right hand use
• Material: Steel
• For Door Weight: up to 100kg
• For Number of Doors: 1-leaf doors
• Adjustment Facility: Adjustable closing speed, soft opening mechanism and latching action
• Closing Force: 2 to 5 in accordance with EN 1154
• Opening Angle: up to 180 degrees
• Fire Rated: Yes
• Finish: Silver

Compliant:

• Certified in compliance with EN 1154:1996/A1:2002
