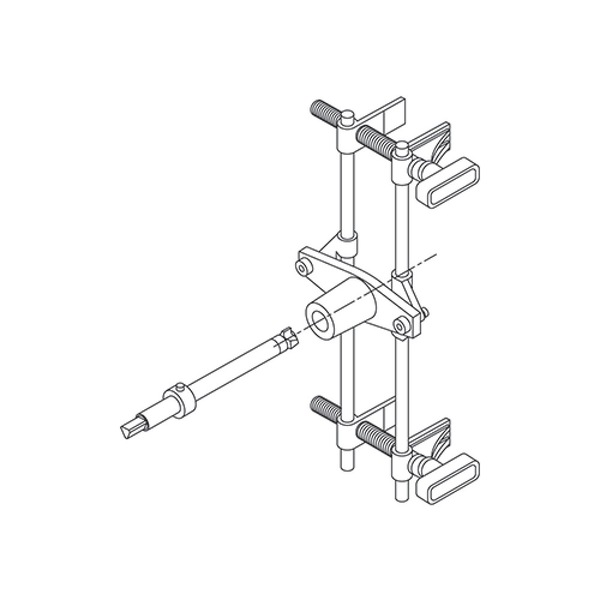

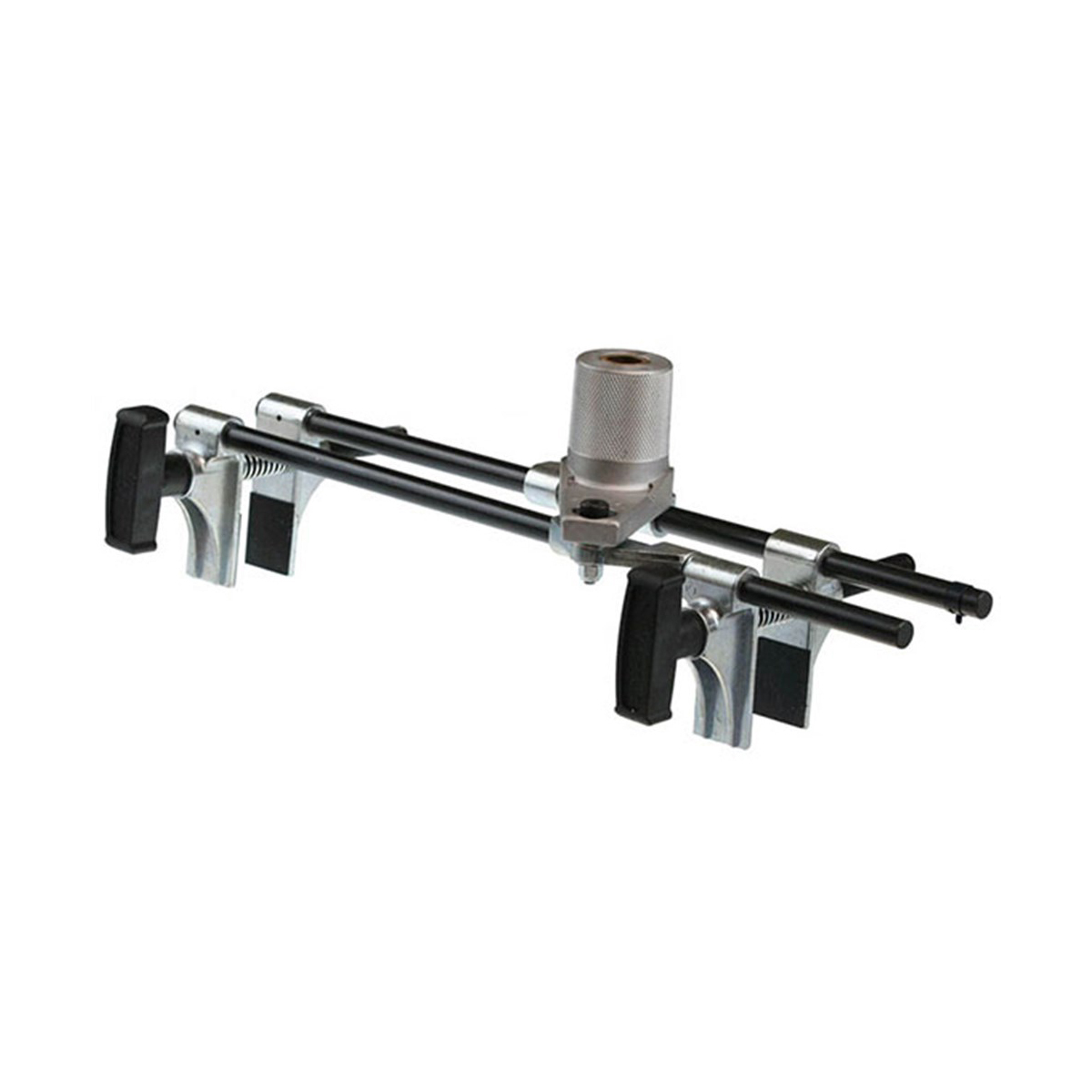

Hafele DBB Lock Morticer Jig and Fittings with 3 Cutters 001.67.700

Morticer Jig is a tool that guides the machining tool.

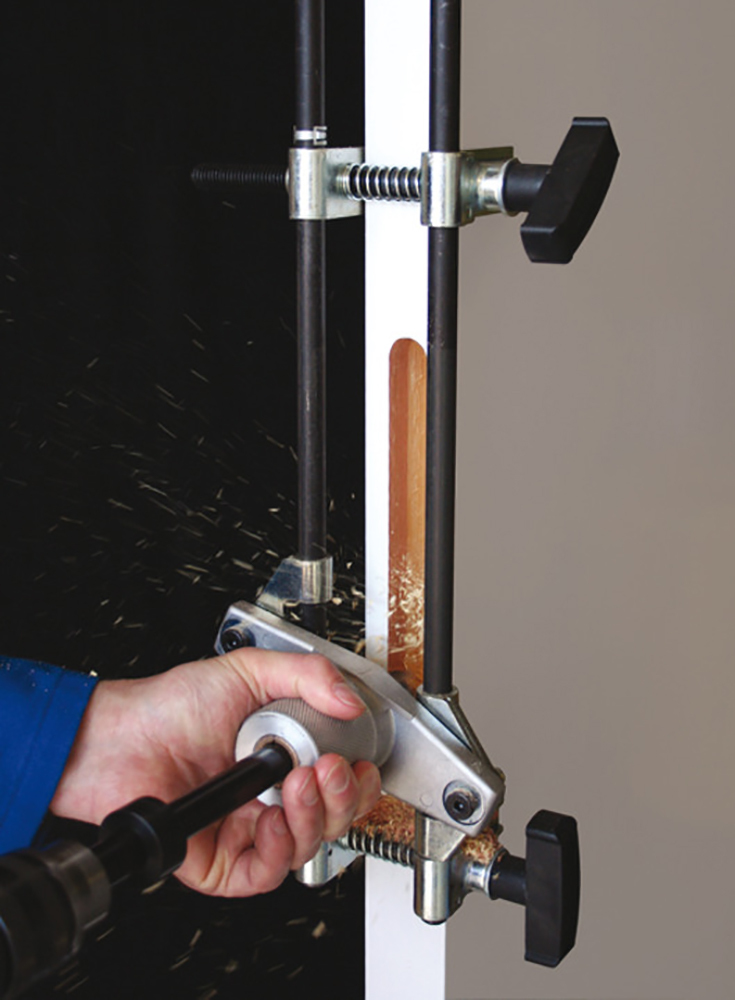

Morticer Jig Function - designed specifically to guide the drilling bit to cut mortices for door locks and their faceplates. It is quick and simple to set up, self centring and locks onto the door edge securely.

Features:

• Suitable for tubular latches, rack bolts and concealed door closers when used in conjunction with the plunging cutters
• Use with a drill with 2,000-3,000 rpm with hammer action off and a 1/2" chuck
• Screw-on design precision, carbide tipped mortice wood cutters
• Cuts lock forend as well as lock body
• Self-centring action
• Cuts a mortice for the body and for the face plate
• Achieves an accurate depth of cut to hardwood and softwood doors
• Vertical guides, height and depth stops mean you cannot over run the cut area

Specifications:

• Max. door thickness (standard housing): 55 mm
• Max. door thickness (special housing): 80 mm
• Max. vertical movement (average 45 mm thick door): 240 mm
• Door and frame with offset morticer max. 95 mm
• Material: Steel jig rods. Aluminium housing and clamps

Benefits:

• Saves time and money
• Increases accuracy and speed of mortice cutting
• Can be used on wooden or (with special cutters) aluminium doors
• The self-centring jig cuts marking-up time.
• Only requires a power drill to work
• Dependable and reliable
• All parts are replaceable

Includes:

• 1 x Mortice Jig
• 1 x Standard screw on shaft, 220 mm length (for locks up to 100 mm deep)
• 1 x 19mm diameter carbide tipped cutter
• 1 x 22.2mm diameter carbide tipped cutter
• 1 x 25.4mm diameter carbdie tipped cutter
• 1 Allen key
• Instruction booklet
