Highlights
Android 11.0:With the newest OS generation of smart TV box Amlogic S905X4 64-bit quad core ARM? Cortex? A55, G31? MP2 GPU processor, support 2.4GHz wireless mouse and keyboard via 2.4GHz USB dongle with WiFi 2.4G/5G contains Bluetooth.
4K Ultra HD:Taste of true-to-life pictures and high-dynamic-range technology can provide users enjoy the most high-definition the real picture quality, superior quality built-in sound and a unique sound system.
Support Multi Media Formats:Support various video and picture decoding or encoding; support Supports MP3, AAC, WMA, RM, FLAC, Ogg, and programmable with 7.1/5.1 down-mixing; Support HD JPEG, BMP, GIF, PNG, TIF images.
Specification:

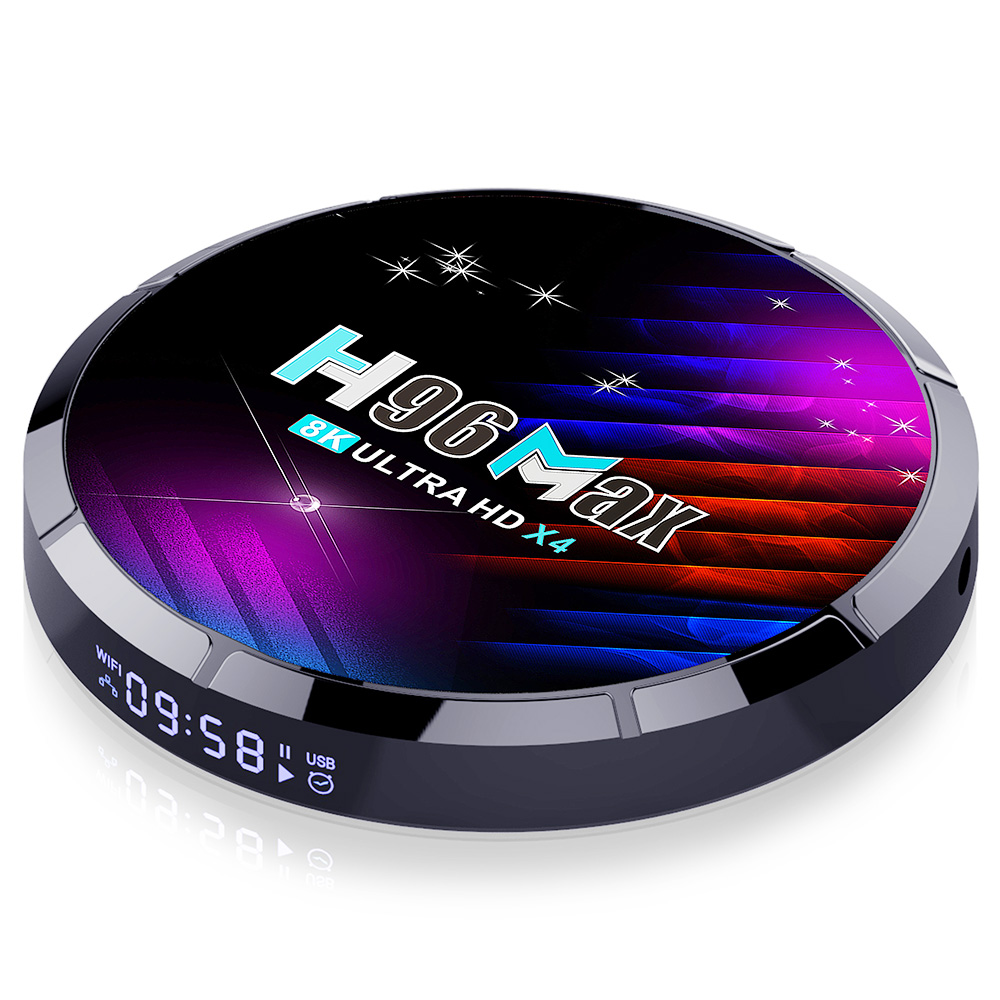

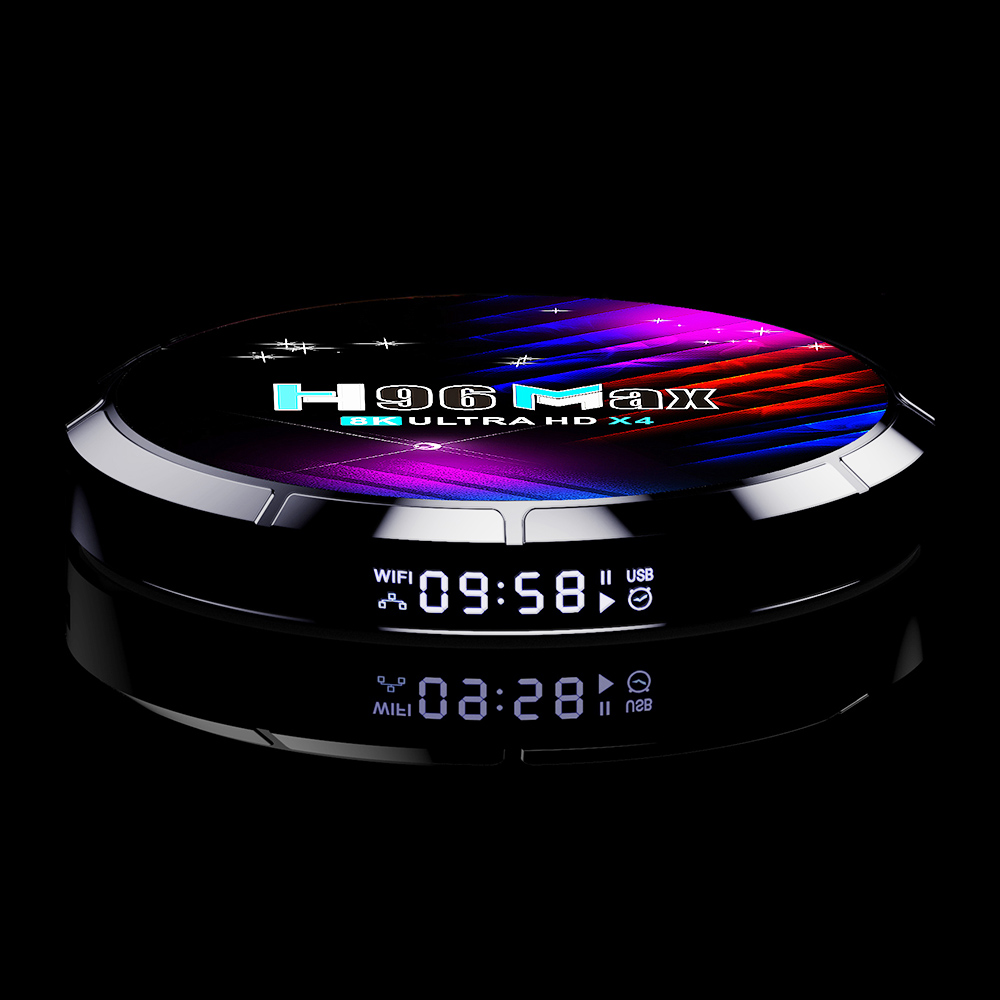

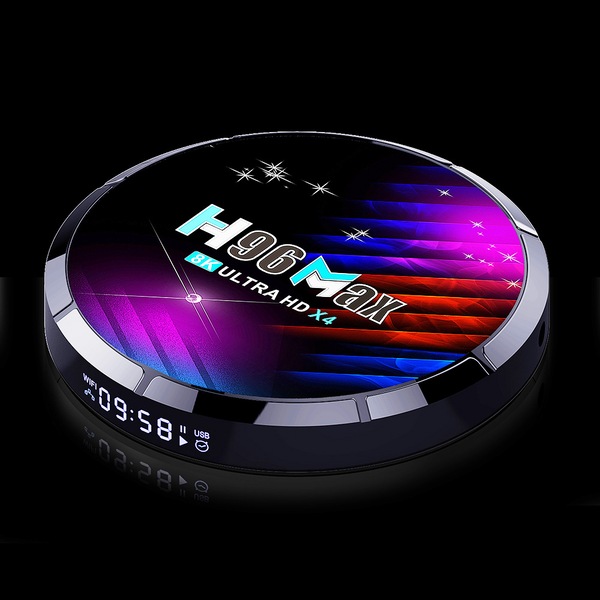

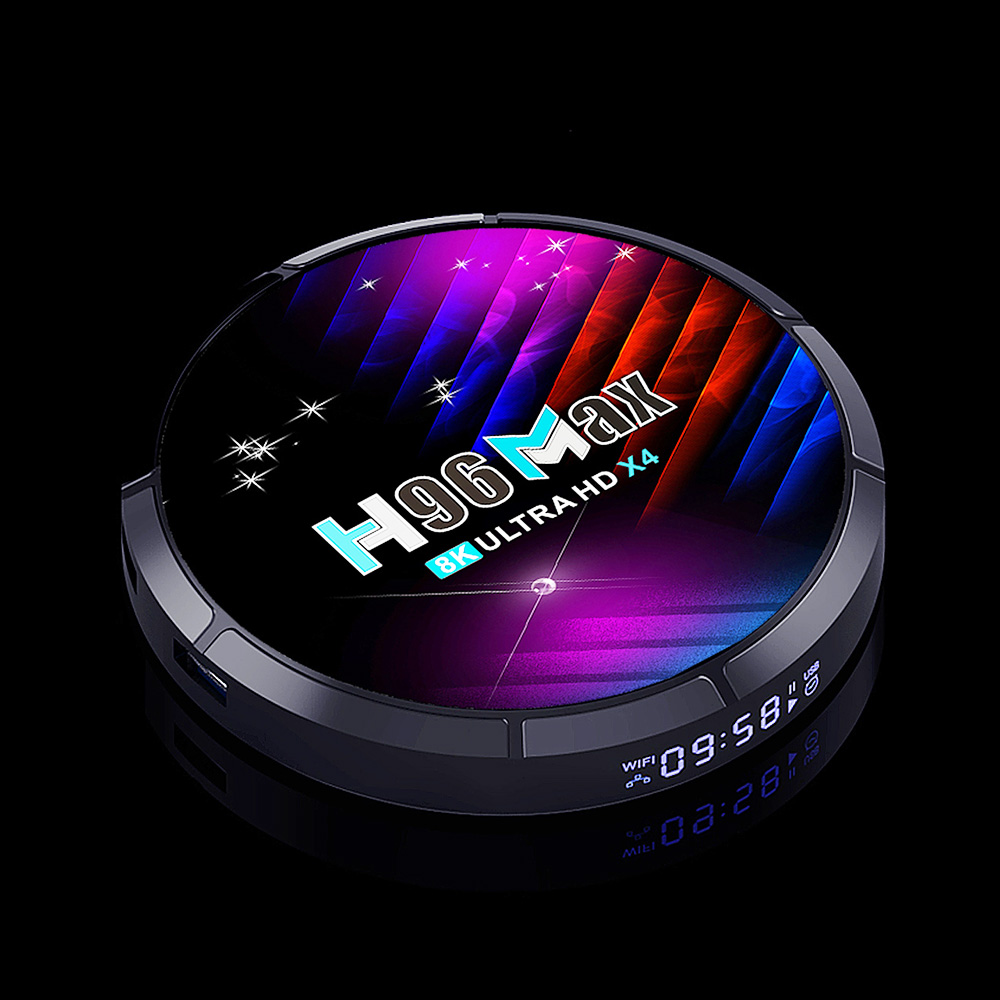

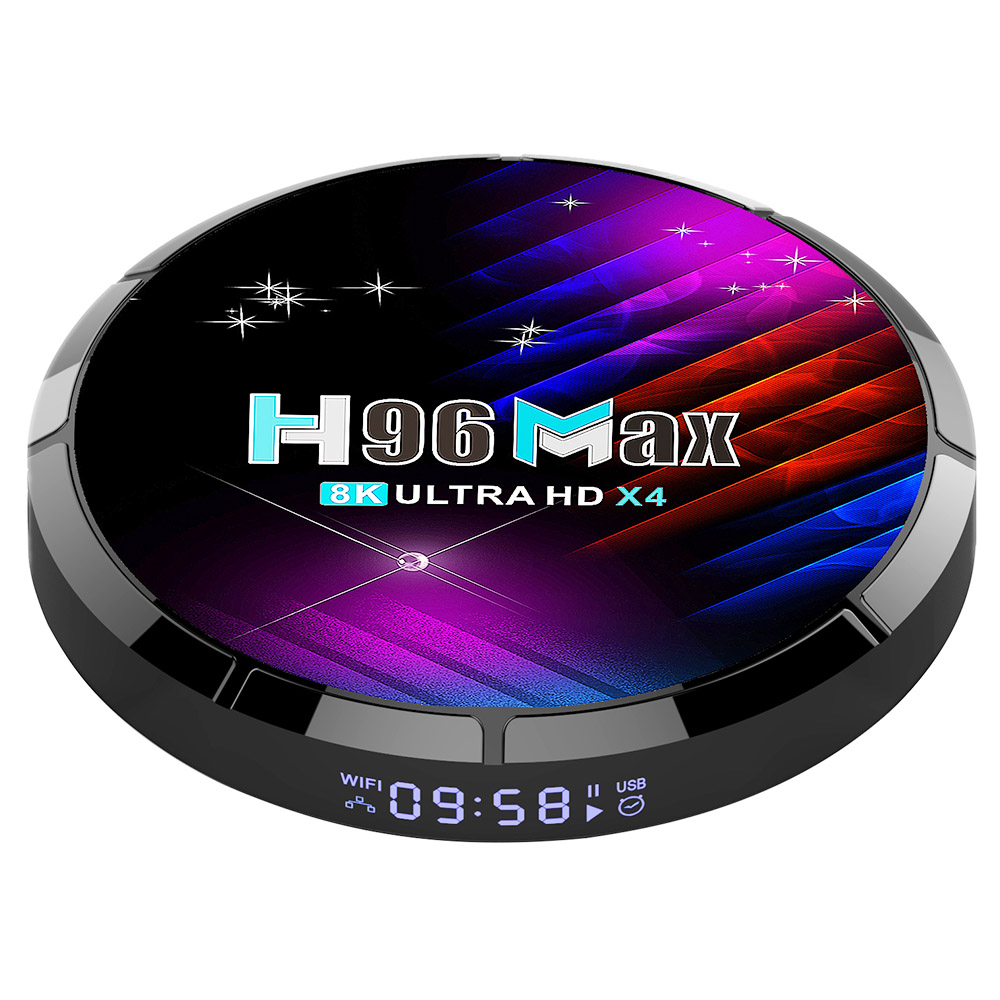

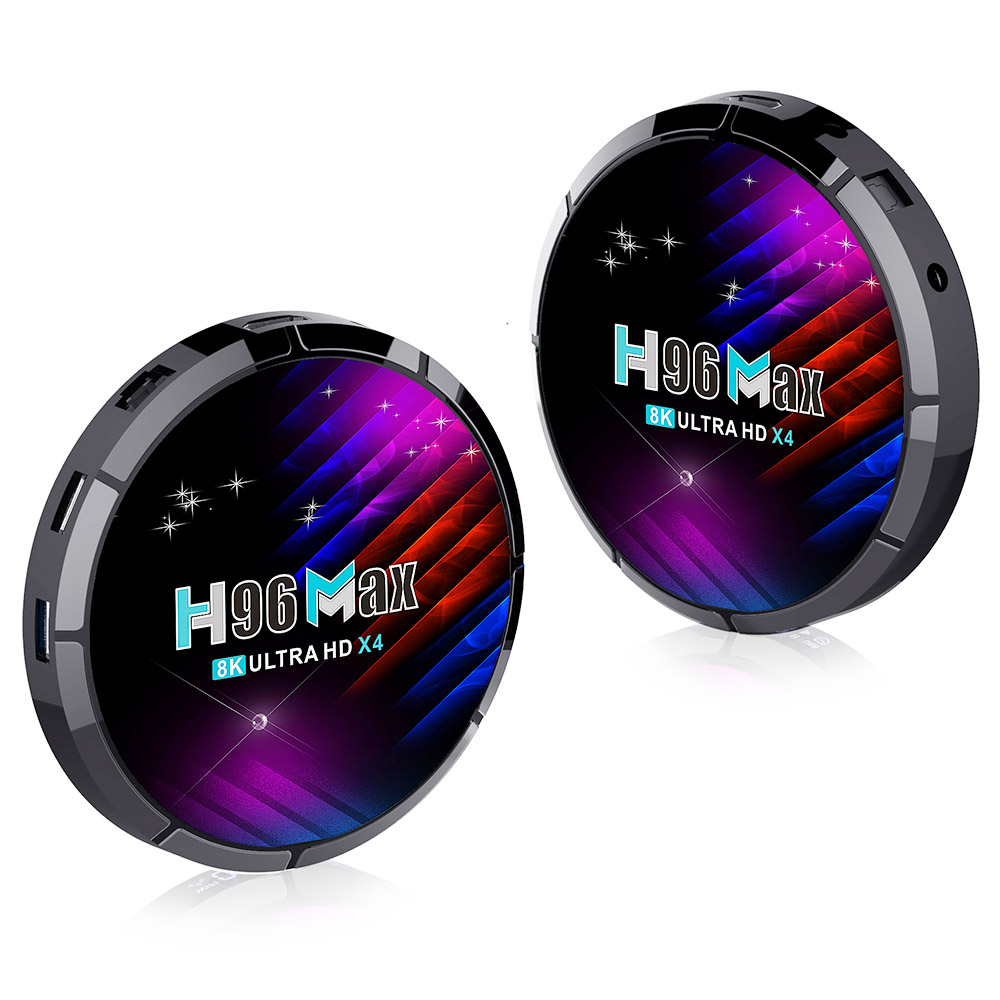

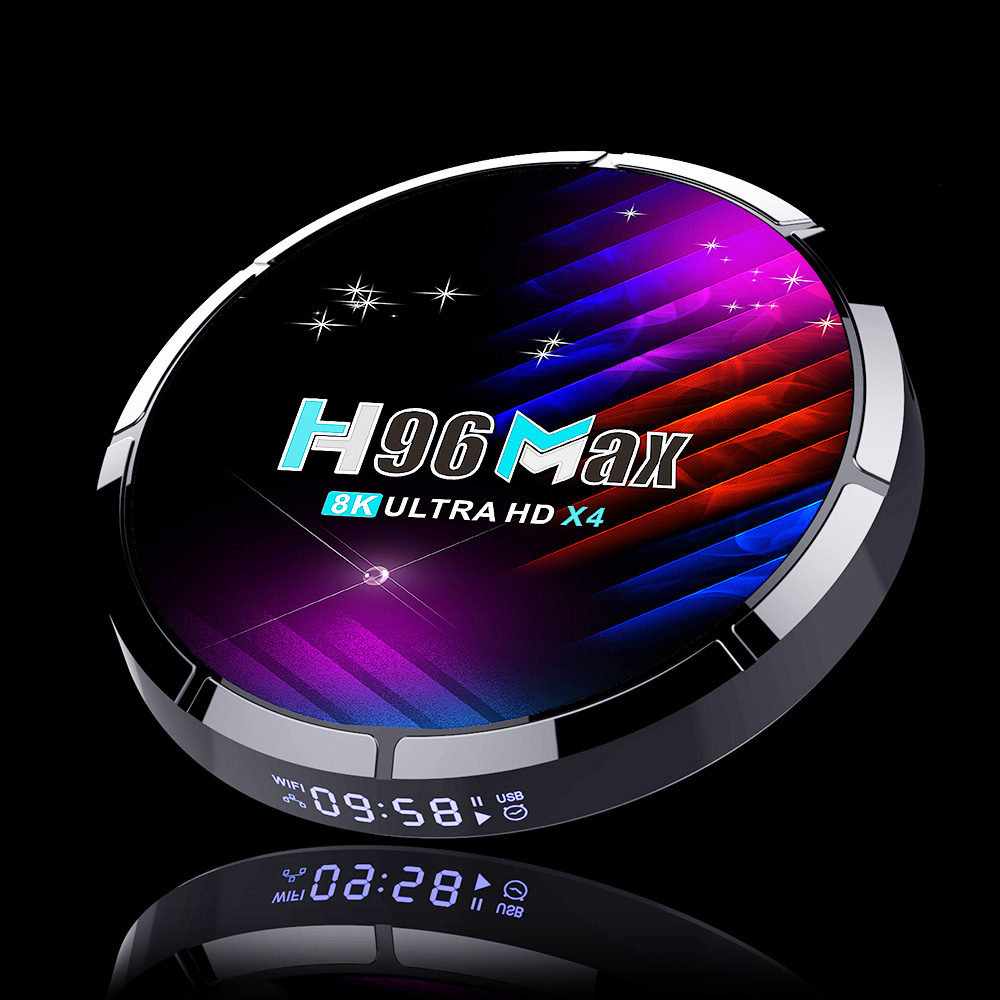

Model: H96 Max X4
Type: TV Box GPU: G31? MP2
GPU System: Android 11.0
CPU: Amlogic S905X4 64-bit quad core ARM? Cortex? A55
Core: Quad Core ARM Cortex A53
Memory: 4GB DDR3
Flash: 64GB eMMC
Video/Picture Decoding:
AV1 MP-10@L5.1 up to 4Kx2K@60fps
VP9 Profile-2 up to 4Kx2K@60fps
H.265 HEVC MP-10@L5.1 up to 4Kx2K@60fps
AVS2-P2 Profile up to 4Kx2K@60fps
H.264 AVC HP@L5.1 up to 4Kx2K@ 30fps
MPEG-4 ASP@L5 up to 1080P@6Ofps (ISO- 14496)
WMVNC-1 SP/MP/AP up to 1080P@60fps
AVS-P16(AVS+) /AVS-P2 JiZhun Profile up to 1080P @60fps
MPEG-2 MP/HL up to 1080P@60fps (ISO-13818)
MPEG-1 MP/HL up to 1080P@60fps (ISO-11172)
RealVideo 8/9/10 up to 1080P@60fps
Multiple language and multiple format sub-title video support
MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918)
Supports JPEG thumbnail, scaling, rotation and transition effects
Supports *.mkv,*.wmv,*.mpg, *.mpeg, *.dat, *.avi, *.mov, *.iso, *.mp4, *.rm and *jpg file formats
Video/Picture Encoding: .
Independent JPEG and H.264 encoder with configurable performance/bit-rate
JPEG image encoding
H.265 video encoding up to 1080P@60fps with low latency
H.264 video encoding up to 1080P@30fps with low latency
Audio
Supports MP3, AAC, WMA, RM, FLAC, Ogg and programmable with 7.1/5.1 down-mixing
Low-power VAD
Built-in serial digital audio SPDIF/IEC958 input/output and PCM input/output
3 built-in TDM/PCM/I2S ports with TDM/PCM mode up to 384kHz x 32bits x 16ch or 96kHz x
32bits x 32ch and I2S mode up to 384kHz x 32bits x 16ch
Digital microphone PDM input with programmable CIC, LPF & HPF, support up to 8 DMICs
Built-in stereo audio DAC:Supports concurrent dual audio stereo channel output with combination of analog+PCM or I2S+ PCM
Image:HD JPEG, BMP, GIF, PNG, TIF
Language:English French German Spanish Italian etc multilateral languages
WiFi: IEEE 802.11 a/b/g/n/ac ; 2.4G + 5G (ac)
Bluetooth: BT 4.0 (Support Voice Remote)
Power: DC 5V/2A
LED indicator: Blue (when working)
1 *HDM: HDMI 2.1, Support HDMI CEC, Dynamic HDR and HDCP 2.2/2.3, 4Kx2K@60 max resolution
output
1*AV OUT: 480i/576i standard definition output
2*USB: 1 * USB 3.0; 1*USB 2.0
1*IR Receiver: Remote Receiver Connect
1*RJ45: Ethernet Interface; Support 100M/1000M
1*TF CARD: Support 4GB/8GB/16GB/32GB/64GB
SPDIF: Support
1*DC: 5V/2A
Online: Browse all video websites, support Netflix, Hulu, Flixster, Youtube, etc.
Apps: Apps download freely from Android market, amazon app store, etc.
Medium: Local Media playback, Support HDD, U Disc, TF Card.
Talk online: Support SKYPE video call, MSN, Facebook, Twitter, QQ etc
Others: Support Email, office suit, etc.
Support DLNA function
Support 2.4G wireless mouse/keyboard
Package weight: 0.4 kg
Package size (L X W x H):192 X 123 x 63mm
1 x HDMI cable

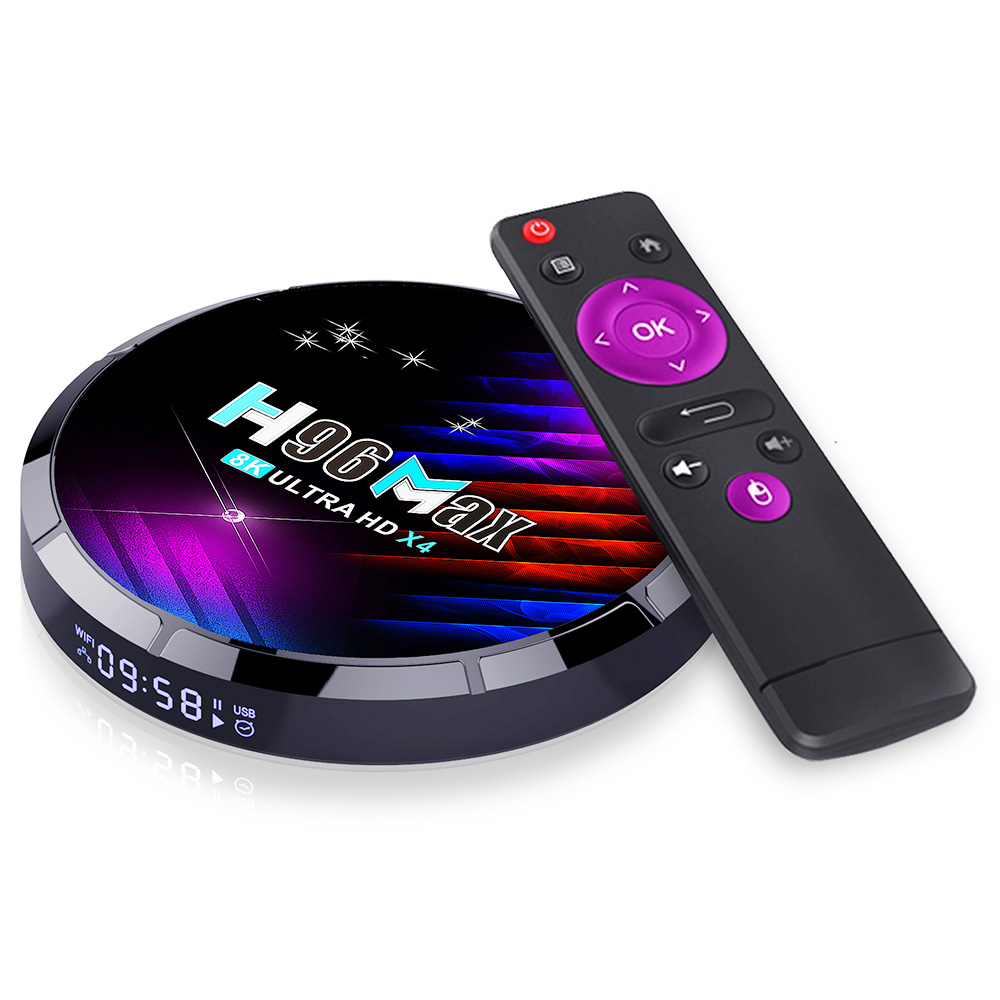

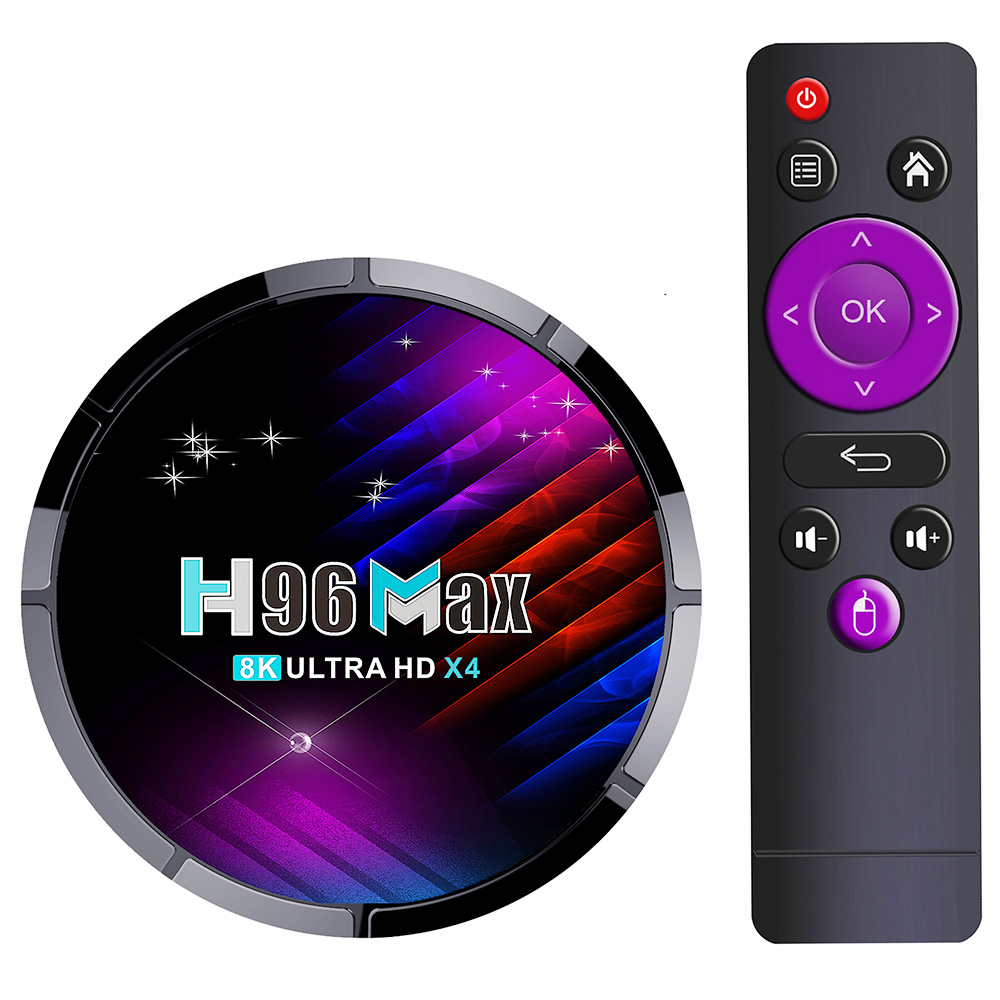

1 x IR Remote
1 x User Manual
1 x Package box
1 x Power adapter
