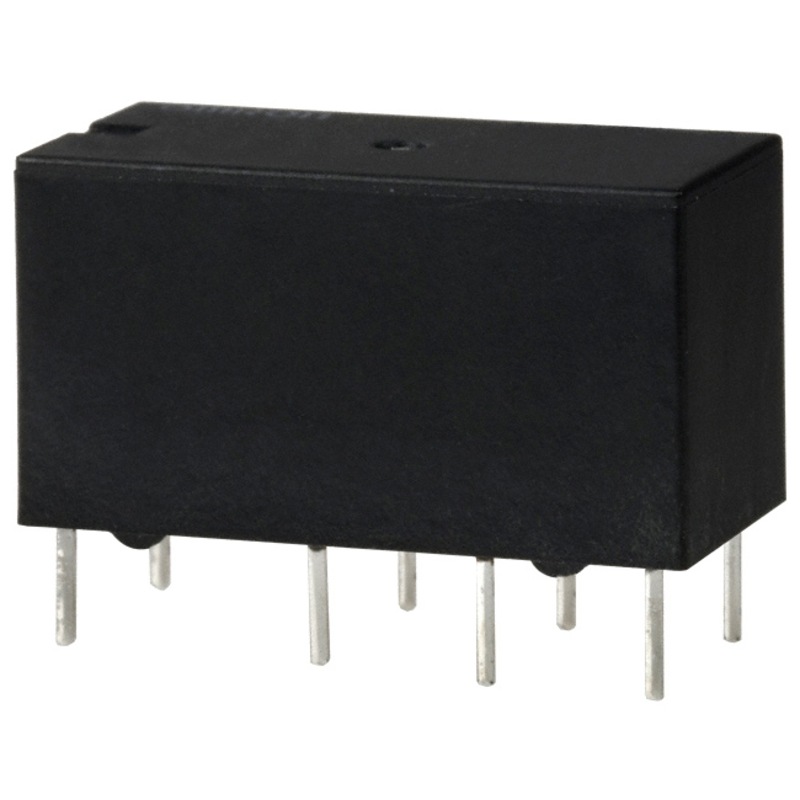

GSSH212D 12V DC 1A DUAL INLINE RELAY

GSSH212D 12V DC 1A DUAL INLINE RELAY

Hurry! 10 items left!

Price	$15.50
	Collect 15 Everyday Rewards points Log in to MyDeal to link your card
Shipping	Free Shipping
	24-48 hour dispatch See delivery details

Quantity

Add to wishlist

FEATURES:

92/8 gold silver alloy on silver palladium contact type is suitable for low level switching application.
Small size and light weight can provide high density P.C. Board mounting.
2.54gmm Terminal Pitch.
Low Coil Power Consumption of GS-T Type and high Coil Power Consumption of GS-D type are available to meet user’s selection.
Employment of suitable plastic materials to be applied to high temperature and various chemical solution.
Plastic epoxy resin sealed type for washing procedure.

SPECIFICATIONS:

Contact Resistance.............100mΩMax.@0.1A,6VDC
Operate Time
- GS-D 6 mSec. Max.
- GS-T 8 mSec. Max
Release Time......................4 mSec. Max.
Dielectric Strength :
- Between Coil & Contact.......1,000VAC at 50/60 Hz for one minute.
- Between Contacts................500VAC at 50/60 Hz for one minute.
Surge Strength.....................1,500V (between coil & contact 1.2x50μSec.)
Insulation Resistance..........100 MegaΩ Min. at 500VDC.
Max. On/Off Switching :
- Electrical..............................30Cycles per Minute.
- Mechanical 300 Cycles per Minute.
Temperature Range..............-30 - 80°C
Humidity Range....................45 - 85% RH.
Coil Temperature Rise:
- 25°C Max. (D Type)
- 20°C Max. (T Type)
Vibration:
- Endurance.............................10 to 55 Hz dual amplitude width 1.5mm.
- Error Operation.....................10 to 55 Hz dual amplitude width 1.5mm.
Shock:
- Endurance ...........................1,000 m/S2 .
- Error Operation.....................100 m/S2 .
Life Expectancy:
- Mechanical ..........................100,000,000 Operations at No Load condition.
- Electrical ..............................1,000,000 Operations at Rated Resistive Load.
Weight...................................About 4.8 g.
Safety Standard & Its File Number
- C-UL(D&T only)....................E141060
- CSA(D&T only).....................LR109368

SKU: 49.1131.37056265_SQH
