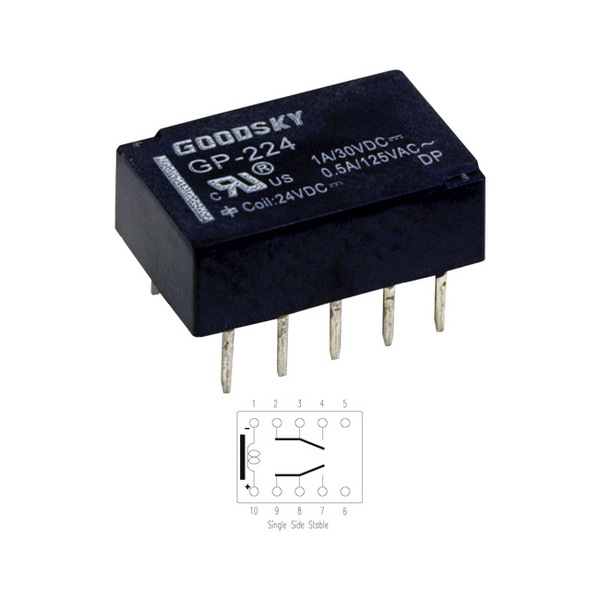

GP224 24V DC 1A COMPACT RELAY

GP224 24V DC 1A COMPACT RELAY

Hurry! 10 items left!

Price	$18.36
	Collect 18 Everyday Rewards points Log in to MyDeal to link your card
Shipping	Free Shipping
	24-48 hour dispatch See delivery details

Quantity

Add to wishlist

FEATURES:

DIL Pitch Terminals High Sensitivity :0.14W or 0.10W Nominal Power.
Conforms to FCC Part 68 1.5kV Surge and Dielectric 1,000VAC.
Monostable or bistable relays of Single Coil magnet latching Type available.

SPECIFICATIONS:

Contact Rating
- Nominal Load(Resistive Load Cosφ=1)
  - Contact Capacity.................... 1A at 30VDC. / 0.5A at 125VAC.
  - Rated Carrying Current ........ 1A.
  - Max. Allowable Current ........ 1A.
  - Max. Allowable Voltage......... DC 30V, AC 125V.
  - Max. Allowable Power Force 30W, 62.5VA.
  - Min. Switching Load ............. DC 10mV, 0.01mA.
- Contact Material....................Ag Alloy.
- Contact Form.........................DPDT.
Contact Resistance ................ 50 mΩ Max.
Operate Time.........................3 mSec. Max.
Release Time..........................3 mSec. Max.
Dielectric Strength :
- Between Coil & Contact ........ 1,000VAC at 50/60 Hz for one minute.
- Between Contacts .................. 1,000VAC at 50/60 Hz for one minute.
- Between Contact Poles .......... 1,000VAC at 50/60 Hz for one minute.
Surge Resistance ................... 1,500V (between coil & contact 1x40 μSec.)
Insulation Resistance............ 1,000Mega Ωmin. at 500VDC.
Max. On/Off Switching :
- Electrical ................................ 20 Ops per Minute.
- Mechanical............................. 180 Ops per Minute.
Temperature Range .............. -40- 70°C
Humidity Range .................... 45 - 85% RH.
Coil Temperature Rise .......... 50°C Max.
Vibration :
- Endurance ............................. 10 to 55 Hz dual amplitude width 1.5mm.
- Error Operation..................... 10 to 55 Hz dual amplitude width 1.5mm.
Shock :
- Endurance ............................. 100 G Min.
- Error Operation..................... 10 G Min.
Life Expectancy :
- Mechanical ............................ 1,000,000,000 Operations at No Load condition.
- Electrical ................................ 1A/30VDC: 2x 1,000,000 0.5A/125VAC: 1x 1,000,000 Operations at Rated Resistive Load.
Weight.................................... about 1.5 g.
Safety Standard & Its File Number :
- C-UL....................................... E141060.
