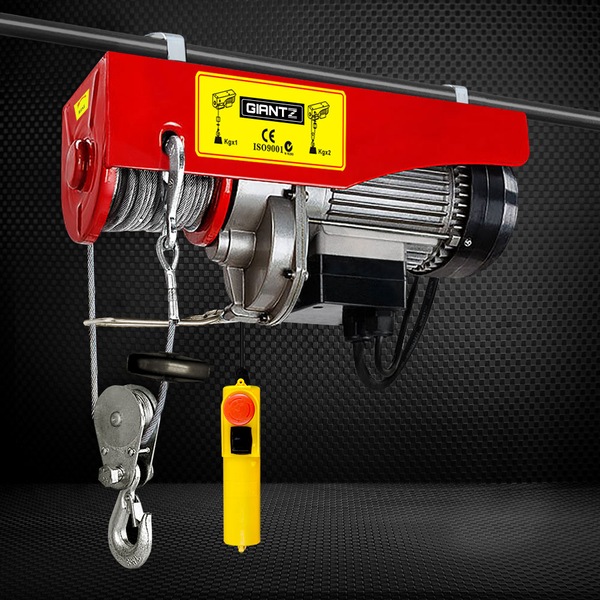

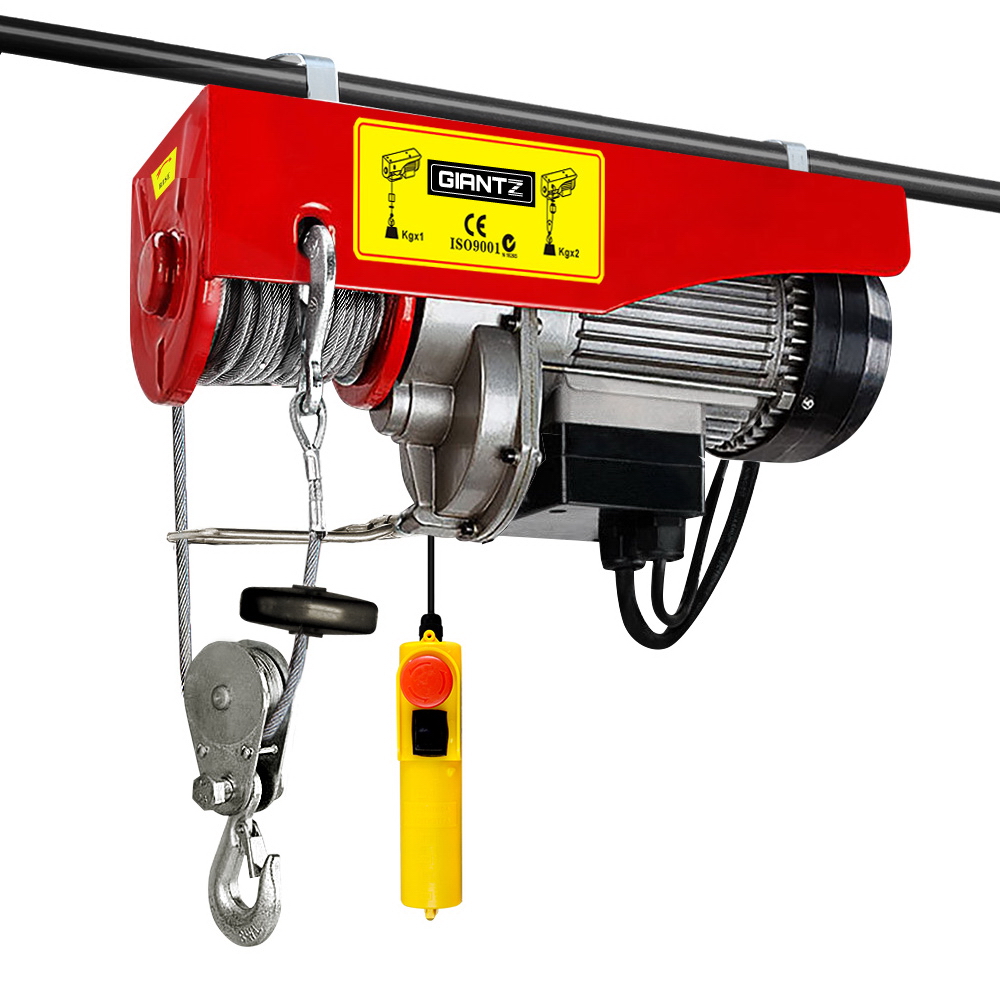

This is one serious power lifter. The GIANTZ Electric Hoist takes over all your back-breaking lifting duties with just a single push of the button. Powered by a single-phase capacitance motor, the Electric Hoist comprises a high tensile cable, a rigid forged metal hook and an easy control with emergency stop switch.
With the option of single or double rope lifting, you can choose which best works for you in every job. Depending on which model you choose, each model comes with a 18m/ 20m high tensile cable that can lift up a massive load ranging from 250kg to 1000kg. Lifting speed is 5m/min for the double rope and twice the speed for the single.
Setting up the Electric Hoist is as easy as bolting the assembly to an overhead beam. And no worries too about overloading or power outage as the GIANTZ Electric Hoist has automatic safety lock that secures the load where it is if any malfunction occurs. There is also an emergency stop switch if you need to use it.
So don't let a heavyweight job weigh you down. Get up there with the GIANTZ Electric Hoist. Choose among these 5 models that best suits your need.
Features
Powered by lateral-magnetic single-phase capacitance motor
Premium motor
Built-in flywheel for self-cooling

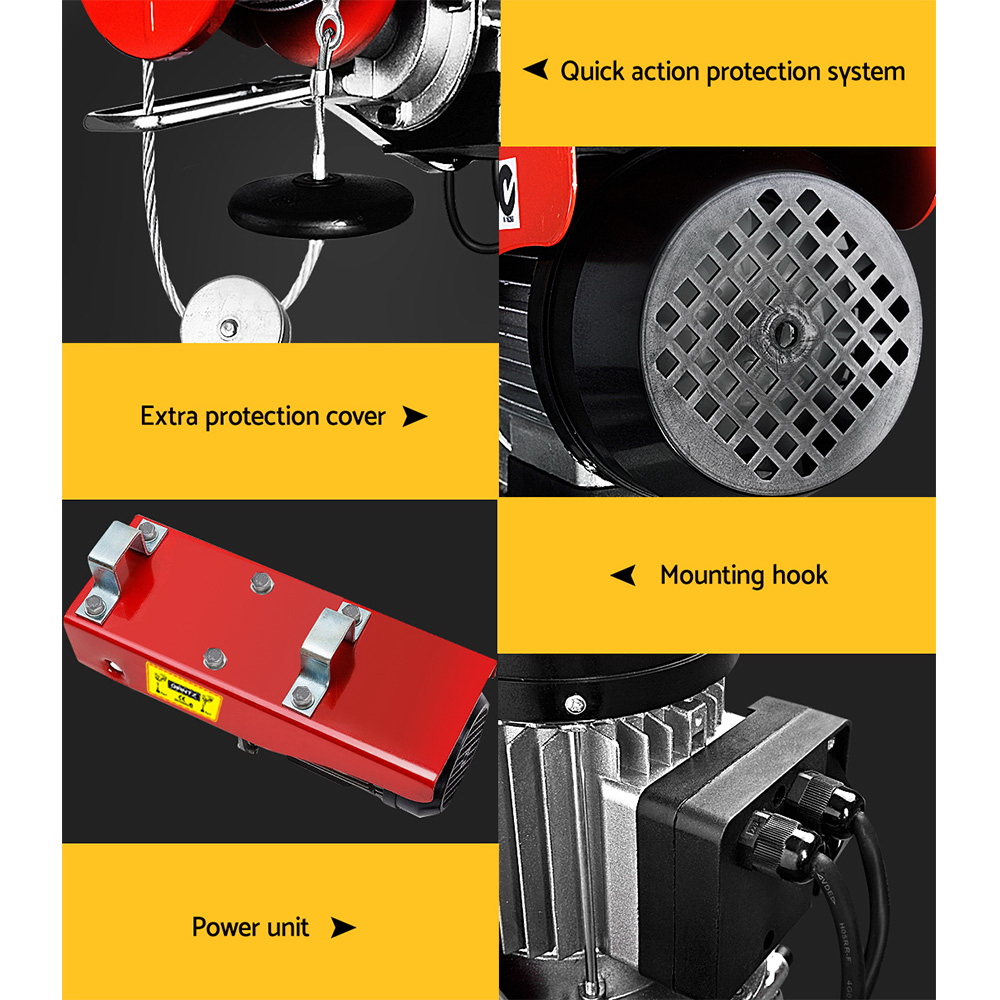

Emergency instant stop switch

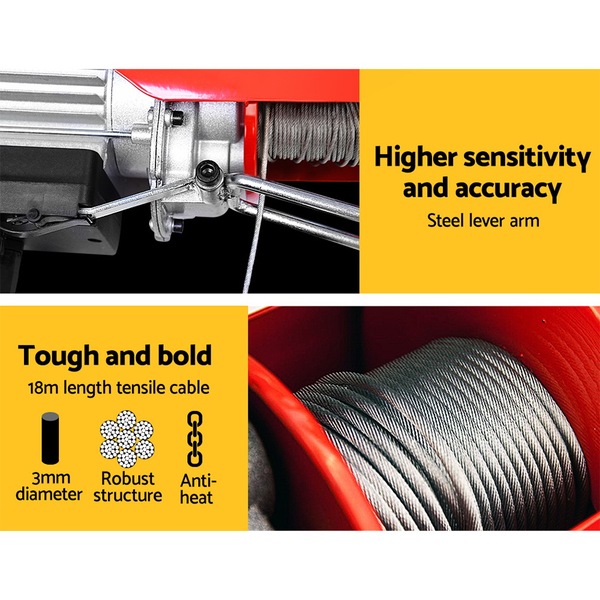

7x19 robust wire rope structure

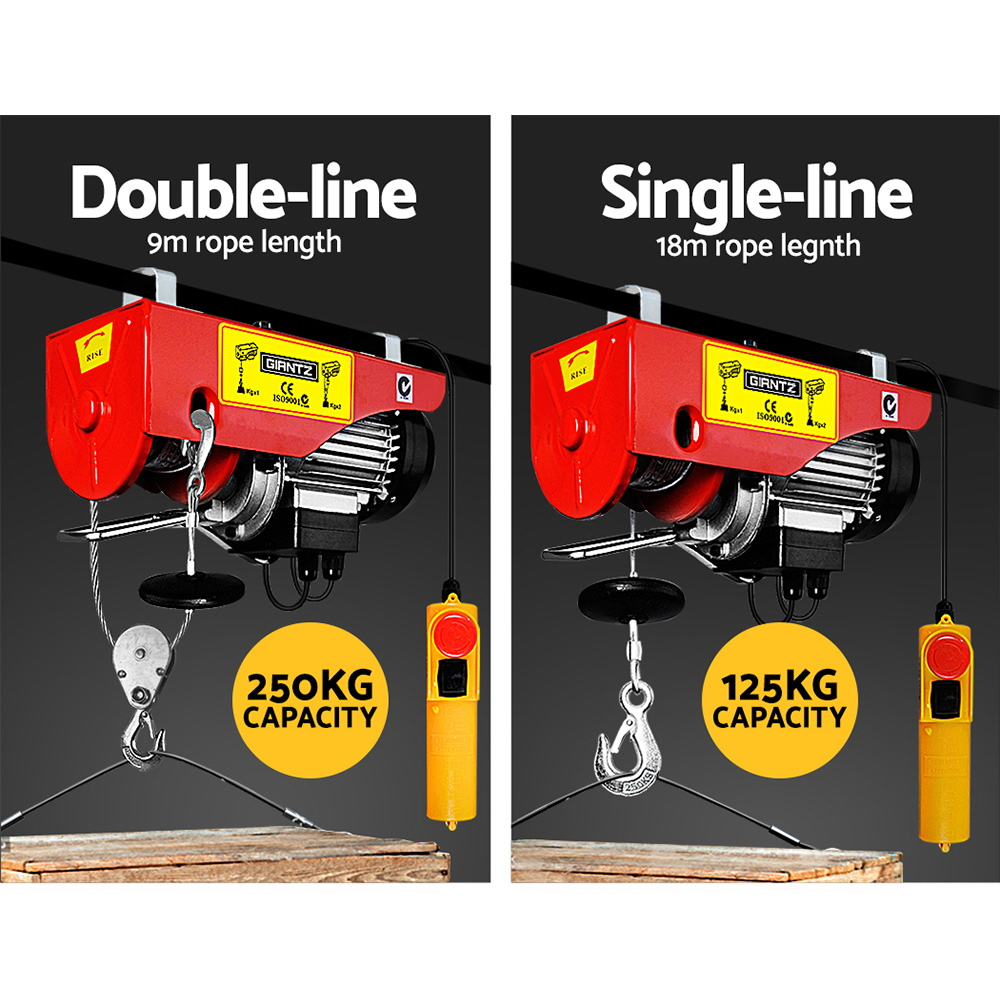

Single and double rope lifting
Overload protection function
18 metres high tensile cable
Comes with an extra hook
CE/GS/RoHS/EMC approval
Specifications:
Model 1
Voltage?AC 240V/50Hz
Moter power: 510W
Single rope capacity?125kg
Double rope capacity?250kg
Rope type: 7x19 structure wire rope
Rope diameter: 3mm
Lifting speed: Single rope - 10 metres/min, Double rope - 5 metres/min
Lifting height: Single rope - 18m, Double rope - 9m
Weight: 11kg
Length of power cable: 0.8m
Length of control switch cable: 1.46m
Model 2
Voltage?AC 240V/50Hz
Input power: 1200W
Single rope capacity?300kg
Double rope capacity?600kg
Rope type: 7x19 structure wire rope
Rope diameter: 4.5mm
Lifting speed: Single rope - 10 metres/min, Double rope - 5 metres/min
Lifting height: Single rope - 18m, Double rope - 9m
Weight: 16.5kg
Length of power cable: 0.8m
Length of control switch cable: 1.8m
Model 3
Voltage: AC 240V/50Hz
Input power: 1300W
Single rope capacity: 400kg
Double rope capacity: 800kg
Rope type: 7x19 structure wire rope
Rope diameter: 5.1mm
Lifting speed: Single rope - 10 metres/min, Double rope - 5 metres/min
Lifting height: Single rope - 18m, Double rope - 9m
Weight: 18.5kg
Length of power cable: 0.8m
Length of control switch cable: 1.8m
Model 4
Voltage: AC 240V/50Hz
Input power: 1300W
Single rope capacity: 400kg
Double rope capacity: 800kg
Rope type: 7x19 structure wire rope
Rope diameter: 5.1mm
Lifting speed: Single rope - 10 metres/min, Double rope - 5 metres/min
Lifting height: Single rope - 20m, Double rope - 10m
Weight: 20kg
Length of power cable: 0.8m
Length of control switch cable: 1.8m

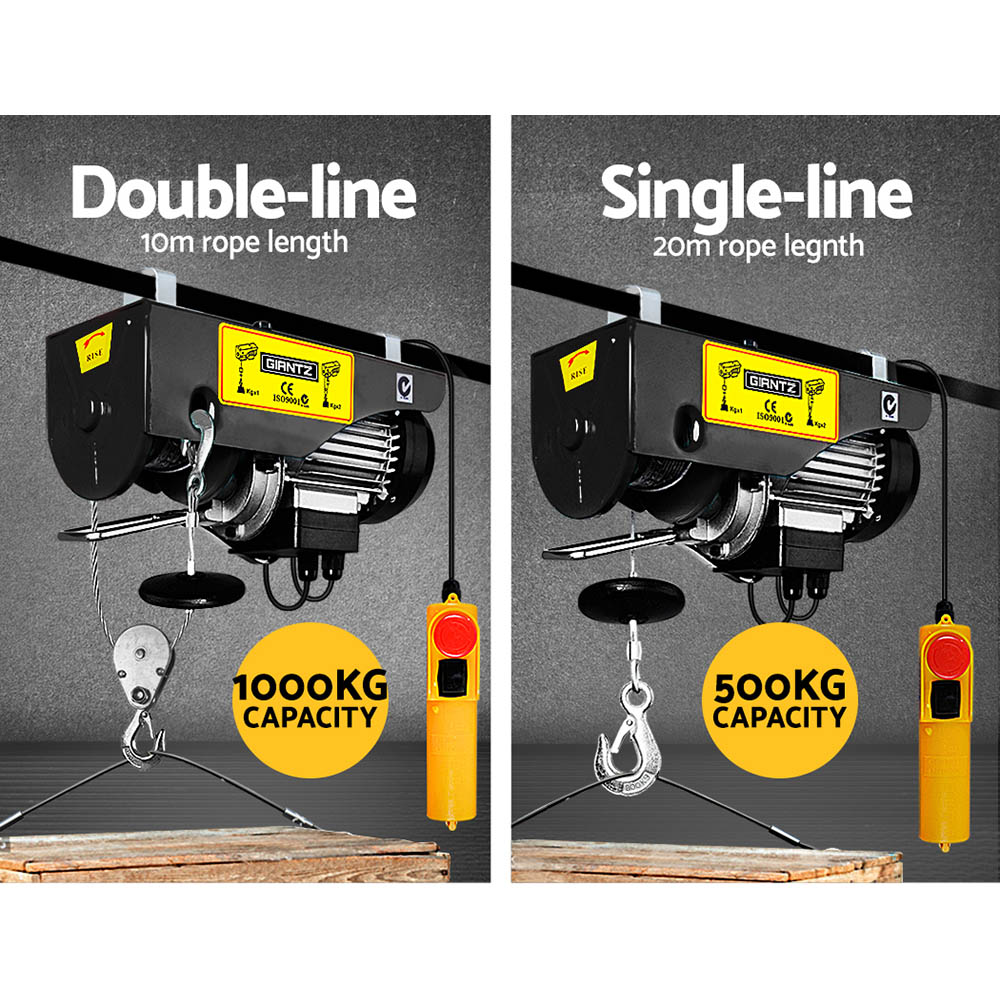

Model 5
Voltage: AC 240V/50Hz
Input power: 1400W
Single rope capacity: 500kg
Double rope capacity: 1000kg
Rope type: 7x19 structure wire rope
Rope diameter: 5.1mm
Lifting speed: Single rope - 10 metres/min, Double rope - 5 metres/min
Lifting height: Single rope - 20m, Double rope - 10m
Weight: 28kg
Length of power cable: 0.8m
Length of control switch cable: 1.8m

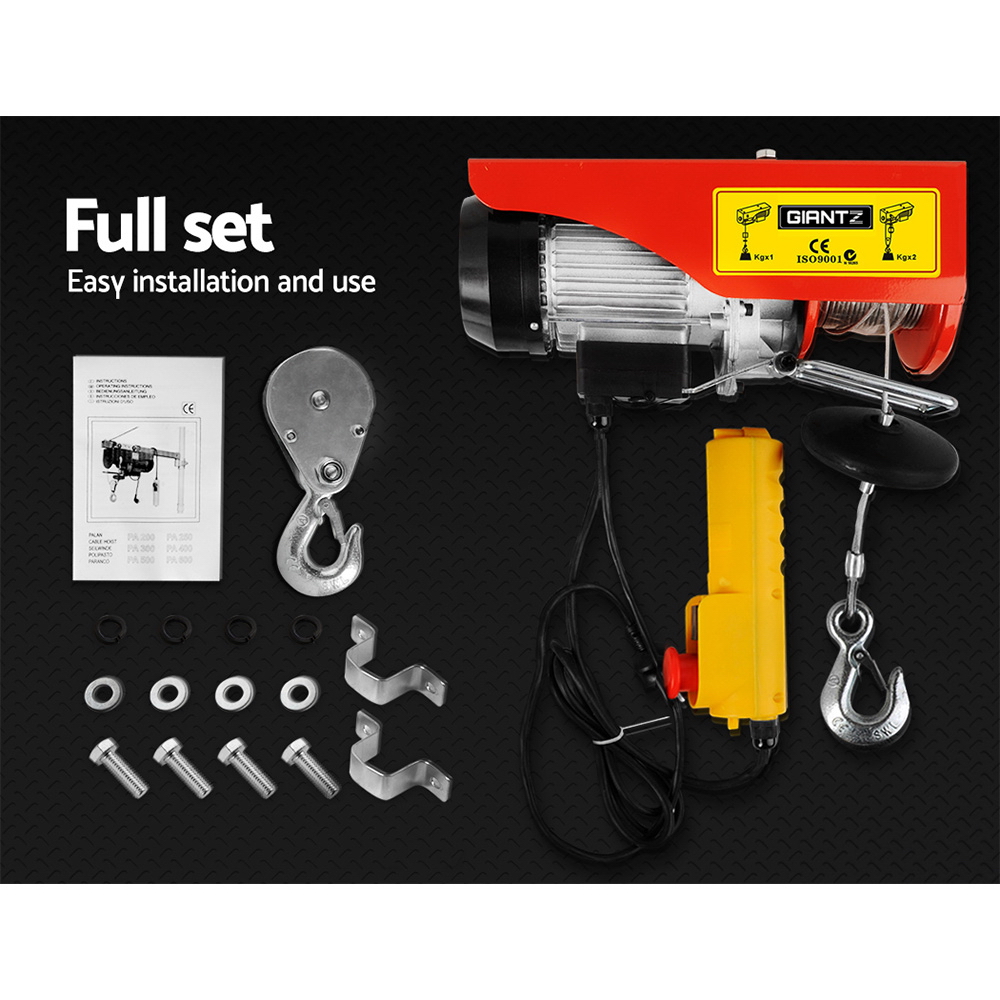

Package Content
GIANTZ Electric Hoist x1
User Manual x1
This product comes with 1 year warranty
