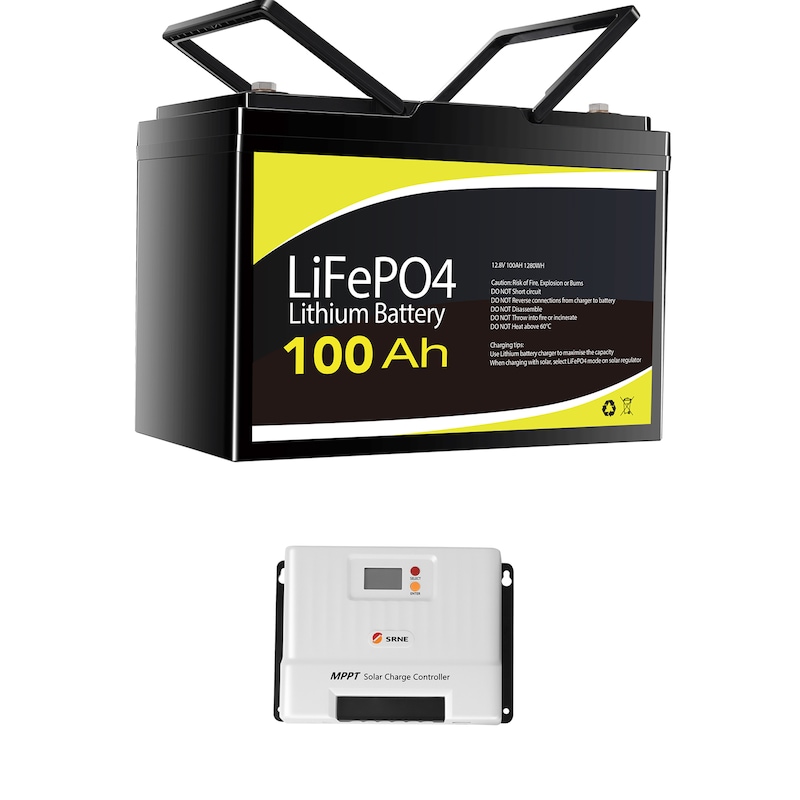

GENTRAX 12V 100Ah Lithium Battery + 20A Solar Charge Controller MPPT Battery Charger

GENTRAX 12V 100Ah Lithium Battery + 20A Solar Charge Controller MPPT Battery Charger

Limited Stock!
Price
$399.95
Collect 399 Everyday Rewards points
Log in to MyDeal to link your card
Shipping
Free Shipping

24-48 hour dispatch
Quantity
Maximum item limit (22) has been reached.

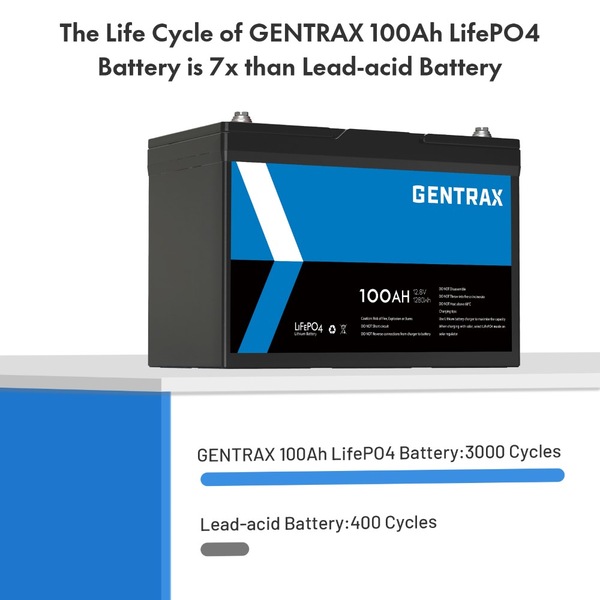

MODEL1: 1PC Gentrax 12V 100Ah LiFePO4 Battery
High-performance lithium iron phosphate battery, long-lasting and stable, injecting strong power into your device!

[Compact size, huge energy] With the same ampere-hour capacity, our lithium iron phosphate battery is smaller in size but provides the same powerful energy. This compact design makes the battery more flexible and suitable for applications where space is limited.

[Diverse applications, unlimited possibilities] Our lithium iron phosphate batteries are not only compact and provide stable power output, but are also proud of their wide range of applications. This battery is suitable for a variety of applications, from portable electronics to emergency backup power.

[Revolutionize your energy experience] Our lithium iron phosphate batteries provide consistent and stable power output. In any usage environment, whether it is high-load working conditions or long-term stable power supply requirements, our batteries can ensure efficient power performance and reliable energy supply.

[Safety, our first commitment] While providing efficient energy, our lithium iron phosphate batteries pay more attention to safety. Utilizing advanced battery technology, we ensure that each battery has safety performance that exceeds industry standards. This means the risk of overheating and burning is reduced, ensuring safe use in any situation.

[Perfect partner, excellent performance] Paired with Victron special charger, you can experience unprecedented smart monitoring. With the help of the exclusive APP, you can understand the battery capacity in real time and monitor the battery's operating status. Guaranteed that what you see is what you get.

IMPORTANT: While our LiFePO4 batteries are top-notch & can be wired with other batteries of its kind, it is not advisable to connect any LiFePO4 batteries in parallel or series. This poses several risks and should only be done in emergency situations. If you must wire batteries together, make sure you are familiar with the correct procedure or seek help from a professional if needed.
Suggestions From the Outbax Team:
* Batteries connected in series should have the same amp-hour rating while batteries in parallel bank should have the same voltage rating.
* As much as possible, only connect batteries in series or parallel during emergency situations.
* It's better to go for batteries with higher voltage when running high-power electrical appliances instead of wiring two battery packs together.
* We have available batteries with larger discharge parameters for fast charge/discharge requirements.
* Our batteries are also available in 200Ah and 300Ah for larger capacity demands.

Nominal Voltage: 12.8V
Charge Voltage Range: 14.2-14.6V
Discharge Cut-off voltage: 10V
Nominal Capacity: 100Ah
Watt Hour: 1280wh
Charge Method: CC/CV
Max.Charge Current: 100A
Continuous Discharge Current: 100A
Max.Discharge Current (5sec): 200A
Dimensions: L: 306 x W: 169x H:215mm
Storage Temperature: -10°C to 50°C
Working Temoerature Range: Charge 0°C to 45°C; Discharge: -20°C to 60°C
Warranty: 2 years

MODEL2: 1PC 20A SRNE MPPT Solar Charge Controller
SRNE MPPT Solar Charge Controller Makes Your Energy Management More Efficient!

[Advanced Maximum Power Point Tracking]
This serie controller adopts the industry-leading MPPT which tracking efficiency up to 99.9% to achieve the maximum energy trackingfor the solar panel, that is, it can quickly and accurately track the maximum power point of the solar battery on any condition.

[Temperature Sampling and Control]
Fitted with a Remote Temperature Sensor, the MPPT Charge Controller can measure battery temperature in real-time. Connect the temperature sensor to the corresponding temperature interface to achieve the high and low temperature protection for the battery and the temperature compensation for the charging voltage of lead-acid battery (no temperature compensation for the lithium battery) , assuring stable and constant charging.

[Support TTL & RS485 Communication]
MPPT solar charge controller has powerful TTL and RS485 communication protocol function. By connecting the controller with other devices, you can easily obtain the status information of the charger, adjust battery charging parameters, etc.

[Intelligent Protection Functions]
MPPT provides multiple protection functions: Over-temperature protection of device, Battery over-temperature protection, Input over-power protection, PV input side too high voltage protection, PV input reverse-connection protection, Reverse charging protection at night.

[Max. Solar Input Power 12V/260W 24V/520W]
The MPPT charge controller can work with standard off-grid 12/24V solar panels. In particular, this controller will significantly increase the efficiency of a solar system where the solar panel voltage is much higher than the battery voltage.

ELECTRICAL PARAMETERS
System voltage: 12V/24V
Rated charging current: 20A
Static power consumption: ≤10mA
Maximum solar panel power: 260W/12V; 520W/24V
Maximum PV open-circuit voltage: 60V (55V protection, 50V recovery)
MPPT operating voltage range: (Battery voltage +2V)~45V
Battery operating voltage range: 8V-32V
MPPT tracking efficiency: >99%
Charging conversion efficiency: 85%-98% (10%-100% of rated power)
Rated load current: 20A
Load operating mode: Light control, light control + time control, manual mode (default), debugging mode, normally open
TTL communication: Baud rate: 9,600 bps
RS485 communication: RJ45 interface, with power output 5V/200 mA,The baud rate is 9,600 bps by default, adjustable.
Bluetooth communication: Optional
CAN communication: RJ45 interface, optional (RV-C protocol)
Historical data: Save the last 200 days of historical data
Protection function: PV overvoltage protection, PV reverse connection protection, PV shortcircuit protection, night reverse charging protection, input power limit protection, over-temperature protection, load short-circuit protection, overload protection, battery over-voltage/over-discharge protection,battery reverse connection protection, battery end short circuit protection.
Grounding type: Grounding of common negative electrode
Cooling mode: Natural heat dissipation
Charging current setting: Yes
Full-charging setting: Yes
Constant voltage output setting: Yes
Charging temperature compensation of lead-acid battery: Yes
Temperature unit setting: Yes
Overload/Short-circuit protection: Yes

ENVIRONMENTAL DATA
Protection grade: IP32
Operating ambient temperature range: -35°C~65°C

MECHANICAL SPECIFICATIONS
Dimension: 181*118*61.7mm
Mounting hole spacing: 161*96mm
Weight: 650g
Fixed hole position: Φ4.5mm
GTIN: 9355348073645
