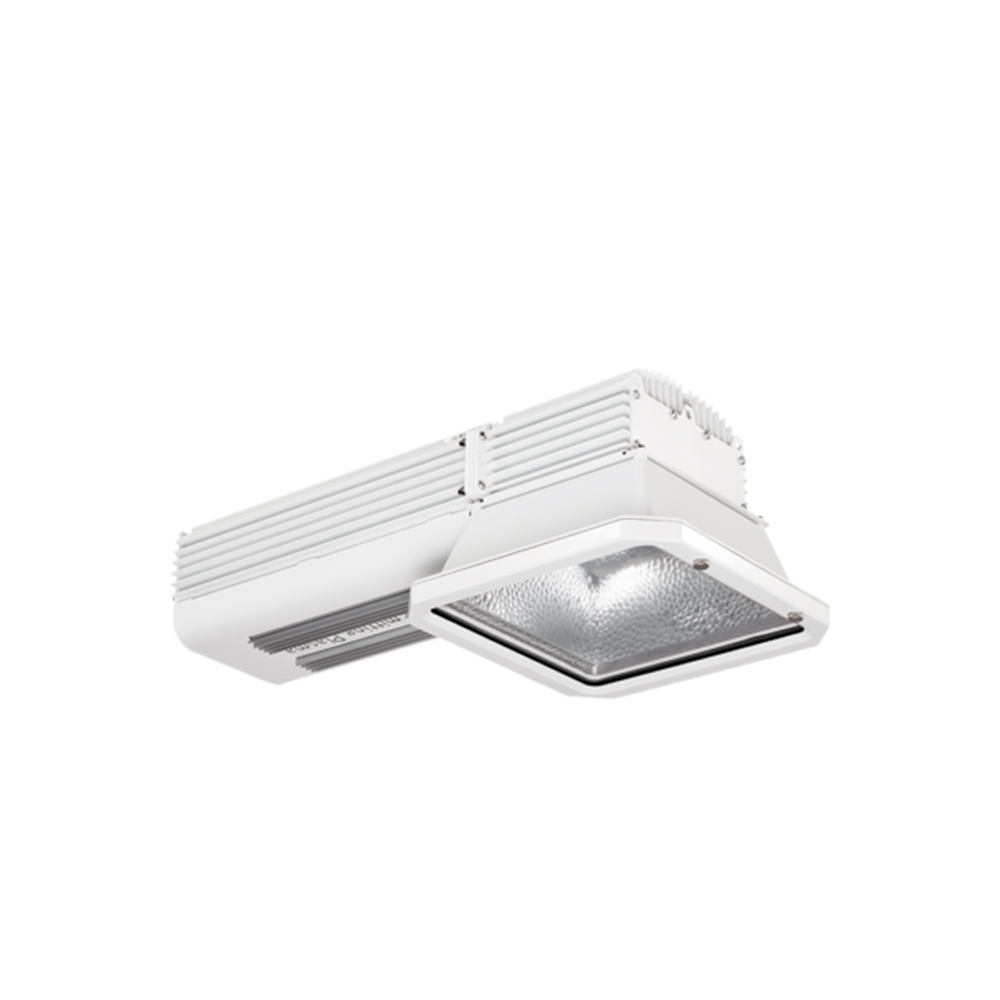

Gavita Pro Line E-Series LEP 270E Plasma SUP Fixture - Supplemental Spectrum - 240V

For plants to flourish, nothing beats the sun's spectrum. Plants have evolved for millions of years to thrive in balanced, full-spectrum light that includes UVA and UVB rays. Full-spectrum lighting means the highest-quality crops. That's where Gavita plasma technology comes in.

We have a supplemental plasma light to optimize the quality of your crop. This plasma light adds everything to the HPS spectrum your plant needs to bring it to the next level, including UVB and UVA. The Gavita LEP reflector has a square throw. One advantage this gives is that the fixtures can be inter-positioned between the rows of HPS fixtures. For a commercial layout, we would make two separate lighting plans: One for HPS, one for LEP. That way you achieve the highest uniformity and lightly spread at optimal light levels. Position your LEP’s at the same height as your HPS fixtures. At the recommended height of 105 cm from the crop (for HPS), this would yield a 1.6 x 1.6m footprint with light levels of

Features

• Supplemental spectrum for use in combination with HPS (SUP)
• Better rooting and morphogenesis
• Shorter vegetative cycle
• Healthy and resilient plants
• Stimulation of essential oils, terpenes, and flavonoids
• Lamp lifetime of 50,000 hours (SUP)

Specifications

• Version: 120 - 240 Volt (+/- 10%) SUP 120 - 240 Volt (+/- 10%) GROW
• Input current: 2.75 - 1.5 Amps 2.75 - 1.1 Amps
• Input power at 100% 290 Watt (+/- 3%) 290 Watt (+/- 3%)
• Power factor: 0.95 - 0.99 0.95 - 0.99
• Input frequency: 50-60 Hz
• Inrush current: < 50 A
• Product weight: circa 16.5 lbs
• Dimensions (LxWxH): 24.8” x 12.8” x 9.8”
• Temperature ambient: 32-95 °F
• Relative humidity: 25 – 70% (non-condensing)
• Light Source: LUXIM LiFi STA 41.01 or 41.02 plasma emitter
• Product weight 11 kg
• Temperature case 80 °Celsius
• Temperature ambient 0 ~ 35 °Celsius
• Input voltage +/-10% 230 - 240 V AC
• Input current 1.5 Amp typical (1,7 Amp max.)
• Inrush current ≤ 30 Amps
• Power factor 0.98
• Total Harmonic Distortion < 10%
• Frequency 50 - 60 Hz
• Certification CE
• Insulation Class 1 - requires an earth connection
• Power inlet IEC C14
• External control signal Gavita Master controller analog protocol (<11,5V) - see manual EL controller
• External dim connector RJ14 connector builds in (6P6C On/off only.
• Dimming is not supported by the Master controller)

What's in the Box

• [1] x Gavita Pro Line E-Series LEP 270E Plasma SUP Fixture - Supplemental Spectrum | 240V
