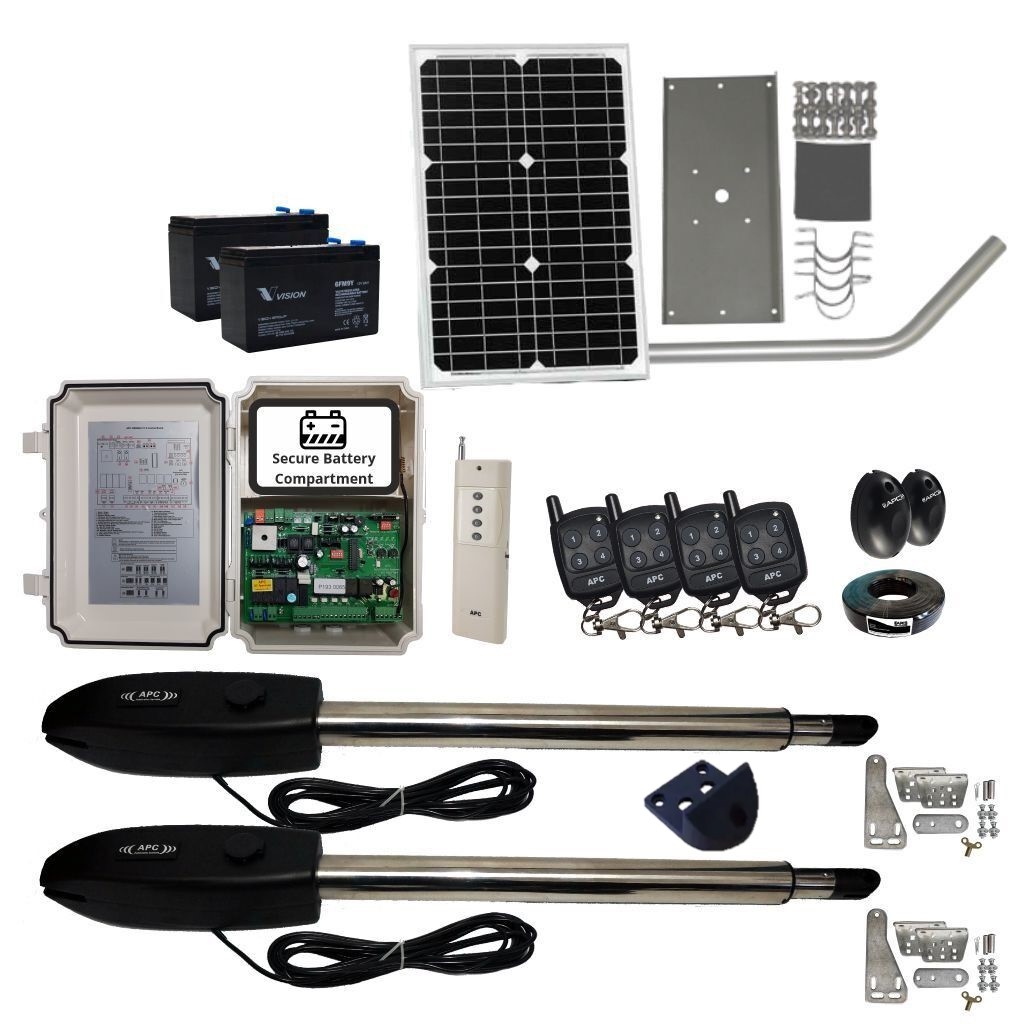

Kit Includes
- Slimline Stainless Steel Linear Actuator Kit (QTY: 2)
- Weatherproof Control Box with Built in Battery Compartment (QTY: 1)
- Four Button Keyring Remote (QTY: 4)
- Four Button Long Distance Remote (QTY: 1)
- 7aH High Capacity Battery (QTY: 2)
- Gate Sensor | Photoelectric Gate Safety Sensor - Safety Beam Infrared Photocell Gate Sensor Detector (QTY: 1)
- 10m 4 Core Non Shielded Cable (QTY: 1)
- 24v 20 Watts Solar Panel (QTY: 1)
- Solar Panel Fence Post & Bracket for 20 Watt Solar Panels (QTY: 1)
- 65mm High Centre Driveway Rubber Gate Stop with Steel Base (QTY: 1)
Product Information
Heavy Duty Slimline Stainless Steel Telescopic Linear Actuator
Heavy Duty 24V Motor with powerful and quiet operation comprised of a cast alloy rear housing and a stainless steel piston for the ultimate compact design and neat appearance Easy to use manual override using the supplied butterfly key in a emergency situation. The system can handle light and heavy gates up to 400kg maximum weight or up to 5m maximum length.
Emergency Clutch Override
Easy manual override in case of an emergency using the supplied butterfly key, slot in and turn clockwise to operate the gates manually.
All Metal Gears
Powerful and whisper quiet 24V motor and all metal gears
Actuator Specifications
| Gear Type | Metal Lead Screw, All Metal Gears |
| Motor Voltage | 24v DC |
| Manual override | Via override butterfly key supplied |
| Working temperature | -10° - 50° |
| Duty Cycle | 20% |
| Maximum stroke | 350mm |
| Gates size | 5m max |
| Gate weight | 400kg max |
Installation Geometry
Weatherproof Control Box
The CBSW24 series smart control panel is an easy to connect, simple to setup and feature rich control box vast amount of features as listed below:
Fully weatherproof with a seal
Pre Connected Weatherproof Glands for Wiring Connections
Hinged door with a padlock slot for added security
System Features
Standalone Solar System
High Capacity Battery System
Built In Solar Regulator
Automatic Setup Feature to learn the Ramp Up and Slow Down points of the gates
Automatic Feature Learning will learn all features of the remote with a simple pairing process
Ultra High Security Rolling Code remote system allows for the highest form of security for entry to your property
Adjustable Automatic Close time up to 3 minutes
Safety Features
Adjustable Over current adjustments
Safety Sensor connection input
Automatic Courtesy Light Output
Special Features
Party mode: The automatic closing can be cancelled using button 3 on the remote control buttons when expecting a visitor to arrive, reversing a trailer and numerous other uses.
Service Gate Function (12V 250mA max.). Using the second lock output will allow the user to power and control a second electric striker installed on a pedestrian access gate the second lock is powered from the control panel and controlled using button 4 on the remote. Wired and wireless Accessories can also be use to control the Lock 2 function.
Accessories Compatibility
Constant 24V DC Accessories Output
Switched 24V DC Output for closing direction (used for safety devices to conserve power, powered on when required)
Open/Stop/Close Inputs for Gate Operation
Smart Opening & Closing LED indicators: Green LED on during opening and Red LED on during the closing
Automatic Electric Lock Output
Controlling Options
Any or all of the following may be connected to operate the gate
Remote controls
Entry and Exit push button with isolation key switches (Wired and Wireless Options Available)
Keypads (Wired and Wireless Options Available)
Exit/entry sensors
Intercom system with dry contact output
Automatic switching timer
WiFi Control System (App Based Control)
GSM Control Systems (Mobile Call/SMS based Control)
24V 20 Watt Solar Panel (Upgradable to 20 Watt or 60 Watt options)
Mono Crystalline silicon solar cells with 3mm tempered glass and two sheets of tedlar-polyeaster-tedlar (TPT) and ethylene Vinyl acetate (EVA). This protects against moisture penetrating into the module. The solar panel is supplied with a fence mounting bracket system along with a pre-connected 5 metre cable (maximum cable distance is 20 metres), the solar panel is also fitted with a diode to prevent feed back from the batteries.
| Specifications |
| Maximum Power | 20W/40W/60W |
| Optimum Operational Voltage | 36V |
| Open Circuit Voltage | 43.2V |
| 20W Panel Dimensions | 640 x 300 x 25mm |
| 40W Upgrade Panel Dimensions | 535 x 515 x 30mm |
| 60W Upgrade Panel Dimensions | 805 x 535 x 30mm |
24V 9aH Battery System
Supplied with the automation kit the 24V 9aH battery system will allow for continued use of the gate system weather in day or night. The system can operate for up to one week of regular residential use without any charge from the solar panel (winter months/wet season) and will automatically recharge from sunlight. When the system batteries are fully charged it will continue to float charge to keep the batteries topped up ready for use. In a case of extended use requirements or higher duty there are upgrade options to 17aH and 33aH battery systems.
Remote Features
Specifications
| Power Input | 20W 24V Solar Panel (Upgradable) |
| Regulator | Built In On Board Regulator |
| Motor Output Voltage | 24v DC |
| Battery System | 24V 9aH (Upgradable) |
| Working temperature | -10° - 50° |
| RF | Rolling code 433.92mhz |
| Lock Output (Primary) | 24V DC |
| Lock Output (Secondary) | 12V DC |
| Auxiliary Inputs | 0V Momentary Pulse |
| Accessories Voltage | 24V DC |
| Over current | 1A to 5A |
Long Distance Remote
The RC450S Long range remote is capable of achieving operating distances of up to 400 metres, coupled with the add on booster antenna it can reach up to 800 metres. With these distances you can operate the gate system from around the property, at the home or from the workshop. Multiple long range remotes can be used on the one system.
PE2000 Photoelectric Safety Sensor Set
The Safety sensor set is used to prevent the closing cycle occurring during the case of the sensor path being interrupted by vehicles, trailers or any other obstacles.
If the gate begins to close and the sensor path is interrupted then the gate will stop and return to the open position.
Both sensors (transmitter and receiver) are wired back to the control box of the gate system using the supplied cable roll, alternatively a reflective sensor upgrade is available which will only require wiring from the sensor mounted at the control box.
- Up to 15 Metres Infrared beam operating distance
- Only powers on when the command is given to close the gates
- Alignment led to assist in the installation process
- Weather sealed with the supplied cover seals
- Easy screw down wiring termination
65mm Rubber Gate Stop
The supplied 65mm rubber gate stop with steel base is used to for the gate alignment and tension whilst they are in the closed position, it also allows the gates to be mounted up to 50mm off the ground.
Being that the minimum vehicle height from the ground is 100mm it will not interfere with the vehicle. In the case that the vehicle was lower than the typical minimum the stopper would not cause any damage as it is constructed from solid rubber but retains its general strength from the steel plate used at the bottom side contacting the driveway.
