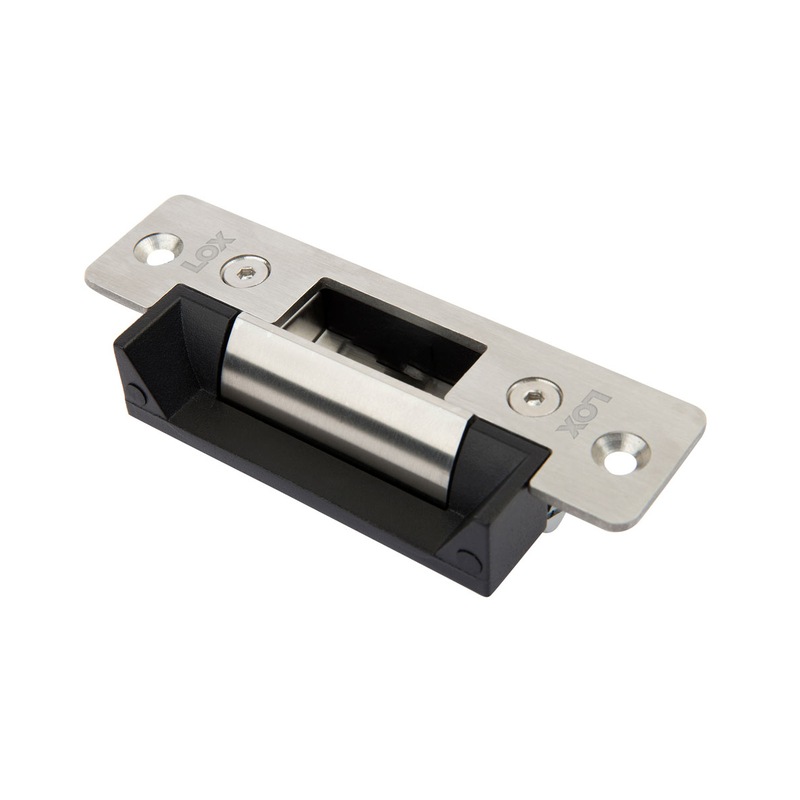

LOX ES10 Electric Strike Non-Monitored 12/24V DC Weather Resist IP56

LOX Electric Strike
ES10

The ES10 series electric strikes are designed for use with all access control systems.
Retrofit compatible with FSH and Padde

Features:

• Stainless steel faceplate.
• Fail safe/fail secure is changeable on site.
• Suitable for use on hinged doors to work with an extensive range of locks.
• Successfully fire rated up to 4hrs on fire door assemblies in accordance with AS/NZS 1905, Part 1-1997 and BS 476: Part 22-1987 (Fire resistant door sets).

Specifications:

• Dual voltage 12/24VDC 12VDC = 200mA 24VDC = 100mA
• Non-Monitored Weather Resistant IP56
• Fire rated up to 4 hours
• Power to lock/power to open field selectable
• Stainless steel faceplate
• Stainless steel striker
• Operational temp range -20DEG.C to 60DEG.C
• Solenoid can be continuously powered
• Optional extension lips
• Self adhesive installation template
• Includes tab mounting kit
• Pre-drilled for extension lips
• Holding strength up to 1200kg tested 1 Million Cycles
• ES10 is suitable for 18mm latch with a 3mm door gap
