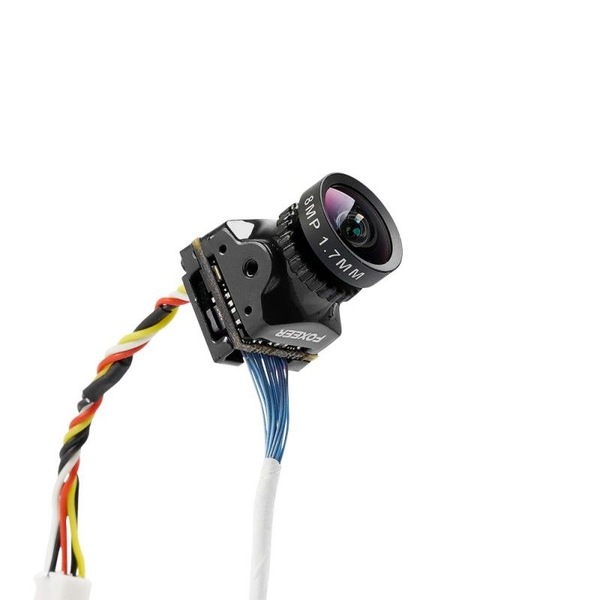

Foxeer DigiSightV2 HS1260 720P Digital Analog SharkByte HD FPV Camera (Black)

Foxeer DigiSightV2 HS1260 720P Digital Analog SharkByte HD FPV Camera (Black)

Hurry! 6 items left!

Price	$79.90
	Collect 237 Everyday Rewards points Score 3x points on every order Ends 11:59pm 03/12/2024. Exclusions & T&Cs apply Log in to MyDeal to link your card
Shipping	Free Shipping
	24-48 hour dispatch See delivery details

Quantity

Add to wishlist

FOXEER DIGISIGHTV2 HS1260 720P DIGITAL ANALOG SHARKBYTE HD FPV CAMERA (BLACK)

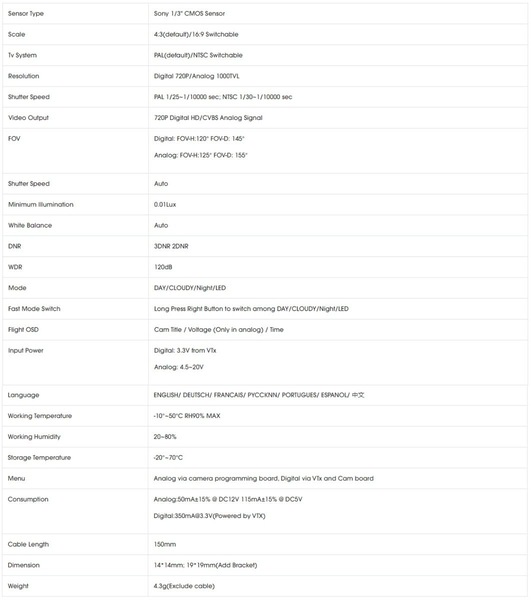

SPECIFICATIONS

Sensor Type: Sony 1/3" CMOS Sensor

Scale: 4:3(default)/16:9 Switchable

Tv System: PAL(default)/NTSC Switchable

Resolution: Digital 720P/Analog 1000TVL

Shutter Speed: PAL 1/25~1/10000 sec; NTSC 1/30~1/10000 sec

Video Output: 720P Digital HD/CVBS Analog Signal

FOV : Digital: FOV-H:120° FOV-D: 145°; Analog: FOV-H:125° FOV-D: 155°

Shutter Speed: Auto

Minimum Illumination: 0.01Lux

White Balance: Auto

DNR: 3DNR 2DNR

WDR: 120dB

Mode: DAY/CLOUDY/Night/LED

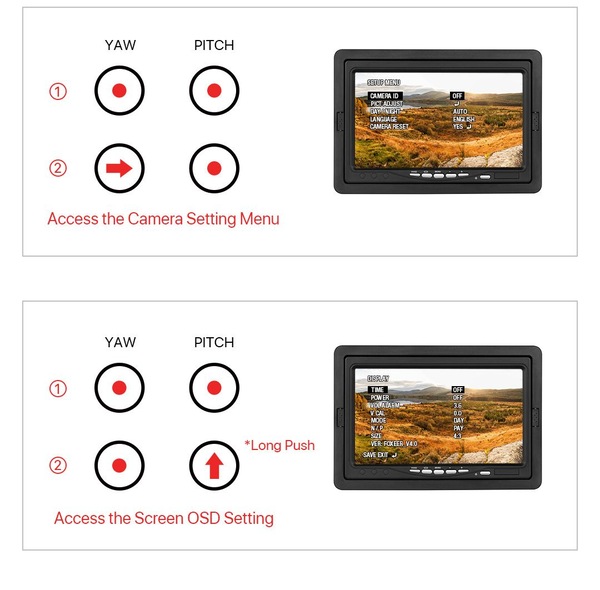

Fast Mode Switch: Long Press Right Button to switch among DAY/CLOUDY/Night/LED

Flight OSD: Cam Title / Voltage (Only in analog) / Time

Input Power: Digital: 3.3V from VTx; Analog: 4.5~20V

Language: ENGLISH/ DEUTSCH/ FRANCAIS/ PYCCKNN/ PORTUGUES/ ESPANOL/ 中文

Working Temperature: -10°~50°C RH90% MAX

Working Humidity: 20~80%

Storage Temperature: -20°~70°C

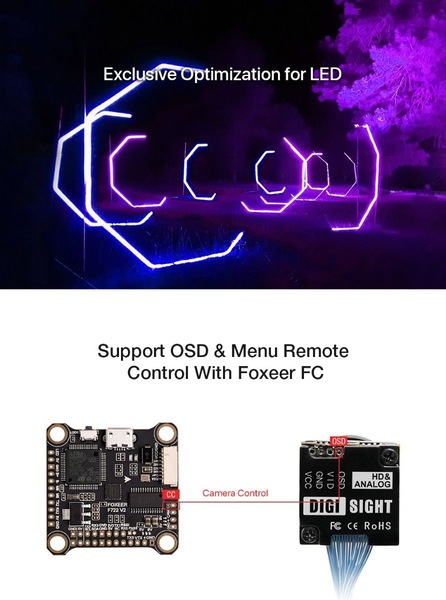

Menu: Analog via camera programming board, Digital via VTx and Cam board

Consumption: Analog:50mA±15% @ DC12V 115mA±15% @ DC5V; Digital:350mA@3.3V(Powered by VTX)

Cable Length: 150mm

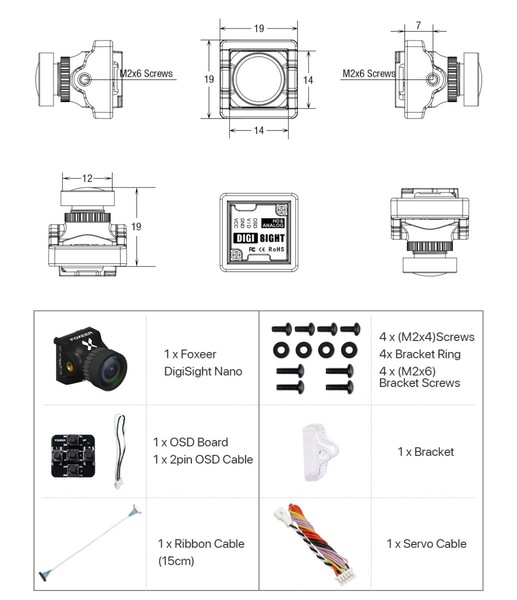

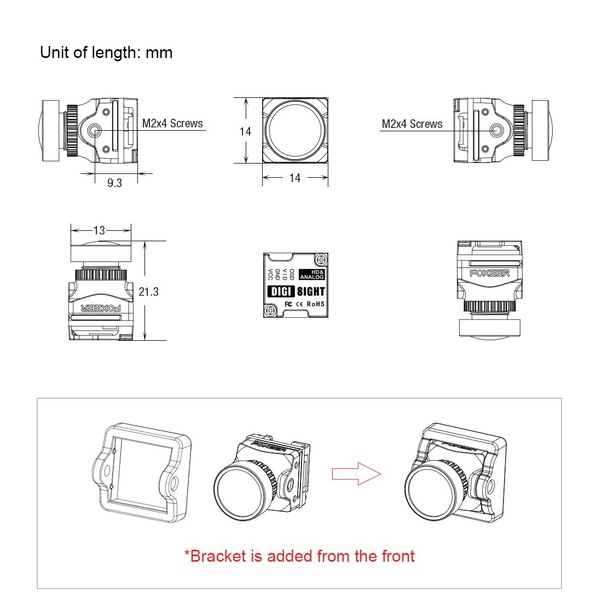

Dimension: 14*14mm; 19*19mm(Add Bracket)

Weight: 4.3g(Exclude cable)

WHAT IS INCLUDED

1x Foxeer DigiSight Nano

1x OSD Board

1x 2-pin OSD Cable

1x Ribbon Cable (15cm)

4x (M2x4) Screws

4x Bracket Ring

4x (M2x6) Bracket Screws

1x Bracket

1x Servo Cable

MPN: HS1260-BLK
