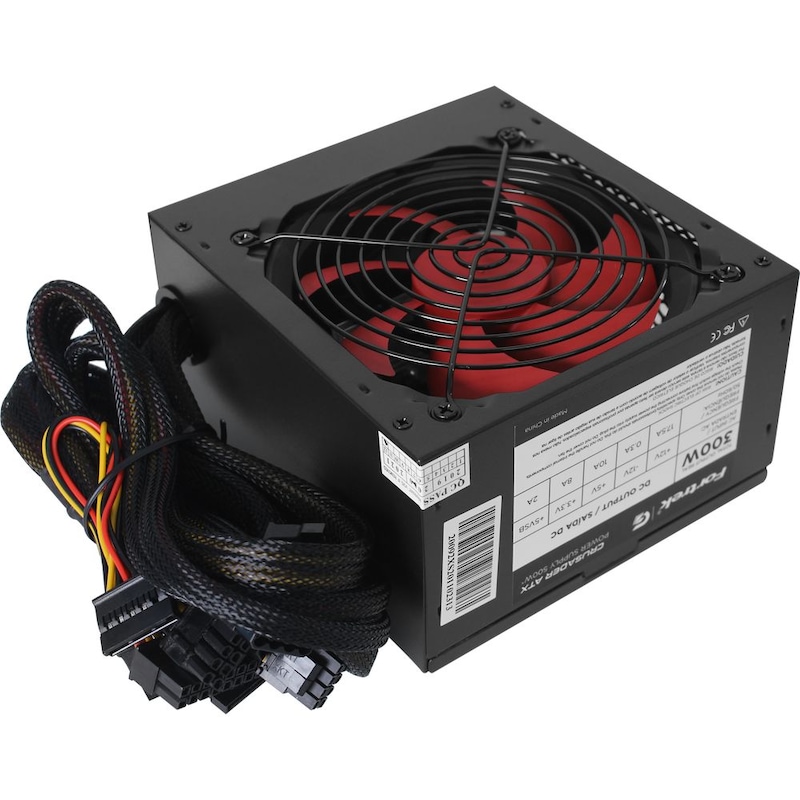

Fortrek 76955 Crusader ATX Power Supply 300W, Bivolt PSU - Black

Fortrek 76955 Crusader ATX Power Supply 300W, Bivolt PSU - Black

Be the first to review this product

Hurry! 7 items left!

Price	$51.99
	Collect 51 Everyday Rewards points Log in to MyDeal to link your card
Shipping	$10.00 Australia-wide (per item)
	24-48 hour dispatch See delivery details

Quantity

Add to wishlist

Fortrek The Crusader Power Supply is suitable for entry-level PCs, but also offers all the features a modern PSU would have!

Key Features:

12 cm fan with thermal speed control

Output protections

Clean DC outputs with low ripple and noise

What you will get:

1 x 300W Power Supply Unit

*AC Power Cable not included

Additional Information:

Brand: Fortrek

Model: 70457

Real Power: 300W

Input Voltage: 115/230V

Frequency: 50Hz-60Hz

Dimensions: 140 x 150 x 86mm

FAN: 120mm

Dual voltage

Connectors:

Pins: Motherboard - 20+4 pins (450mm)

Pins P8(4+4) (550mm)

Pins (6+2) (550mm)

2 x Pins PATA+SATA+SATA (550mm+150+150)

115-230V Switch, I/O switch

Without power cable

Get yours now!

Efficiency

The minimum efficiency of power supply should be over than 62 under the maximum and 20% load. And should be over 65under the 50% load. Load measurements are performed at 115/230Vac//60/50Hz input.

Efficiency test condition as below:

Load	+5V	+3.3V	+12V	-12V	+5Vs	Total (W)
20%. Load	2	1.0	3.2	0.06	0.4	60W
50%. Load	5	4	8.75	0.15	1.0	150W
100%. Load	10	8	17.5	0.3	2.0	300W

DC Load Requirements

Output Voltage	MIN	MAX	Combined	Total
+5V	0.2A	10A	80W	300W
+3.3V	0.1A	8A
+12V	0.5A	17.5A	220W
-12V	0.0A	0.3A	3.6W
+5Vsb	0.05A	2.0A	10W

SKU: 70457
