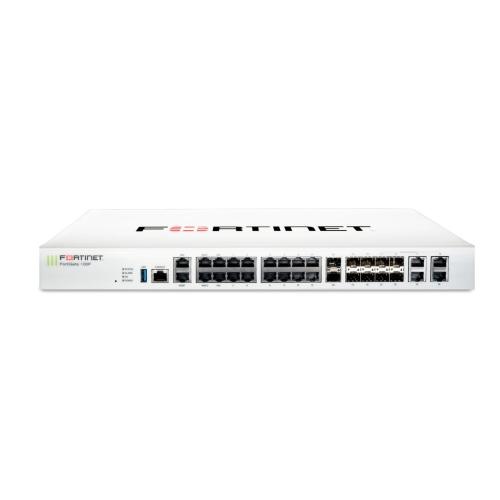

Fortinet FG-100F Enterprise Firewall 22x GE RJ45 ports (2x WAN, 1x DMZ, 1x Mgmt, [FG-100F]
3x

Fortinet FG-100F Enterprise Firewall 22x GE RJ45 ports (2x WAN, 1x DMZ, 1x Mgmt, [FG-100F]


Fortinet FG-100F Enterprise Firewall 22x GE RJ45 ports (2x WAN, 1x DMZ, 1x Mgmt, 2x HA,16x Switch Ports with 4 SFP Port Shared Media) 4x SFP, 2x 10 GE SFP+ FortiLinks, Dual PSU Redundancy - Max Managed FortiAPs (Total/Tunnel) 64/32

The FortiGate 100F series combines next generation firewall and SD-WAN capabilities for mid-sized to large enterprise distributed locations. Powered by purpose-built Secure SD-WAN ASIC, FortiGate 100F delivers optimal performance for business-critical applications along with best security effectiveness.

Security

- Identifies thousands of applications inside network traffic for deep inspection and granular policy enforcement
- Protects against malware, exploits, and malicious websites in both encrypted and non-encrypted traffic
- Prevent and detect against known and unknown attacks using continuous threat intelligence from AI powered FortiGuard Labs security services

Performance
- Delivers industry's best threat protection performance and ultra-low latency using purpose built-security processor (SPU) technology
- Provides industry-leading performance and protection for SSL encrypted traffic

Certification
- Independently tested and validated best security effectiveness and performance
- Received unparalleled third-party certifications from NSS Labs, ICSA, Virus Bulletin and AV Comparatives

Networking

- Best of Breed SD-WAN capabilities to enable application steering using WAN path control for high quality of experience
- Delivers advanced networking capabilities, high-performance, and scalable IPsec VPN capabilities to consolidate networking and security

Management

- Includes management console that's effective, simple to use, and provides comprehensive network automation & visibility.
- Provides Zero Touch Integration with Security Fabric's Single Pane of Glass Management
- Predefined compliance checklist analyzes the deployment and highlights best practices to improve overall security posture

Security Fabric

- Enables Fortinet and Fabric-ready partners' products to provide broader visibility, integrated end-to-end detection, threat intelligence sharing and automated remediation
- Automatically builds Network Topology visualizations which discover IoT devices and provide complete visibility into Fortinet and Fabric-ready partner product

Deployment - Next Generation Firewall (NGFW)

- Reduce complexity by combining threat protection security capabilities into single high-performance network security appliance
- Identify and stop threats with powerful intrusion prevention beyond port and protocol that examines the actual applications in your network traffic
- Delivers industry's highest SSL inspection performance using industry-mandated ciphers while maximizing ROI
- Proactively blocks newly discovered sophisticated attacks in real-time with advanced threat protection


Secure SD-WAN

- Secure direct Internet access for Cloud applications for improved latency and reduce WAN cost spending
- High-performance and cost-effective threat protection capabilities
- WAN Path Controller and Link Health Monitoring for better application performance
- Security Processor powered industry's best IPsec VPN and SSL Inspection performance
- Simplified Management and Zero-Touch deployment


Interfaces


1. USB Port
2. Console Port
3. 2x GE RJ45 MGMT/DMZ Ports
4. 2x GE RJ45 WAN Ports
5. 2x GE RJ45 HA Ports
6. 12x GE RJ45 Ports
7. 2x 10 GE SFP+ FortiLink Slots
8. 4x GE SFP Slots
9. 4x GE RJ45/SFP Shared Media Pairs

Hardware Specifications
GE RJ45 Ports
12
GE RJ45 Management/HA/DMZ Ports
1 / 2 / 1
GE SFP Slots
4
10 GE SFP+ Slots
2
GE RJ45 WAN Ports
2
GE RJ45 or SFP Shared Ports *
4
USB Port
1
Console Port
1
Internal Storage
1x 480 GB SSD
Included Transceivers
0
System Performance - Enterprise Traffic Mix
IPS Throughput
2 2.6 Gbps
NGFW Throughput 2, 4
1.6 Gbps
Threat Protection Throughput 2,
5 1 Gbps
System Performance
Firewall Throughput
(1518 / 512 / 64 byte UDP packets)
20 / 18 / 10 Gbps
Firewall Latency
(64 byte UDP packets) 5 µs
Firewall Throughput (Packets Per Second)
15 Mpps
Concurrent Sessions (TCP)
1.5 Million
New Sessions/Second (TCP)
56,000
Firewall Policies
10,000
IPsec VPN Throughput (512 byte)
1 11.5 Gbps
Gateway-to-Gateway IPsec VPN Tunnels
2,500
Client-to-Gateway IPsec VPN Tunnels
16,000
SSL-VPN Throughput
750 Mbps
Concurrent SSL-VPN Users
(Recommended Maximum, Tunnel Mode)
500
SSL Inspection Throughput (IPS, avg. HTTPS) 3
1 Gbps
SSL Inspection CPS (IPS, avg. HTTPS) 3
1,800
SSL Inspection Concurrent Session
(IPS, avg. HTTPS) 3
135,000
Application Control Throughput (HTTP 64K) 2
2.2 Gbps
CAPWAP Throughput (1444 byte, UDP)
15 Gbps
Virtual Domains (Default / Maximum)
10 / 10
Maximum Number of FortiSwitches Supported
24
Maximum Number of FortiAPs
(Total / Tunnel Mode)
64 / 32
Maximum Number of FortiTokens
5,000
Maximum Number of Registered FortiClients
600
High Availability Configurations
Active / Active, Active / Passive, Clustering
Dimensions
Height x Width x Length (inches)
1.73 x 17 x 10
Height x Width x Length (mm)
44 x 432 x 254
Form Factor
Rack Mount, 1 RU
Weight
7.25 lbs (3.29 kg) 7.56 lbs (3.43 kg)
Environment
Power Required
100-240V AC, 60-50 Hz
Maximum Current
100V / 1A, 240V / 0.5A
Power Consumption (Average / Maximum)
35.1 W / 38.7 W 35.3 W / 39.1 W
Heat Dissipation
119.77 BTU/h 121.13 BTU/h
Environment
Operating Temperature
32-104°F (0-40°C)
Storage Temperature
-31-158°F (-35-70°C)
Operating Altitude
Up to 7,400 ft (2,250 m)
Humidity
10-90% non-condensing
Noise Level
40.4 dBA
Compliance
FCC Part 15B, Class A, CE, RCM, VCCI, UL/cUL,
CB, BSMI
Certifications
ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN;
IPv6
- MPN: FG-100F
MPN: FG-100F
