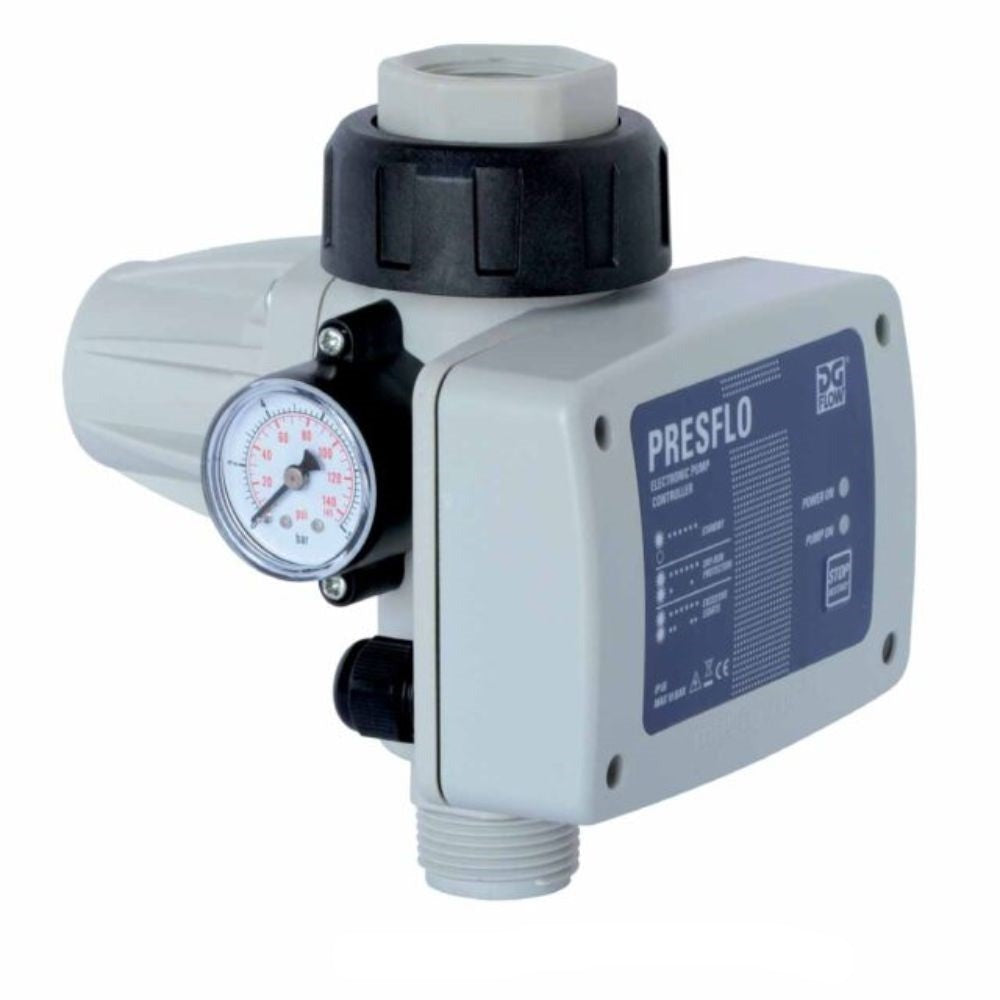

Flux Fl16 Electronic Flow Switch 2.2KW

The PresFlo electronic pressure flow regulator starts/stops the pump based on demand. It is capable of satisfying the most varied of needs while guaranteeing the pump works reliably and safely. It substitutes a traditional pressure switch/surge tank system while offering reduced dimensions, no maintenance requirements, constant flow and pump protection.

*Now with Plug & Play leads.

 Specifications

• Max flow rate: 200 l/min
• Voltage: 230 Volt a.c.
• Frequency: 50 Hz
• Max Current: 16 Amp
• IP Protection: IP 65
• Working temperature: 0 65 °C
• Connections: 1" BSP female 3 piece union
• Working/bursting pressure: 10 Bar / > 40 Bar
• Weight: 1.45Kg
• AS4020 Approved

 Product Features:

• Spring loaded water accumulator guarantees high level of protection against over pressure and preventing excessive running and stopping. No need to fit air expansion tanks
• Body with built in check valve. Sturdy, techno polymer body, suitable for use in drinking water distribution systems
• Ease of use and monitoring through flashing LEDS and built in pressure gauge
• Tropicalised circuit board assures complete protection against moisture
• Systems protection against dry running and excessively frequent starts
• Available in 1.5 bar and 2.0 bar start pressure models
• Shuts down flow rate of 2 litres per minute

 Applications

• Domestic water supply
• Lawn and garden irrigation
• Water transfer

Models:

• PF1615P, PF1622P

The product image shown is for illustration purpose only
