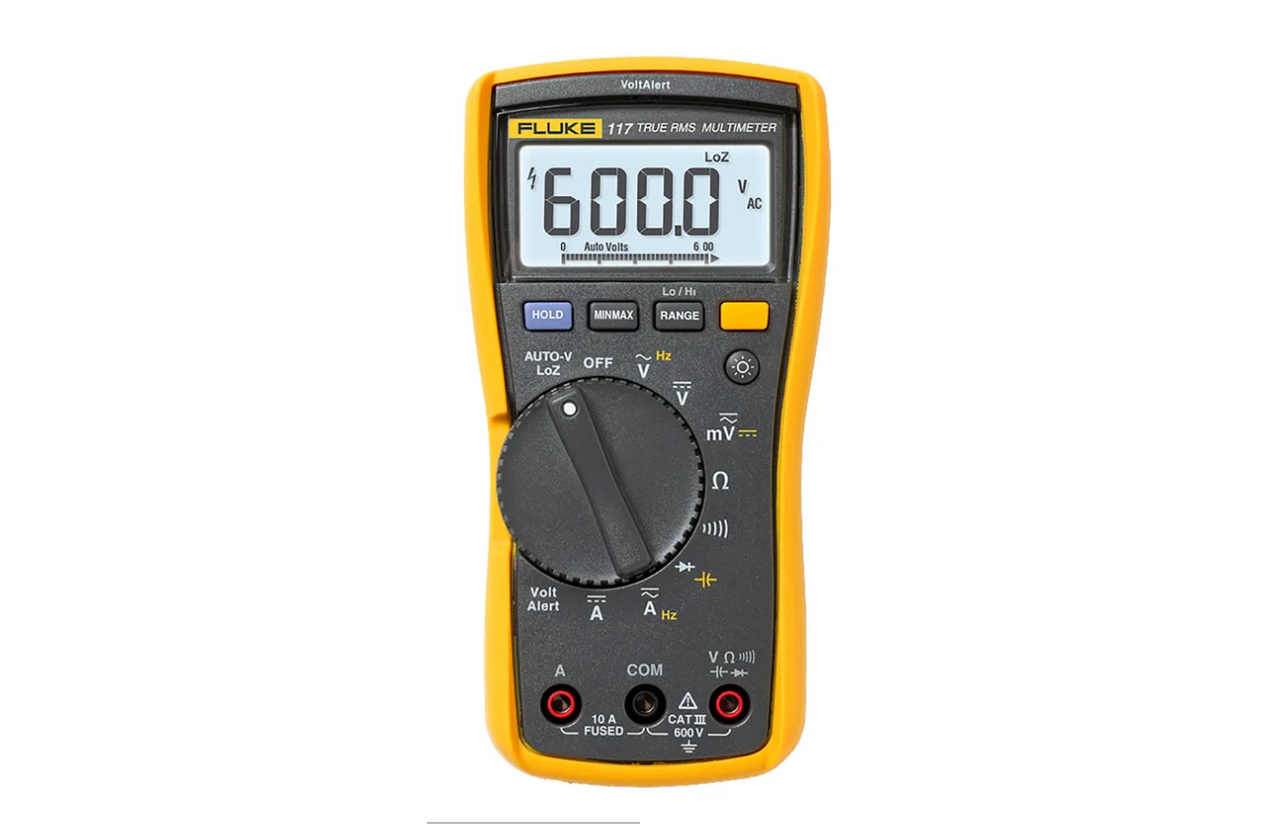

Fluke 117 Multimeter

The Fluke 117 compact True RMS multimeter is popular for use in demanding settings such as commercial buildings, hospitals and schools. It includes integrated non-contact voltage detection to help get the job done faster.

Features & Benefits

VoltAlert Technology for integrated non-contact voltage detection
AutoVolt feature for automatic AC/DC voltage selection
LoZ: Low input impedance to eliminate stray voltage
Large white LED backlight
True RMS
Min/Max/Average to record signal fluctuations
Current measurement 20A (30 seconds momentary 10A continuous)
Resistance, continuity, frequency and capacitance testing capability
Fluke 322 Compact Clamp Meter
Accurate low current measurements
ToolPak Magnetic Meter Hanging Strap
11A, 1000V FAST fuse (Fluke part no. 803293)
CAT III 600 V safety rated

Additional Specifications

* DC Voltage Accuracy: 0.5% + 2d
* AC Voltage Accuracy: 2.0% +3d
* DC Current Accuracy: 1.0% +3d
* AC Current Accuracy: 1.5% +3d
* Resistance Accuracy: 1.5% + 2d
* Diode Test Range: 2.000V
* Diode Test Resolution: 0.001V
* Diode Test Accuracy: 0.9% +2d
* Capacitance Accuracy: 1.9% +2d
* Display Count: 6000
* Display Update: 4/sec
* Bar Graph Segments: 33
* Bar Graph Update: 32/sec

Note

For Calibrated Articles - Please note that accuracy is specified for 1 year after calibration, at operating temperatures of 18 oC to 28 oC, with relative humidity at 0 % to 95 %.

Contents

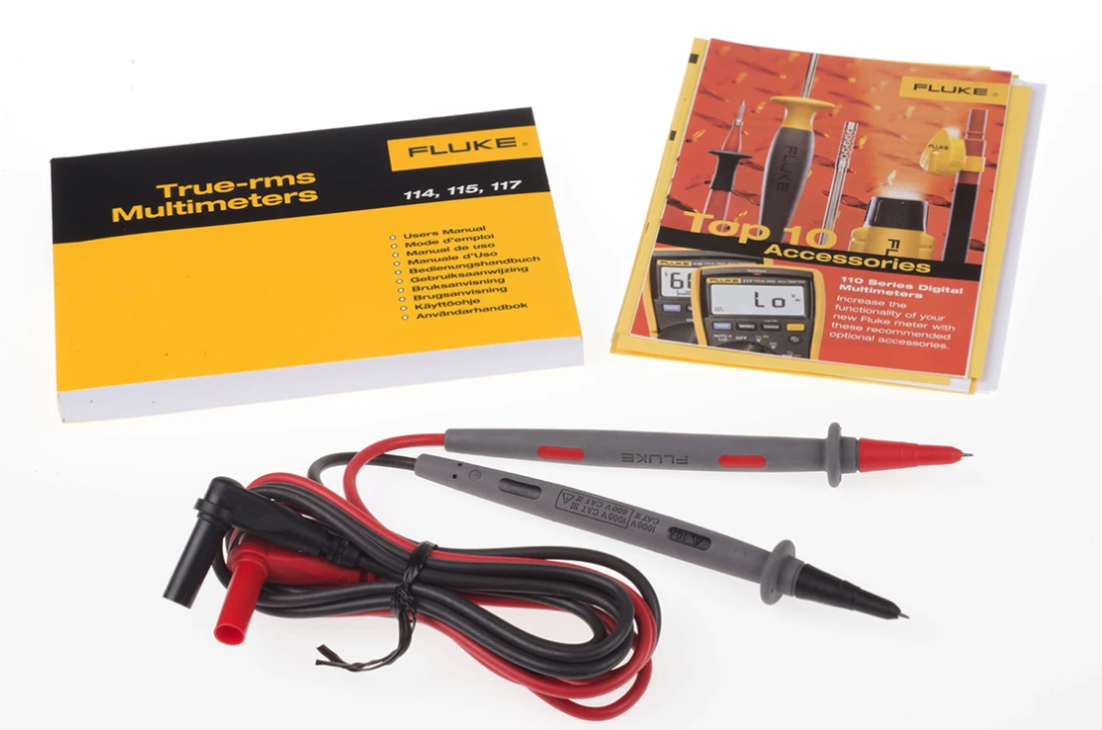

TL75 Test leads, holster, user's manual and 9V battery (installed).

FLUKE Multimeter, Battery Powered, Backlit LCD Display - FLUKE 117 EUR

Take the strain out of electrical testing with this multimeter from FLUKE. For easy use, a rotary dial switches quickly between resistance, continuity, frequency and capacitance functions. An Auto-V setting automatically distinguishes between AC or DC voltage to display the correct information for you. Large black digits and a backlit LED screen mean you won't mistake those crucial numbers. The instrument's ergonomic design allows you to comfortably use it one-handed, but when you need both hands free, simply flip out the stand to prop it up on any flat surface.

Features & Benefits

* 400-hour battery life means minimal disruption
* 600V safety voltage for use on branch and feeder circuits
* True-RMS technology gives you precise measurements
* Minimum, maximum and average readings to record signal fluctuations

Applications

* Electrical wiring installations
* Distribution board maintenance
* Building inspections
* Electronics repair workshops

What is the LoZ function for?

The LoZ function on this multimeter gives a low impedance input to any circuit you're testing. This stops ghost voltages from producing false readings when two circuits are wired close together.

What's the VoltAlert function for?

For safety, the VoltAlert technology detects voltages near the instrument. This means you can quickly check whether there's power to cabinets or wiring before you start work.

MPN: FLUKE 117 EUR
