Flexible Rising Main FLEXIBORE 150

If It Is a Bore Think FLEXIBORE

Bore water is an important source of agricultural, industrial and mining water supply. Bore water retrieval has been a difficult task over the years and has only been simplified with the current hose technology. The revolutionary of flexibore hose ensures simple and effective bore water retrieval, mine de-watering and municipal water supply. Flexibore is a flexible riser used for ground water pumping. This hose is constructed by integrating thermoplastic polyurethane into a woven textile fabric of high tenacity polyester. The heavy duty internal fabric gives the hose flexibility whilst sustaining the weight of a submersible pump. The Flexibore hose holds both the pump and water weight so no safety cable is required. This flexible yet resilient layflat hose is designed to replace rigid riser pipes such as Poly and PVC which are subject to encrustations resulting in reduced flow rates. Poly pipe can be difficult to remove when the pump requires servicing. However is very easy to lift using Flexibore when the pump needs to be retrieved from the bore for servicing. In additional, it does not required safety cable when using Flexibore due to its high tensile strength. Flexibore hose is totally corrosion and microbiological damage resistant and will simplify your bore water pumping, Flexibore hose is designed for easily transportable and can be installed at a much faster rate than rigid systems and provide multiple advantages to pump retrieval. This hose is proudly made in Australia and back up with 5 years manufacture warranty.

Fittings are not included with the hoses. Fittings to be purchased separately.

Flexibore 150 Compatibility

Flexibore will suit many borehole applications and is compatible with most submersible pumps. The sizes range from 200mm to 250mm internal diameter and depths up to 250 metres.

Easy Installation

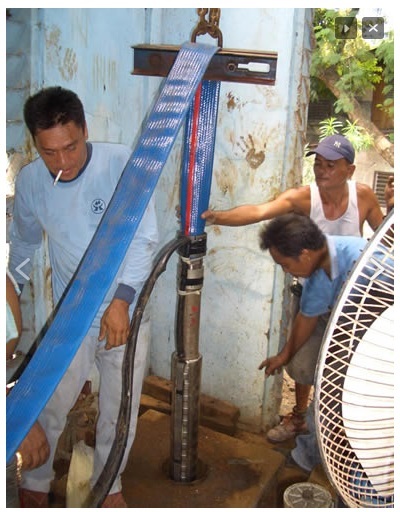

Once in the field, Flexibore is attached to the pump with the patented couplings. The pump, with hose and cables attached, is lowered into the bore using either a simple rolling wheel or a crane. Flexibore is manufactured in continuous lengths and can be installed with less time and labour than rigid systems including poly pipe.

Flexibore Advantages

Flexibore hose is designed to save both time and money and to ensure the project is completed to a high standard. Our unique Flexibore has a number of benefits to the user. This include:

Quick and easy hose installation and retrieval
No internal scaling
Corrosion and microbiological damage resistance
Reduced head losses and improved flow rates due to swelling under pressure
Less labour intensive due to ease of installation
Reduced transport cost due to light weight easily handing
Custom lengths made to order
Potable water approved: AS 4020
Hydrostatically tested
Simple maintenance due to iron bacteria resistance
Long service life
No safety cable required.

Flexibore Applications

Mine de-watering
Domestic and municipal water supply
Test pumping
Rural and industrial bore water retrieval
Similar ground water projects

Potable Water Approved

Another major benefit of using Flexibore bore hose is that the hose is potable water approved. Extensive tests have been carried out by the Australian Water Quality Centre and have certified AS4020 approval.

FLEXIBORE-150 SPECS SHEET
SKU	143.333.203	143.333.254
MPN	HFB203XUA	HFB254XUA
Nominal Size (inches)	8"	10"
Internal Diameter (mm)	203	254
Burst Pressure (bar)	42	42
Max. Recommended Operating Head (m)	150	150
Peak Tensile Load (tonnes)	22	20
Max. Recommended Tensile Load (tonnes)	11	11
Weight of Flexibore (kg/m)	3.4	4.5
Outer Diameter of Coupling (mm)	270	325
Weight of Stainless Steel Coupling (kg)	41	45
Weight of Water at 10% Swell (kg/m)	35.2	56.1
Max. Flow Rate (litres/sec)	148	200
Water pH	3-9
Max. Swell	15%
Average Extension	0.5%
Max. Operating Temperature	60 C
Safety Factor	2:1
