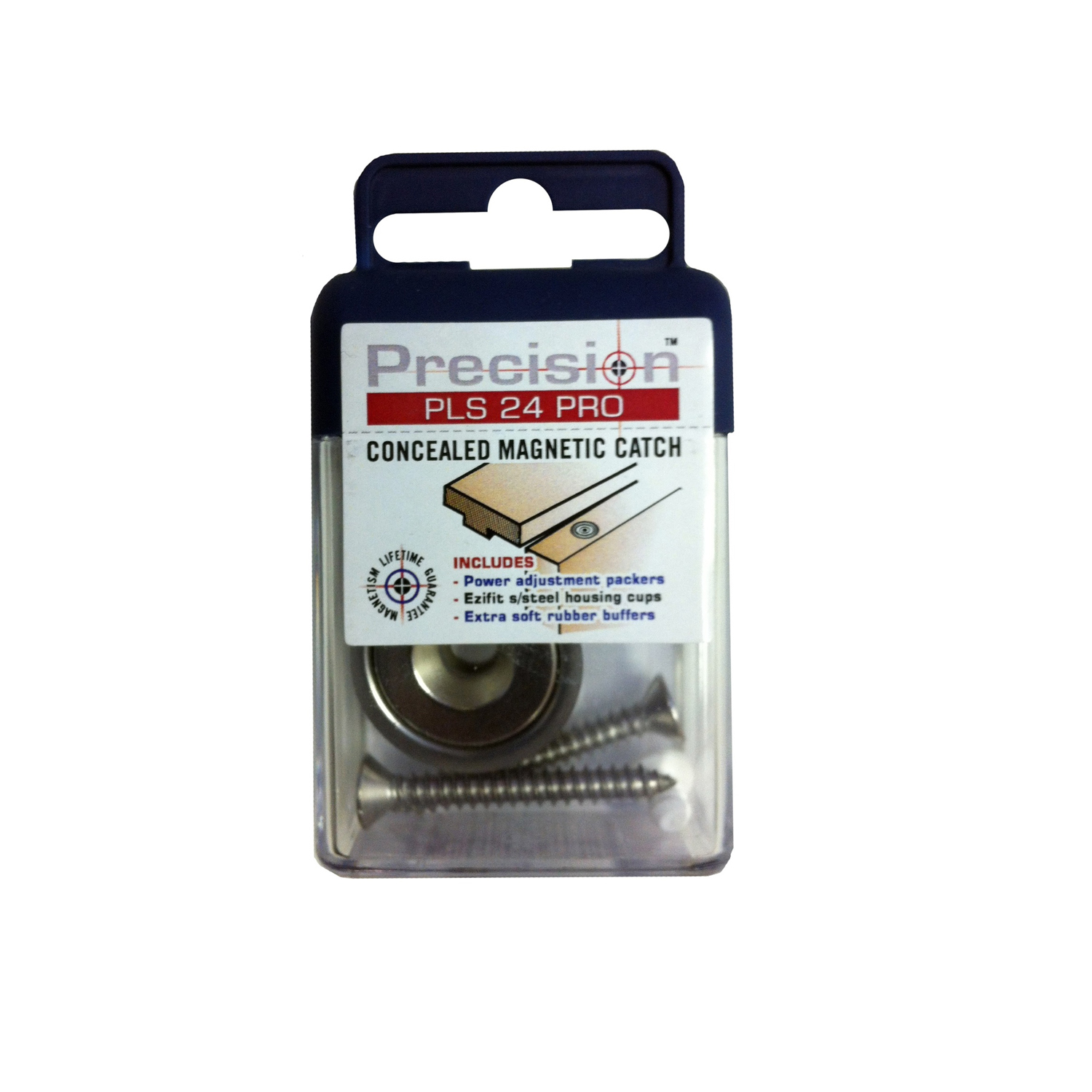

Precision Lock Concealed Magnetic Catch For Timber Door PLS24PRO

Precision Lock Concealed Magnetic Catch For Timber Doors
PLS24PRO

Magnetic Catch Ideal for keeping cupboards and doors securely closed or as effective and stylish door hold open devices.

Magnetic Catch Function - a latching device that fastens two things together via magnetic attraction. An armature plate and a magnet make up the majority of magnetic catches. On one piece of equipment, the magnet is mounted, and on another, the armature plate.

Features:

• Can be used anywhere a roller/ball catch etc. would normally be fitted.
• As magnets don't touch (after installation)
  • The catch will never wear out!
  • Lifetime guarantee (for magnetism).
  • Can be painted over.
• No latch noice when opening and shutting the door (unlike a roller/ball catch).

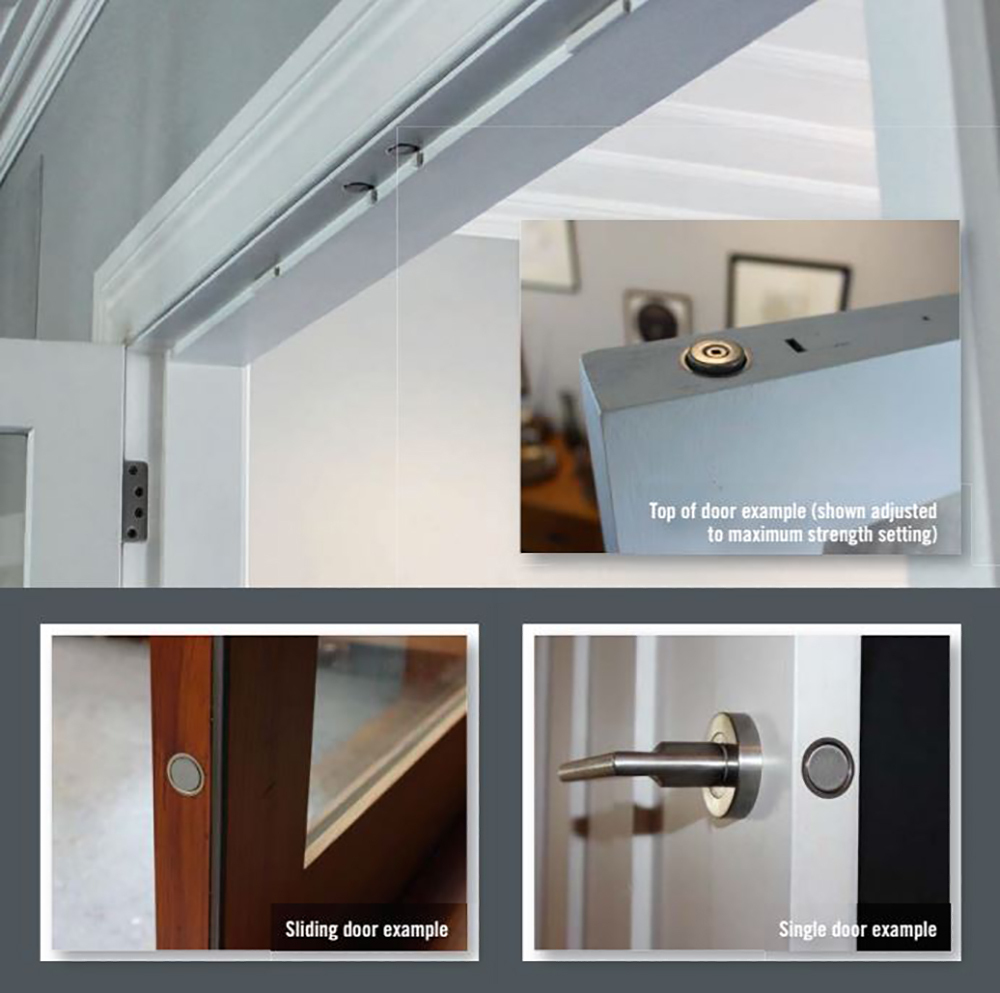

• Conmpletely concealed when door closed. No unsightly protruding strike plate lip (unlike a roller/ball catch).
• Can be used to help keep problem doors shut (eg. with week door closers, electric strikes, week roller mortice locks, double sliding doors).
• Quick an deasy to install. No chiseling required. Ezifit stainless steel housing cup automatically sets the magnets perfectly parallel to each other, essential for precise power adjustment.
• Power adjustment packkers. Increase magnetic holding strength by inserting power admustment packers (inside housing, under magnet) as required. Supplied in four sizes; 0.5mm - 3mm thick, for precise power adjustment.
• Self adhesive/magnetic cover plate (Brushed Stainless Steel)
  • Protects magnets from impact damage during installation.
  • Protects magnets from corrosion.
  • Conceals magnet and screw head for a more attractive finish.
• Poron Xrd Foam impact absorption pad
  • Use (especially with double doors) to futher reduce impact noise and bouncing of door on frame when shutting.
  • Low compression set. After impact, foam pad will return to its original thickness indefinately.

Specifications:

• Inner Diameter: 24mm
• Outer Diameter: 29mm
• Finish: Satin Stainless Steel
